NEW GN724.1
Spring Latches, Steel / Stainless Steel, Chamfered Pin, For Welding
Please select desired options to reveal part number, price and availability
Options
Type A - Latch arm position perpendicular to the flange
Type B - Latch arm position parallel to the flange
Identification Number 1 - Chamfer, top
Identification Number 2 - Chamfer, bottom
Identification Number 3 - Chamfer, left
Identification Number 4 - Chamfer, right
Product Description

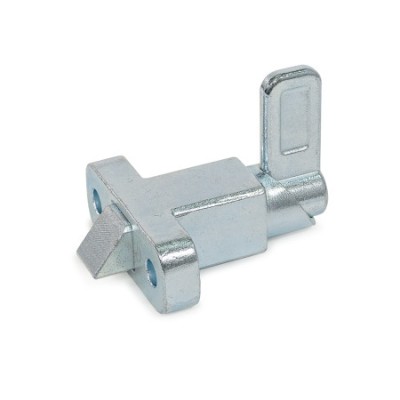

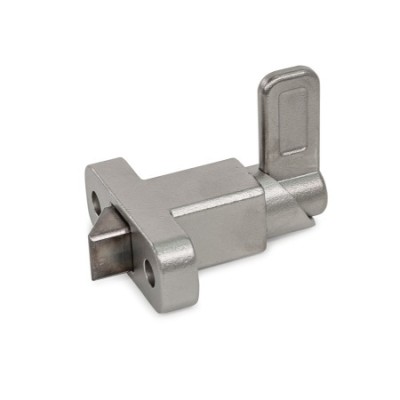

GN724.2 Spring Latches, Steel / Stainless Steel, with Chamfered Pin, with Flange for Surface Mounting
Spring latches GN 724.2 have a plunger pin with square cross-section, a latching surface on one side and a chamfer on the other. When moving in the direction of the chamfered pin, the plunger pin passes over grooves and edges, as the chamfered pin moves the plunger pin into the guide. The plunger pin automatically latches into place when moved toward the latching surface. The latching can be released by pulling the latch arm.
The notch at the upper end of the curve causes the latch to be held in place if the plunger pin needs to be kept temporarily from protruding.
The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling. The latching mechanism is pre-lubricated and can be re-lubricated if necessary.
There are several options for fastening. The hex mounting holes allow the use of socket cap screws ISO 4762 and hex head screws or nuts according to DIN931 or DIN934.
