GN824
Indexing Plungers, With Chamfered Pin, Optional Rest, Stainless Steel
Please select desired options to reveal part number, price and availability
Options
Type C1 - Chamfer, top

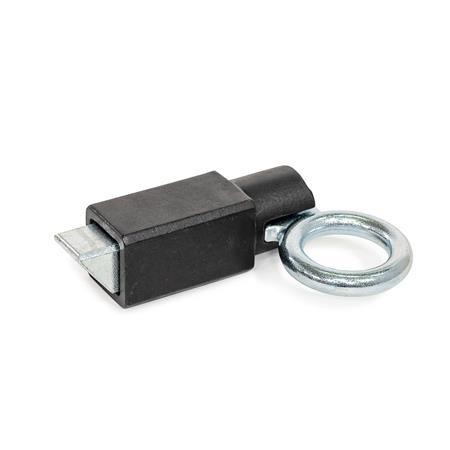

Type C2 - Chamfer, bottom

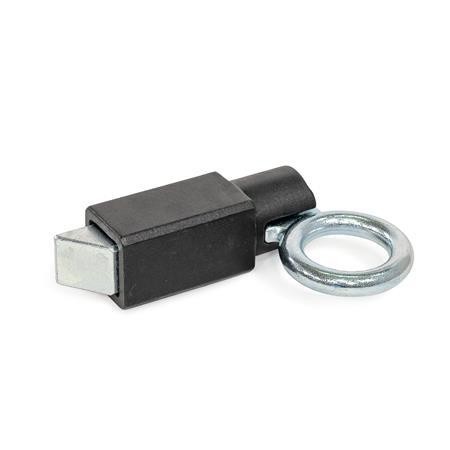

Type C3 - Chamfer, right
Type C4 - Chamfer, left

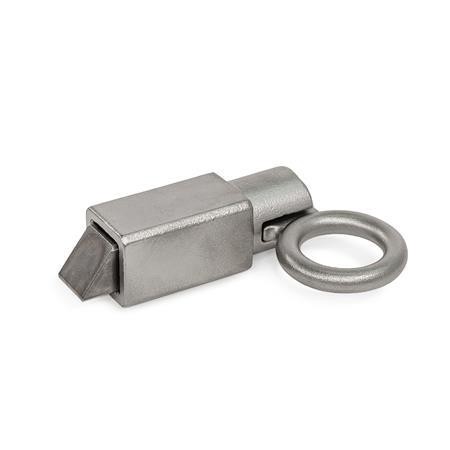

Type CU - Unmounted
Product Description
GN724.4 Indexing Plunger, Steel / Stainless Steel, with Chamfered Pin, for Welding
Indexing plungers GN 724.4 have a plunger pin with square cross-section, a latching surface on one side and a chamfer on the other. When the object to be secured moves towards the chamfer, the plunger pin is pushed back into the guide, allowing grooves and edges to pass over the pin. The plunger pin engages automatically in the direction of the latching surface.
The latching can be released by pulling the pull ring by hand or with a cable or pull rod using a hook. The types with rest position are used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the plunger pin has been retracted. The ring is held in this position by the catch recess at the top of the guide.
The dimensional tolerances between plunger pin and guide are selected so that the functional reliability is guaranteed even after welding, applying a corrosion protection layer or in case of contamination.
For fastening by welding, the unmounted type CU is particularly recommended to avoid changes to the microstructure of the material due to heating of the spring and plunger pin. In this case, the indexing plunger is assembled only after the surface treatment of the welded guide.
