Please select desired options to reveal part number, price and availability
Options

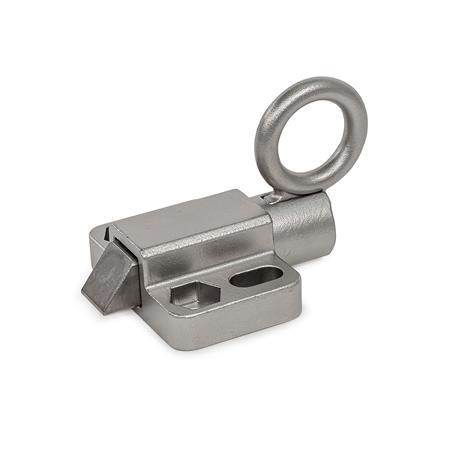

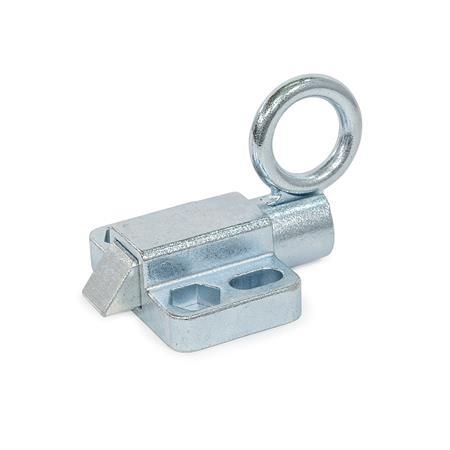

Type C1 - Chamfer, top
Type C2 - Chamfer, bottom
Type C3 - Chamfer, right

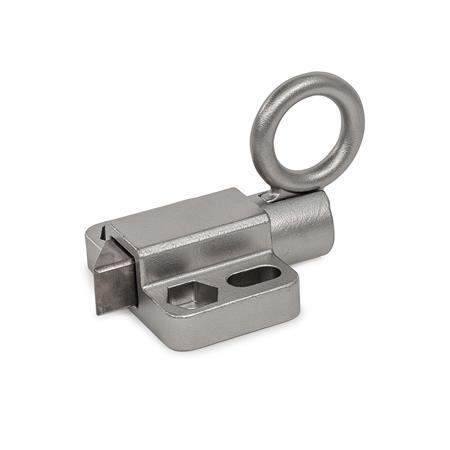

Type C4 - Chamfer, left
Identification number 1 - Without counterpiece

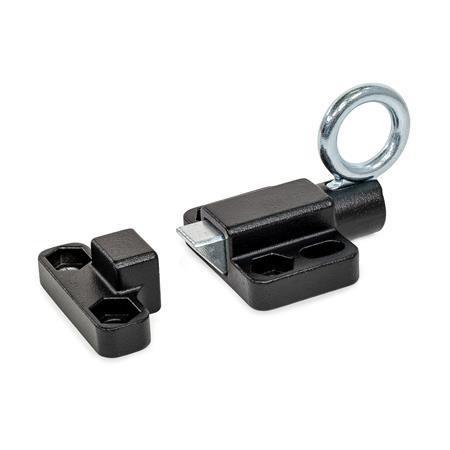

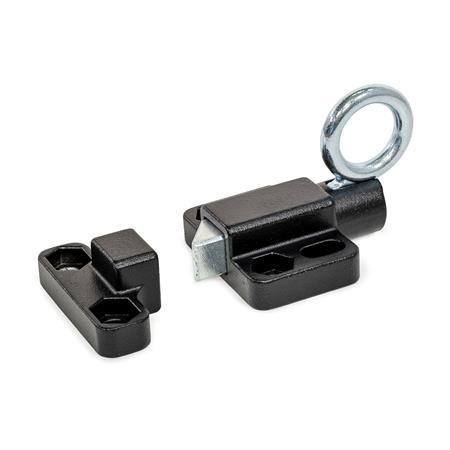

Identification number 2 - With counterpiece
Product Description
GN724.6 Indexing Plunger, Steel / Stainless Steel, with Chamfered Pin, With Flange for Surface Mounting
Indexing plungers GN 724.6 have a plunger pin with square cross-section, a latching surface on one side and a chamfer on the other. When the object to be secured moves towards the chamfer, the plunger pin is pushed back into the guide, allowing grooves and edges to pass over the pin. The plunger pin engages automatically in the direction of the latching surface.
The latching can be released by pulling the pull ring by hand or with a cable or pull rod using a hook. The types with rest position are used when the plunger pin should temporarily not protrude. For this purpose, the pull ring is turned sideways after the plunger pin has been retracted. The ring is held in this position by the catch recess at the top of the guide.
The dimensional tolerances between the pin and the guide have been chosen to ensure functional reliability even in roughly dimensioned applications or in the event of soiling.
For fastening, slotted or hex mounting holes allow the use of socket cap screws DIN912 and hex head screws or nuts according to DIN931 or DIN934.
Specification
CAD Viewer
Technical Data
