Catalogue Technical Specification
Stainless Steel Specification
Hygienic Design Information

CAD Data

GN75.6 Type D 3D CAD Model


GN75.6 Waist Shaped Knobs, Hygienic Design

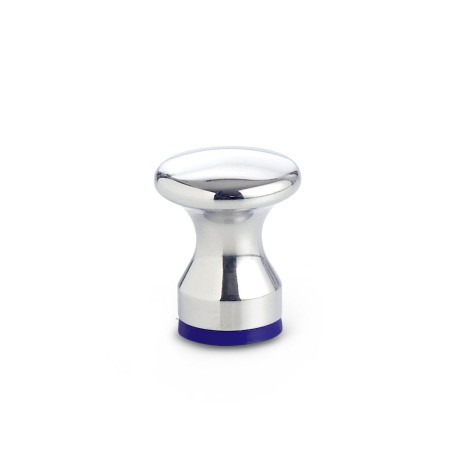

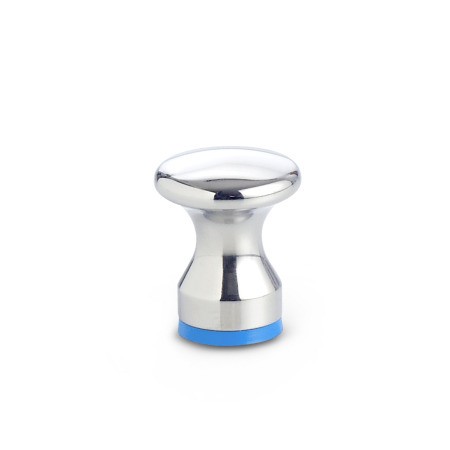

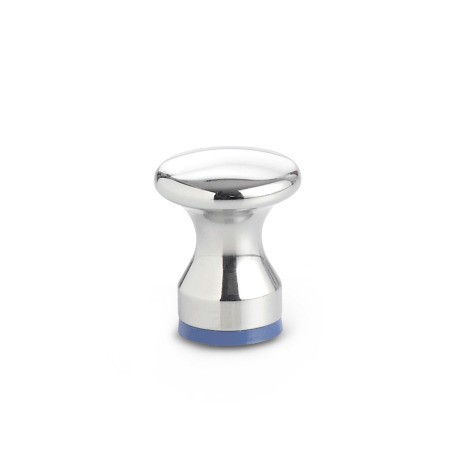

GN75.6: Waist Shaped Knob
Finish: PL - Polished

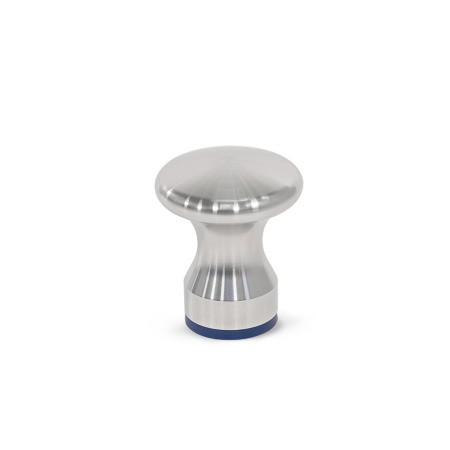

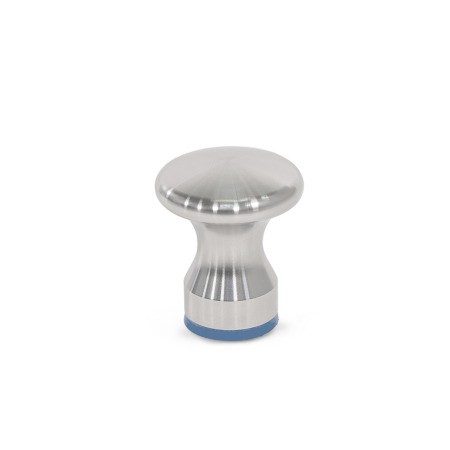

GN75.6: Waist Shaped Knob
Finish: MT - Matt

CAD Viewer Technical Data

Series Selector


Type D - with threaded insert

CAD Viewer Technical Data

Product Description

GN75.6 Waist Shaped Knobs, Hygienic Design

GN 75.6 waist shaped stainless steel knobs are intended for use in hygiene areas. The sealed mounting surface enables mounting without dead spaces and the shape design in combination with the high quality finish prevents the accumulation of dirt and facilitates cleaning. These waist shaped knobs have a compact and timeless design.


Stainless Steel, AISI 316 L, matt (Ra < 0.8 µm) MT. Polished (Ra < 0.8 µm) PL

Sealing ring H - hydrogenated acrylonitrile butadiene rubber (H-NBR), blue, temperature resistant -25 °C to +150 °C, hardness 85±5 Shore A, FDA compliant.
