GN818 Indexing Plunger, Stainless Steel A4, with Rest Position



GN818: Indexing Plunger - Type: CKN -
with Stainless Steel-Knob, with Locknut


GN818: Indexing Plunger - Type: C -
with Plastic-Knob, without Locknut


GN818: Indexing Plunger - Type: CK -
with Plastic-Knob, with Locknut


GN818: Indexing Plunger - Type: CN -
with Stainless Steel-Knob, without Locknut

CAD Viewer Technical Data

Series Selector

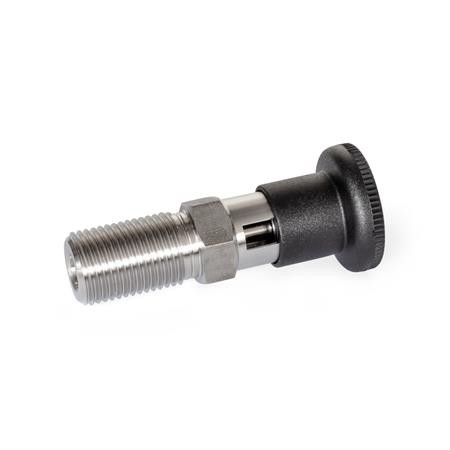

Type C with Plastic-Knob, without locknut

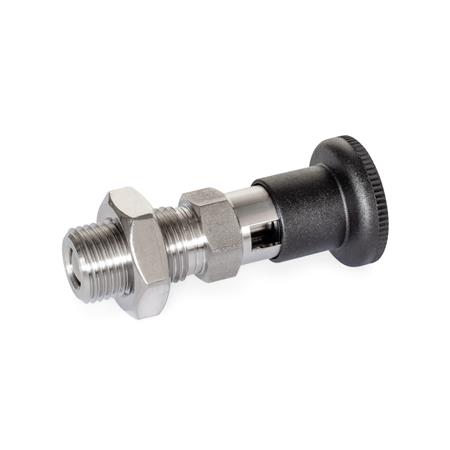

Type CK with Plastic-Knob, with locknut

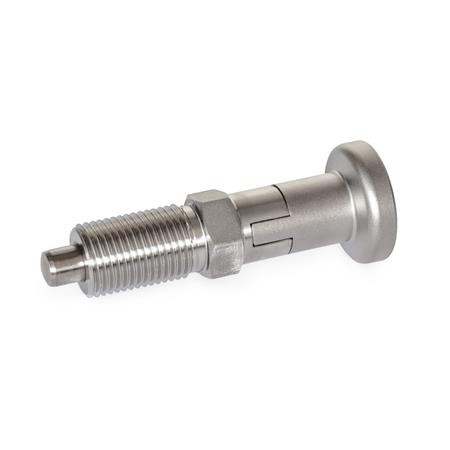

Type C- with Stainless Steel-Knob, without locknut

Type CKN with Stainless Steel-Knob, with locknut


CAD Viewer Technical Data

Product Description

GN818 Indexing plungers, Stainless Steel A4, with Rest Position

Stainless Steel-Indexing plungers GN 818 are set apart by the materials used, allowing these plungers to withstand particularly corrosive environments.

Indexing plungers with a rest position are used for such applications where the plunger has to stay in its retracted position. In that case, the knob is retracted and afterwards turned by 90°. A notch keeps the plunger in this position.


Stainless Steel A4 - AISI 316, Plunger pin chemically nickel plated

Knob: Plastic (Type C / CK) Polyamide (PA)black, matte/ Stainless Steel (Type CN / CKN) AISI 316, not removable

Spring - Stainless Steel AISI 316 Ti
