Please select desired options to reveal part number, price and availability
Options
Type MF - U-bar version with two flanged washers.

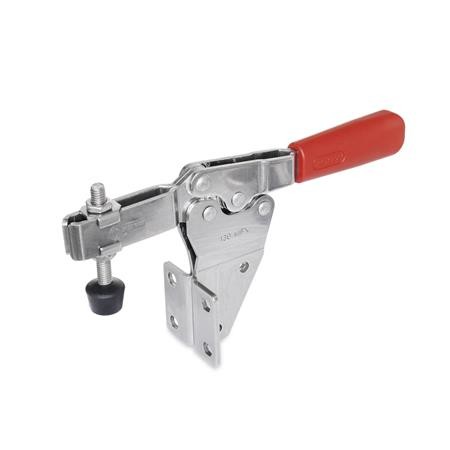

Type MFC - U-bar version, with two flanged washers and GN708.1 Spindle Assembly.
Product Description
GN 820.2 Horizontal Clamp Stainless Steel, Side Mounting
These horizontal acting toggle clamps GN 820.2 work according to the toggle principle: lever and clamping bar move in the opposite direction.
They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position. The 90° rotated mounting surface allows a space-saving installation in addition to the clamping point. They are designed to ensure that, when opening, the operators fingers are not trapped between the clamping lever and the clamping arm (safety distance).
Being made of stainless steel, these clamps are suitable for use in a clean room environment, such as found in the food and pharmaceutical industries and their associated processing and packaging.
Horizontal acting toggle clamps in the U-bar version with two flanged washers (Type MF) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type MFC (GN708.1).
Compatible with GN708.1 clamping bolt, with rubber tip.
Specification
Stainless Steel NI AISI 304
All moving parts - lubricated with special grease
Hand grip - High quality, oil resistant, red plastic
Spindle assembly GN708.1, type A Stainless Steel NI AISI 304, Rubber tip 85 Shore A
Also available as GN820.2 steel.
