GN820 Horizontal Clamps with Horizontal Base operators fingers retracting clamping arm

Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN820 Horizontal Clamp, Steel, Zinc Plated, Horizontal Base

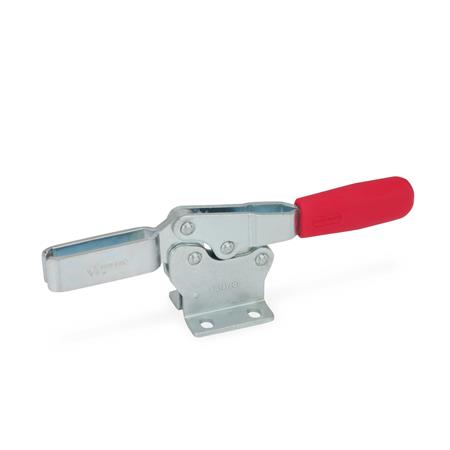

Type M - forked clamping arm

Type O - solid clamping arm

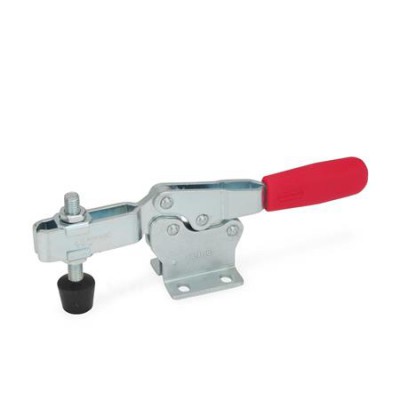

Type MCU-bar version, with two flanged washers and GN708.1 Spindle Assembly

Select Values to Buy:

Tech Spec:



GN820 Horizontal Clamp, Steel, Zinc Plated, Horizontal Base

These horizontal acting toggle clamps work according to the toggle principle: the lever and clamping bar move in the opposite direction.

They require less space for the clamping action. In the clamped position the operating lever is in its horizontal position.

A special feature for this horizontal clamp is its low profile in clamping position. They are designed in such a way to avoid the operator's fingers being caught between the retracting clamping arm and the operating handle (safety distance).

Horizontal acting toggle clamps in the U bar version with two flanged washers (Type M) can accommodate an application specific clamping screw. A spindle assembly with neoprene rubber tip is also included for Type MC (GN708.1).

Type O can either be utilized by welding the clasp which can then accommodate an application specific hold-down fastener component, or by utilizing the bar in conjunction with the GN809 Clamp Mounts to hold the work piece in place.

Stepped side washers and clamping bolt retainers are included.

Compatible with GN708.1 clamping bolt, with rubber tip.

Specification

Parts in sheet metal - Case hardening steel C10, zinc plated, blue passivated.

Bearing pins - tempered

Bearing rivets (from size 355 upwards) - case hardened

All moving parts lubricated with special grease

Solid moulded plastic handle sleeve - red, oil resistant

Also available in stainless steel.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMaterialSizeTypeFH in N
Holding
Capacity
ab1b2b3d1d2h1h2h3h4h5l1l2l3l4l5m1m2m3rs1s2wMass

GN820-25-MC1025M400102424.54.3M44.323127~~694320~~15161624.51.2~~0.025
GN820-75-MC1075M9002028265.5M54.5372011~~1186740~~13.51619432~~0.085
GN820-75-MCC1075MC9002028265.5M54.53720111951186740~4513.51619432~150.1
GN820-75-OC1075O900~2826~M54.5372011~~11867~49.5~13.516194324~0.09
GN820-130-MC10130M10003236406.5M65.55130.516~~1689253~~2622.428.4622.5~~0.201
GN820-130-MCC10130MC10003236406.5M65.55130.51625.5141689253~552622.428.4622.5~17.50.2
GN820-130-OC10130O1000~3640~M65.55130.516~~16892~64~2622.428.4622.55~0.2
GN820-230-MC10230M17003744428.5M86.561.536.518~~19611063.5~~262631.5723~~0.3
GN820-230-MCC10230MC17003744428.5M86.561.536.5183012.519611063.5~68262631.5723~200.35
GN820-230-OC10230O1700~4442~M86.561.536.518~~196110~78~262631.57236~0.34
GN820-355-MC10355M180058605610.4M108.5835022~~27016196~~4138.843108.53.5~~0.7
GN820-355-MCC10355MC180058605610.4M108.58350223723.527016196~774138.843108.53.5~190.75
GN820-355-OC10355O1800~6056~M108.5835022~~270161~115~4138.843108.53.57~0.717
GN820-455-MC10455M320065706512.4M128.598.56026~~309186116~~41.540431264~~1.2
GN820-455-MCC10455MC320065706512.4M128.598.560264327.5309186116~10041.540431264~331.32
GN820-455-OC10455O3200~7065~M128.598.56026~~309186~135~41.54043126410~1.2
