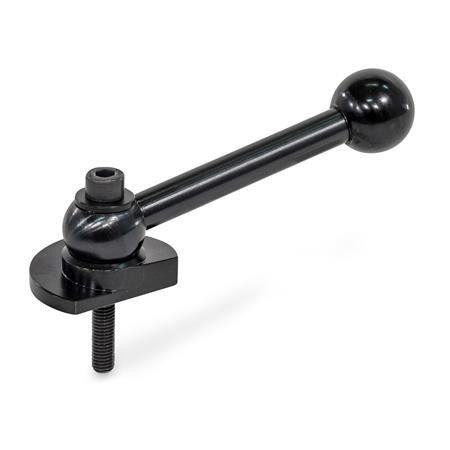

Type KVS - With ball lever, angular serrations.

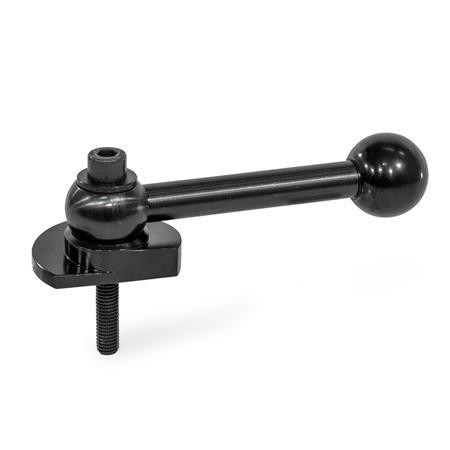

Type GVS - With ball lever, straight serrations.

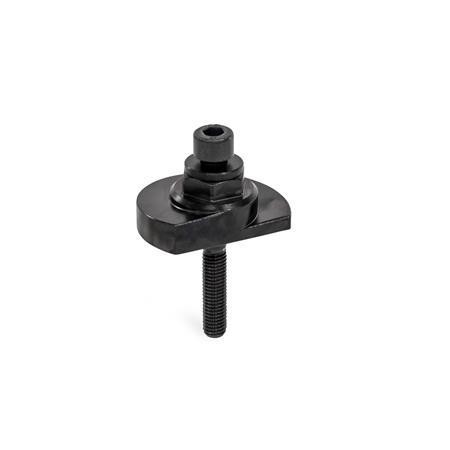

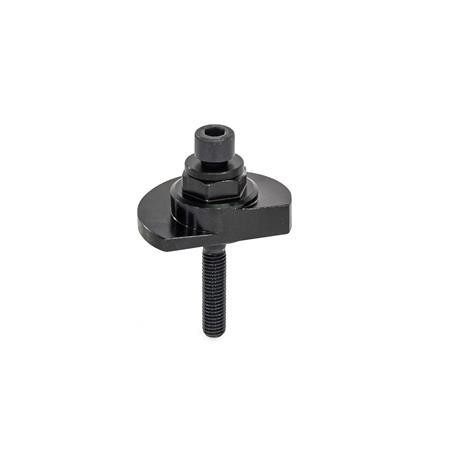

Type SKS - With hexagon.
Clamping direction L - Anti-clockwise rotation.
Clamping direction R - Clockwise rotation (drawn varsion).
Product Description
GN918.1 Clamping Bolt, Upward Clamping, Screw from Operators side, Steel
Clamping bolts GN 918.1 have a circumferential wedge surface. They allow for rapid and secure clamping and releasing with a relatively large clamping range and with high clamping force. Owing to the small pitch angle (wedge angle), the clamping bolt is self-locking.
Fastening via screw from the operator’s side bridges a greater clamping range. A sufficiently large screw-in depth t is necessary to safely absorb the screw forces.
The ball levers of types KVS/GVS form a positive connection with the eccentric cam by means of a serration. During assembly, the lever can thus be fixed in a position favorable for clamping or, in the relaxed position, rotated out of the clamping range.
