GN950.1 Spoked Handwheel With Large Hub, Cast Iron

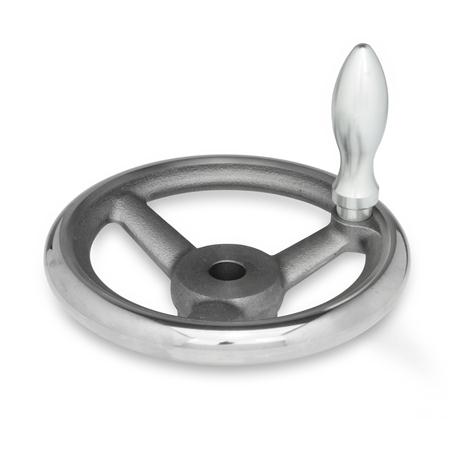

CloseNextPreviousGN950.1: Spoked Handwheel - Bore Code: B
Type: D - with Revolving Handle

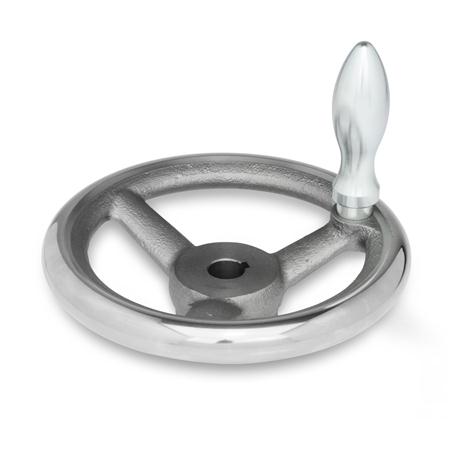

CloseNextPreviousGN950.1: Spoked Handwheel - Bore Code: K
Type: D - with Revolving Handle
Choose your Part
Please select desired options to reveal part number, price and availability
Options

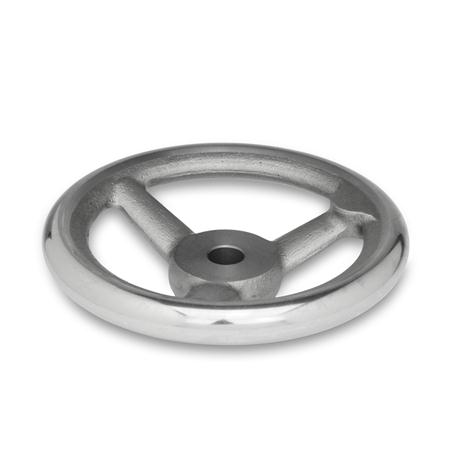

Bore code B - Without keyway

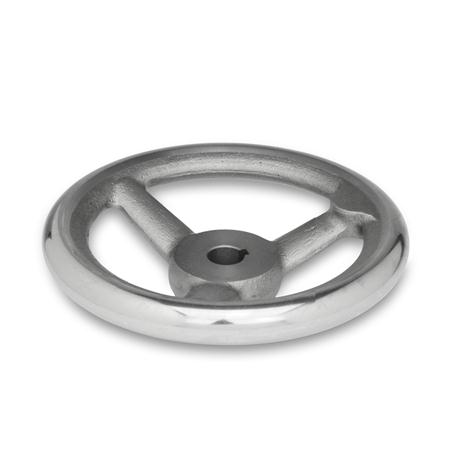

Bore code K - With keyway
Bore code V - Square - On Request
Type A - Without handle.
Type D - With revolving handle DIN98
Product Description
GN950.1 Cast Iron Spoked Handwheel with Large Hub
These GN 950.1 handwheels have a larger hub than usual and are for those applications where the hub on a standard handwheel is too small. They differ from the standard handwheels DIN950 only by the larger hub.
Specification
- Cast iron - Hub machined, Rim tuned and polished, GG.
- Rim - Contentric and square to bore < 0,4
- Revolving handles DIN98.
CAD Viewer
Technical Data
