GN9534 Position Indicators for Configurable Linear Actuators, Mechanical Counter

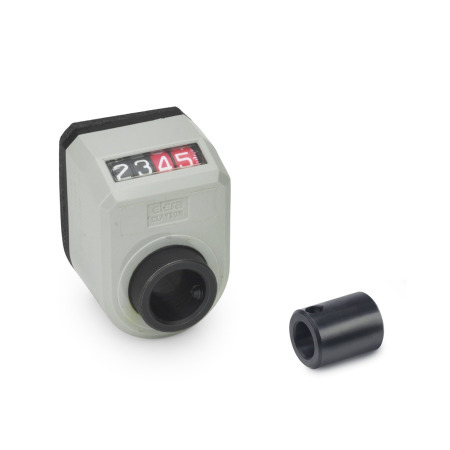

CloseNextPreviousGN9534 Position Indicator For Configurable Linear Actuator
Material ST, Installation AN, Colour GR

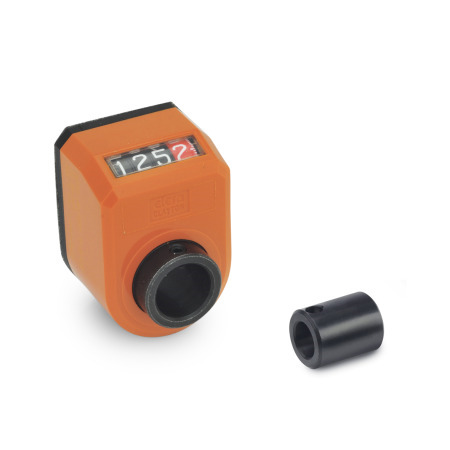

CloseNextPreviousGN9534 Position Indicator For Configurable Linear Actuator
Material ST, Installation AN, Colour OR

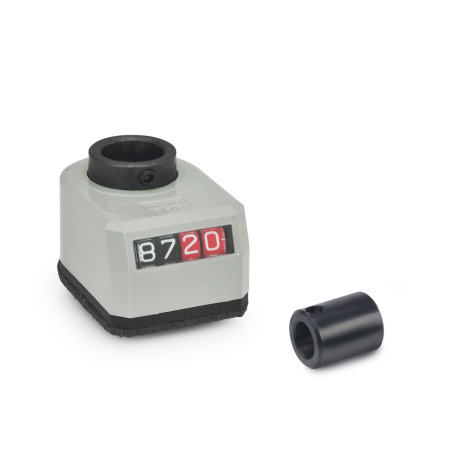

CloseNextPreviousGN9534 Position Indicator For Configurable Linear Actuator
Material ST, Installation AR, Colour GR

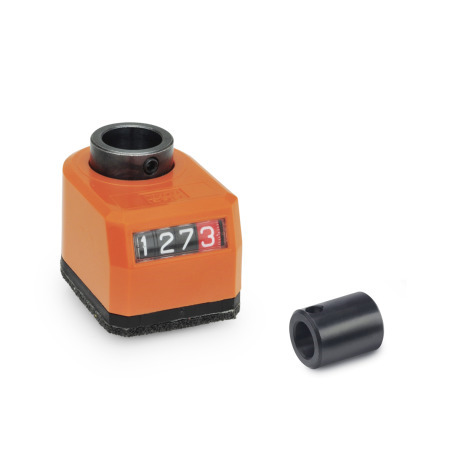

CloseNextPreviousGN9534 Position Indicator For Configurable Linear Actuator
Material ST, Installation AR, Colour OR
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type L - Numbers ascending anti-clockwise
Type R - Numbers ascending clockwise
Installation AN - Counter above, on the chamfer
Installation AR - Counter below, on the chamfer
Product Description
GN9534 Position Indicators for Configurable Linear Actuators, Mechanical Counter
Position indicators GN 9534 are designed for attachment to configurable linear actuators. They are mounted to the spindle stem of the linear actuator using an adapter bushing and a grub screw. The directly driven counter with digital position display must be matched to the pitch of the threaded spindle.
The housing is welded by ultrasound, making it particularly sturdy, tight and compact. The foam rubber seal prevents the transmission of vibration to the counter and acts as a seal.
Specification
Hollow shaft / Adapter bushing. Sealed with an O-ring
- Steel, blackened. ST.
- Stainless steel AISI 304 NI.
Housing, plastic, polyamide (PA), operating temperature 0 to +80.
- Orange, RAL 2004, shiny finish OR,.
- Grey, RAL 7035, shiny finish GR.
Sight glass, plastic, polyamide (PA-T), transparent.
Counter, with additional scale.
- Digits in white
- Pre-decimal positions highlighted black
- Decimal positions highlighted red
Grub screw DIN916
- Steel, blackened for ST
- Stainless steel for NI
