GN9234
GN9234 Disc Handwheel, for Linear Actuators, Aluminium, Powder Coated
Please select desired options to reveal part number, price and availability
Options
Type A - For mechanical position indicators or without position indicator.
Type B - For electronic position indicators
Product Description

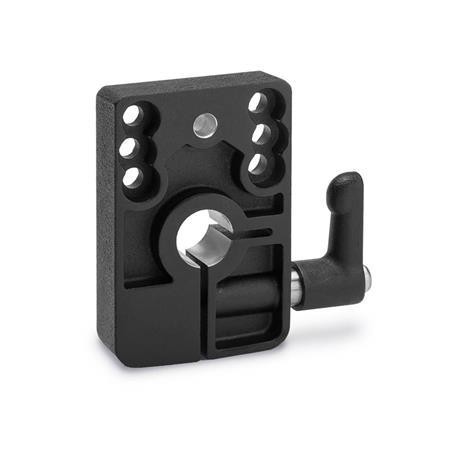

GN9734 Clamping Plates, Zinc Die Cast, for Configurable Linear Actuators
Clamping plates GN 9734 are used to fix the spindles of configurable linear actuators in place after adjustment.
Using a hand lever, the bore diamter of the clamping plate is reduced until the spindle stem of the linear actuator is clamped, preventing unintentional adjustment of the approached position.
The enclosed spiral pin connects the clamping plate to the torque support, preventing it from twisting. If no position indicator is mounted to the linear actuator, as shown in the example, type A is recommended.
