Product Description

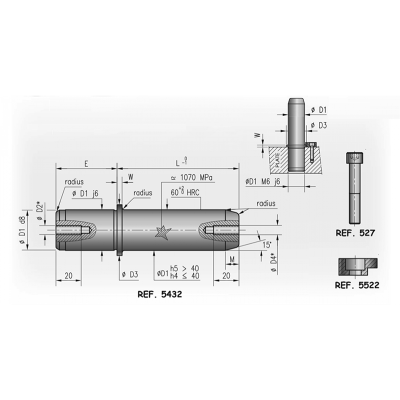

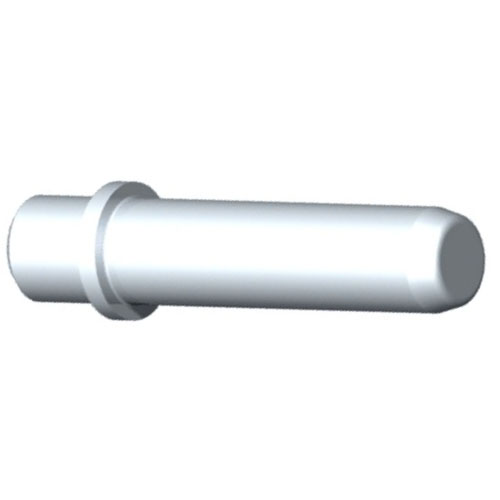

5432 Guide Pillar, Demountable Bottom Retained ISO 9182 Standard

These guide pillars or pins are used in press machinery, for accurate, precise manufacturing. Made to ISO 9182 standards. Demountable for fast efficient changes of use. They are manufactured from top quality steel, for hardwearing qualities and an extended service life. Bottom retained.

5432's guide pillars are sold as assemblies (including clamps 5522 and cap screws)

Specification

Steel
