5725 Guide Pillar, Bottom Retained ISO9182 Standard

Close Next Previous

5725: Guide Pillar

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer

Technical Data

Product Description

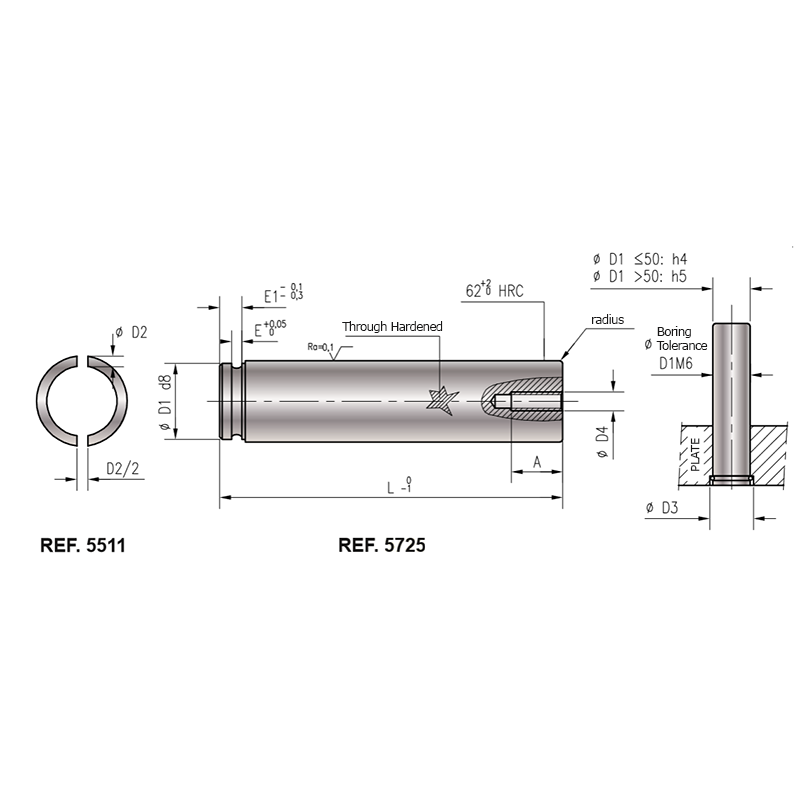

5725 Guide Pillar Bottom Retained ISO 9182 Standard

These guide pillars or pins are used in press machinery, for accurate, precise manufacturing. Made to ISO 9182 standards, and designed to be compatible with our demountable pillar block sets, to facilitate fast changes. The top quality though hardened steel makes them ideal for use with ball bushes as they are extremely hardwearing.

5725 guide pillars are sold as assemblies (including retaining rings)

Specification

Through hardened steel
