GN132.1: Linear Actuator Connector
Bore d₁: B50

Close Next Previous

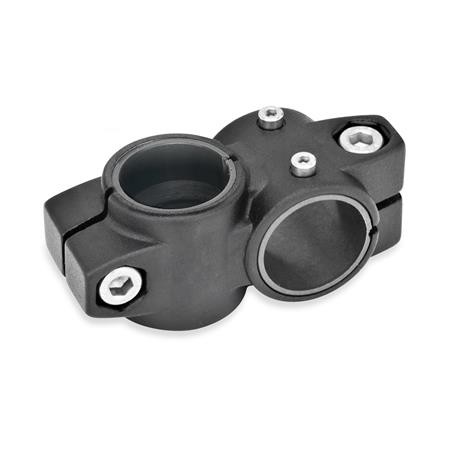

GN132.1: Linear Actuator Connector
Bore d₁: G50

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification No. 2 - with 2 clamping screws DIN912 stainless steel

Product Description

GN132.1 Linear Actuator Connector, Aluminium, for Single Axis System

Two-way linear actuator connectors GN 132.1 are based on two-way connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G are equipped with sleeve bearings.

With the screw locations z, the play of the guide bores d₁ / d₂ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screws can be replaced by the adjustable hand levers GN911 listed in the table as accessory.

Specification

Aluminium, powder coated, black, RAL 9005, textured finish S
Slide Insert - Plastic (PTFE)
Socket cap screws DIN912 - Stainless Steel NI AISI 304
Hexagon nuts DIN985 - Stainless Steel NI AISI 304, self locking via polyamide ring

Accessory

Adjustable Hand Levers GN911

Related Series


GN132.2
Linear Actuator Connector, Aluminium, Two-Way Axis
