Please select desired options to reveal part number, price and availability
Options
Type A - without fixing holes

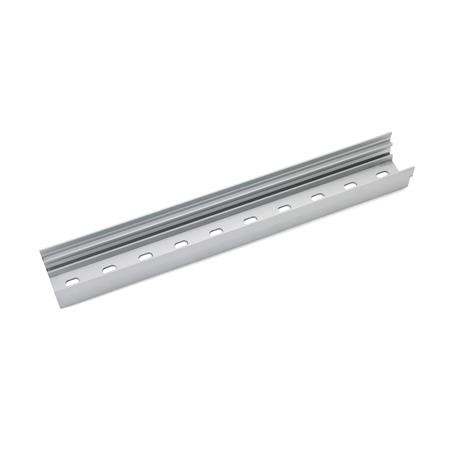

Type B - with fixing holes
Product Description
GN646.3 Carrier Profiles, for Roller and Ball Tracks
Carrier profiles GN 646.3 are the base components for roller and ball tracks. They are the carrier channels for roller tracks GN 646.1 and for ball track GN 646.2 and feature a high degree of stiffness and rigidity.
The carrier profile is designed such that roller and ball tracks and containment edges GN 646.4 can be assembled without mounting hardware.
Using connectors GN 646.6 (Type C), the carrier profiles can be assembled together, to create longer profile extensions.
The standard lengths match the 270 length of the roller and ball tracks. For type B, the position and edge spacing of the hole pattern is not defined.
Specification
Aluminum - anodized, natural color
CAD Viewer
Technical Data
