GN115 Latch, Stainless Steel, A4, with Stainless Steel Operating Elements
CloseNextPreviousGN115 Latches with Operating Elements in A4 Stainless Steel
Type: SKN with Wing Knob
CloseNextPreviousGN115 Latches with Operating Elements in A4 Stainless Steel

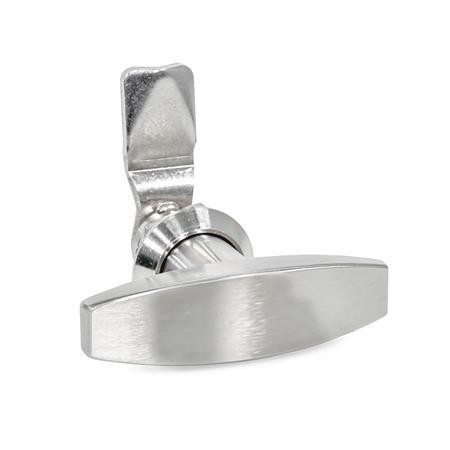

Type: STN with T Handle
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type SKN - Operation with wing knob
Type STN - Operation with T handle
Product Description
GN115 Latch, Stainless Steel, A4, with Stainless Steel Operating Elements
GN 115 Latch Stainless Steel locks by a turning operation, limited to 90°, which moves the locking arm behind the door frame. The bevels of the locking ease the closing of the door. Thanks to the stainless steel material, the latches are optimally suited for use in highly corrosive environments.
Latches with different cranks cover a range A from 6 to 28 mm.
These latch arms for these latches GN115 are supplied loose.
Specification
- Lock housing/Operating elements - Stainless steel AISI 316 A4
- Latch arm - Stainless Steel AISI 316
- Other parts - Stainless Steel AISI 316
- Protection class IP 65
CAD Viewer
Technical Data
