GN7017 Indexing Plungers, With or Without Rest Position, Steel

CloseNextPrevious



CloseNextPrevious

GN7017: Indexing Plunger - Type: B -
without Rest Position, without Locknut



CloseNextPrevious

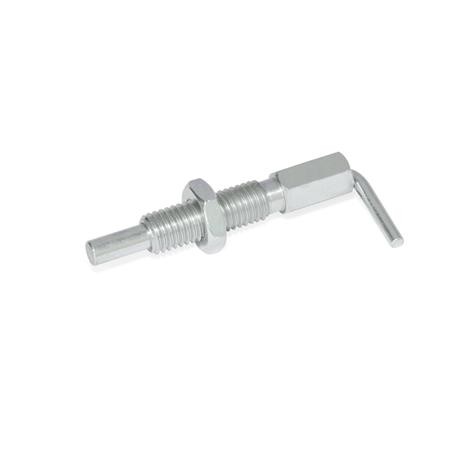

GN7017: Indexing Plunger - Type: BK -
without Rest Position, with Locknut



CloseNextPrevious

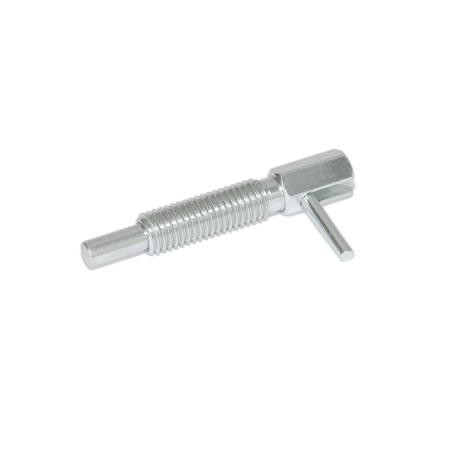

GN7017: Indexing Plunger - Type: C -
with Rest Position, without Locknut



CloseNextPrevious

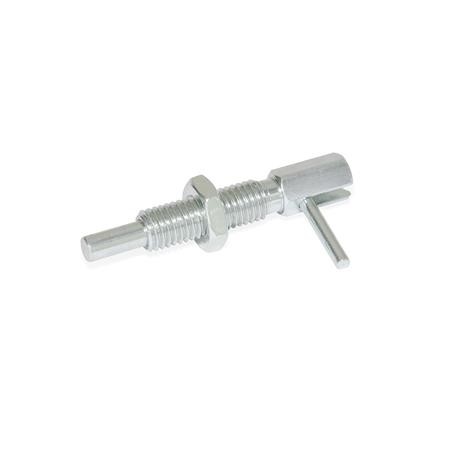

GN7017: Indexing Plunger - Type: CK -
with Rest Position, with Locknut



CAD Viewer Technical Data

Series Selector

Options

Type B - without rest position, without locknut

Type BK - without rest position, with locknut

Type C - with rest position, without lock nut

Type CK - with rest position, with lock nut

CAD Viewer Technical Data

Product Description

GN7017 Indexing Plungers, With or Without Rest Position, Steel

These indexing plungers GN 7017 are activated through a lever and are characterized by small dimensions. These indexing plungers are universally applicable due to their prevention of misalignments and potential positioning errors of the mating indexing bores.

The type C/CK with rest position are used for such applications where the plunger has to stay in its retracted position.

During assembly, the maximum tightening torques shown in the table should not be exceeded when securing the lock nut.

Also available in stainless steel - GN7017

Specification

Steel ST, zinc plated, blue passivated.

Spring - Stainless Steel NI AISI 301
