GN721.6 Stainless Steel Indexing Plungers Cam Action 180 Degree Limit Stop With Lock GN 721.6 GN-721.6 GN - 721.6

Standard Machine Elements > Indexing Plungers, Locking pins & Spring Plungers > Cam Action Indexing Plungers
< Previous Product Next Product >

GN721.6 Stainless Steel Cam Action Indexing Plungers

images/300/GN721.6-Stainless-Steel-Cam-action-indexing-plungers-with-locking-function-drawing_H.png

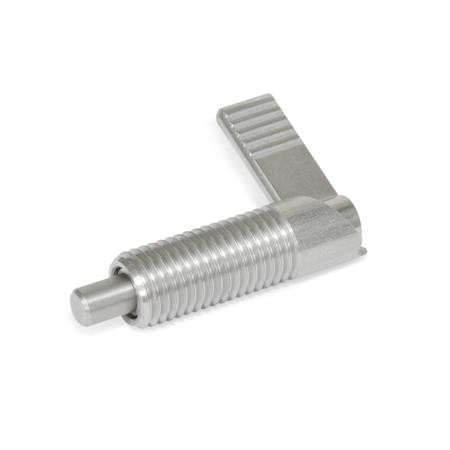

Type RA - Right-hand lock

Type RB - Right-hand lock, with plastic cover

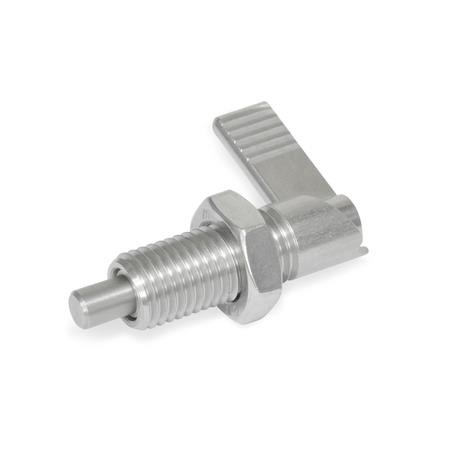

Type RAK - Right-hand lock, with lock nut

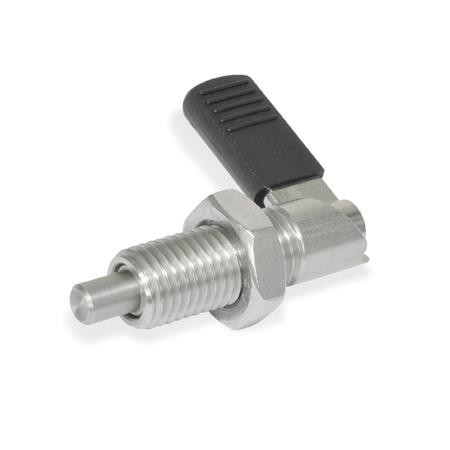

Type RBK - Right-hand lock, with plastic cover, with lock nut

Type LA - Left-hand lock

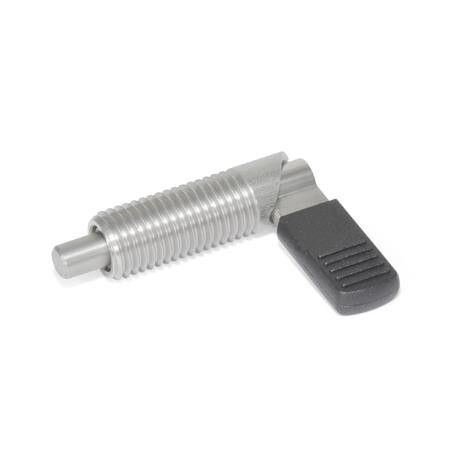

Type LB - Left-hand lock, with plastic cover

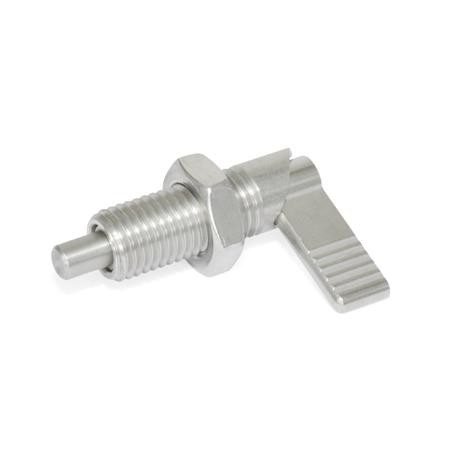

Type LAK - Left-hand lock, with lock nut

Type LBK - Left-hand lock, with plastic cover, with lock nut

Select Values to Buy:

Tech Spec:



GN721.6 Stainless Steel Indexing Plungers, Cam Action, 180 Degree Limit Stop, Without Lock

The groove on GN 721.6 cam action indexing plungers ensures that the locking pin remains in its withdrawn position as required.

When the cam action indexing plungers are positioned symmetrically, the left or right handed types allow for an equal direction setting of the lock.

Stainless steel makes these indexing plungers ideal in clean room situations, such as found in the food, medical and pharmaceutical industries, and also for use in challenging conditions.

Note - size d1 = 5 is only available in types LALAK, RA and RAK

Specification

Stainless Steel AISI 303

Spring - Stainless Steel AISI 301

Plastic cover - Technopolymer (Polyamide PA), black, matt

RoHS Compliant

Select / Deselect Visible Columns
PartCoded1d2Typed3l1l2l3l4l5Spring Load
in N
EndMaterialMass

GN721.6-5-M10X1-RA5M10x110RA37.561921~720NI0.018
GN721.6-5-M10X1-RAK5M10x110RAK37.561921~720NI0.024
GN721.6-5-M10X1-LA5M10x110LA37.561921~720NI0.018
GN721.6-5-M10X1-LAK5M10x110LAK37.561921~720NI0.024
GN721.6-6-M12X1,5-RA6M12x1,512RA478262632921NI0.031
GN721.6-6-M12X1,5-RB6M12x1,512RB478262632921NI0.031
GN721.6-6-M12X1,5-RAK6M12x1,512RAK478262632921NI0.038
GN721.6-6-M12X1,5-RBK6M12x1,512RBK478262632921NI0.039
GN721.6-6-M12X1,5-LA6M12x1,512LA478262632921NI0.031
GN721.6-6-M12X1,5-LB6M12x1,512LB478262632921NI0.031
GN721.6-6-M12X1,5-LAK6M12x1,512LAK478262632921NI0.038
GN721.6-6-M12X1,5-LBK6M12x1,512LBK478262632921NI0.039
GN721.6-8-M16X1,5-RA8M16x1,516RA56103032421232NI0.065
GN721.6-8-M16X1,5-RB8M16x1,516RB56103032421232NI0.068
GN721.6-8-M16X1,5-RAK8M16x1,516RAK56103032421232NI0.083
GN721.6-8-M16X1,5-RBK8M16x1,516RBK56103032421232NI0.085
GN721.6-8-M16X1,5-LA8M16x1,516LA56103032421232NI0.066
GN721.6-8-M16X1,5-LB8M16x1,516LB56103032421232NI0.068
GN721.6-8-M16X1,5-LAK8M16x1,516LAK56103032421232NI0.083
GN721.6-8-M16X1,5-LBK8M16x1,516LBK56103032421232NI0.085
GN721.6-10-M20X1,5-RA10M20x1,520RA69123737522158NI0.13
GN721.6-10-M20X1,5-RB10M20x1,520RB69123737522158NI0.133
GN721.6-10-M20X1,5-RAK10M20x1,520RAK69123737522158NI0.162
GN721.6-10-M20X1,5-RBK10M20x1,520RBK69123737522158NI0.165
GN721.6-10-M20X1,5-LA10M20x1,520LA69123737522158NI0.129
GN721.6-10-M20X1,5-LB10M20x1,520LB69123737522158NI0.133
GN721.6-10-M20X1,5-LAK10M20x1,520LAK69123737522158NI0.162
GN721.6-10-M20X1,5-LBK10M20x1,520LBK69123737522158NI0.165
