GN721 Cam Action Indexing Plungers, 180° Limit Stop, Without Lock

images/300/GN721-Cam-action-indexing-plungers-Steel-without-locking-function-drawing_H.png

Type RA - Right-hand lock

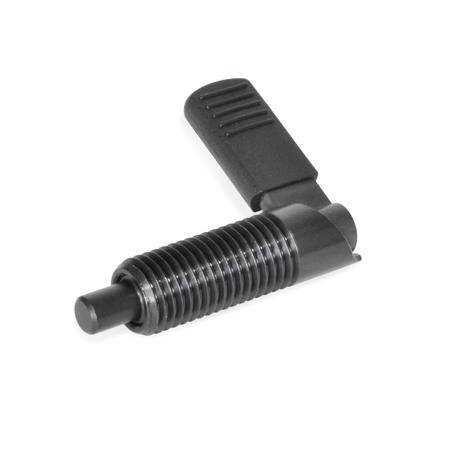

Type RB - Right-hand lock, with plastic cover

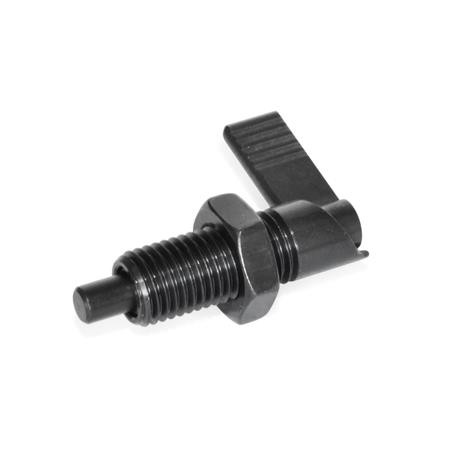

Type RAK - Right-hand lock, with lock nut

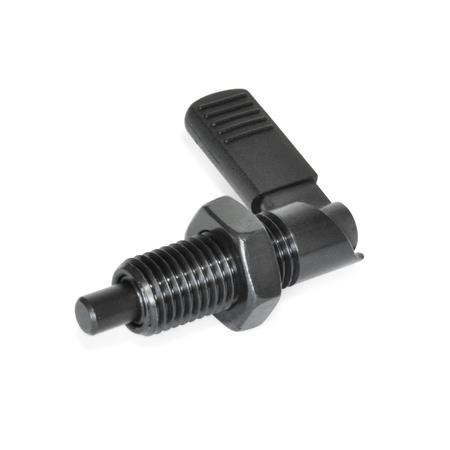

Type RBK - Right-hand lock, with plastic cover, with lock nut

Type LA - Left-hand lock

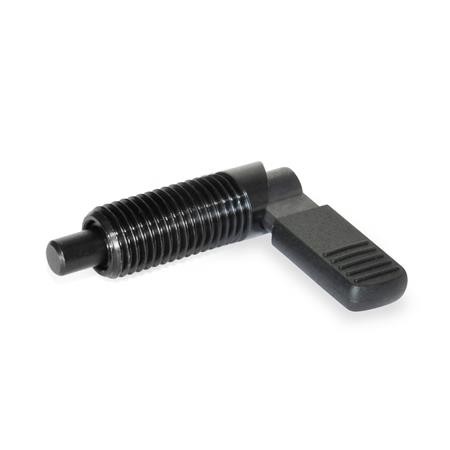

Type LB - Left-hand lock, with plastic cover

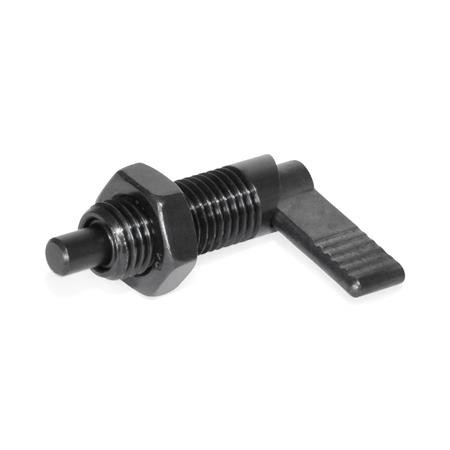

Type LAK - Left-hand lock, with lock nut

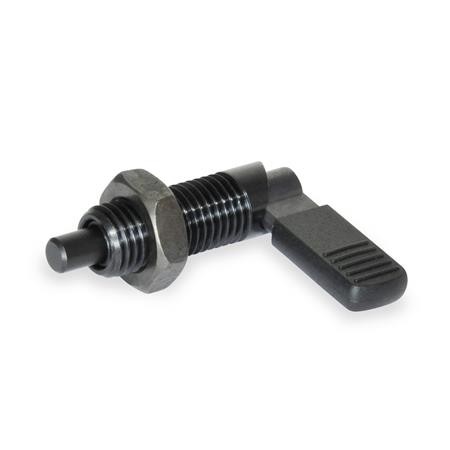

Type LBK - Left-hand lock, with plastic cover, with lock nut

Select Values to Buy:

Tech Spec:



GN721 Cam Action Indexing Plungers, 180° Limit Stop, Without Lock

The indexing pin of these cam action indexing plungers, GN 721, is withdrawn by turning the lock by 180°.

When the cam action indexing plungers are positioned correctly, the left or right handed types allow for an equal direction setting of the lock.

Note - Size d1 = 5 is only available in types LA, LAK, RA and RAK

Specification

Steel, blackened

Plunger - nitrided

Spring - Stainless Steel AISI 301

Plastic cover - Technopolymer (Polyamide PA), black, matt.

RoHS Compliant

Select / Deselect Visible Columns
PartCoded1d2Typed3l1l2l3l4l5Spring Load
in N
EndMaterial Mass

GN721-5-M10X1-RA5M10x1RA1037.561921~720ST0.018
GN721-5-M10X1-RAK5M10x1RAK1037.561921~720ST0.023
GN721-5-M10X1-LA5M10x1LA1037.561921~720ST0.018
GN721-5-M10X1-LAK5M10x1LAK1037.561921~720ST0.023
GN721-6-M12X1,5-RA6M12x1,5RA12478262632921ST0.03
GN721-6-M12X1,5-RB6M12x1,5RB12478262632921ST0.031
GN721-6-M12X1,5-RAK6M12x1,5RAK12478262632921ST0.038
GN721-6-M12X1,5-RBK6M12x1,5RBK12478262632921ST0.039
GN721-6-M12X1,5-LA6M12x1,5LA12478262632921ST0.031
GN721-6-M12X1,5-LB6M12x1,5LB12478262632921ST0.03
GN721-6-M12X1,5-LAK6M12x1,5LAK12478262632921ST0.038
GN721-6-M12X1,5-LBK6M12x1,5LBK12478262632921ST0.039
GN721-8-M16X1,5-RA8M16x1,5RA1656103032421232ST0.064
GN721-8-M16X1,5-RB8M16x1,5RB1656103032421232ST0.066
GN721-8-M16X1,5-RAK8M16x1,5RAK1656103032421232ST0.081
GN721-8-M16X1,5-RBK8M16x1,5RBK1656103032421232ST0.083
GN721-8-M16X1,5-LA8M16x1,5LA1656103032421232ST0.065
GN721-8-M16X1,5-LB8M16x1,5LB1656103032421232ST0.067
GN721-8-M16X1,5-LAK8M16x1,5LAK1656103032421232ST0.082
GN721-8-M16X1,5-LBK8M16x1,5LBK1656103032421232ST0.084
GN721-10-M20X1,5-RA10M20x1,5RA2069123737522158ST0.129
GN721-10-M20X1,5-RB10M20x1,5RB2069123737522158ST0.133
GN721-10-M20X1,5-RAK10M20x1,5RAK2069123737522158ST0.162
GN721-10-M20X1,5-RBK10M20x1,5RBK2069123737522158ST0.167
GN721-10-M20X1,5-LA10M20x1,5LA2069123737522158ST0.13
GN721-10-M20X1,5-LB10M20x1,5LB2069123737522158ST0.133
GN721-10-M20X1,5-LAK10M20x1,5LAK2069123737522158ST0.163
GN721-10-M20X1,5-LBK10M20x1,5LBK2069123737522158ST0.166
