GN676.1 Push Pull Knobs Steel Knurling thumb grip concave top push-pull

Standard Parts for Clamping & Operating & Machine Fixtures > Knobs & Handles > Knobs
< Previous Product Next Product >

GN676.1 Push Pull Knob, Concave Top, Steel, With or Without Knurling

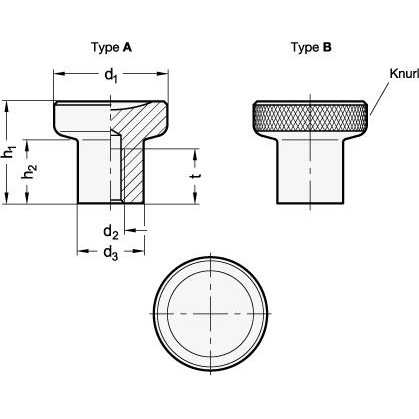

Type A - without knurling

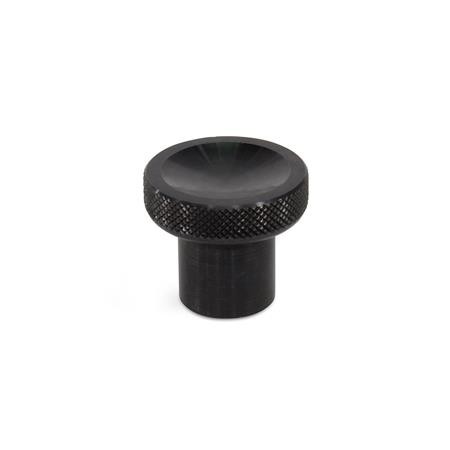

Type B - with knurling

Select Values to Buy:

Tech Spec:



GN676.1 Push Pull Knob, Concave Top, Steel, With or Without Knurling

These push/pull knobs are used in applications where a push or pull movement is required. Their concave top gives a more comfortable thumb grip, and knurling makes the grip more secure.

The knurled model (Type B) can be used as an attractively shaped knurled knob with a threaded blind hole.

Specification

Steel, blackened

RoHS compliant

Select / Deselect Visible Columns
PartCoded1d2Typed3h1h2tMaterialMass

GN676.1-21-M4-A21M4A12.51810.510ST0.026
GN676.1-21-M4-B21M4B12.51810.510ST0.02
GN676.1-21-M5-A21M5A12.51810.510ST0.026
GN676.1-21-M5-B21M5B12.51810.510ST0.026
GN676.1-25-M6-A25M6A14.522.51412ST0.042
GN676.1-25-M6-B25M6B14.522.51412ST0.04
GN676.1-25-M8-A25M8A14.522.51412ST0.042
GN676.1-25-M8-B25M8B14.522.51412ST0.04
GN676.1-31-M8-A31M8A18.5271715ST0.075
GN676.1-31-M8-B31M8B18.5271715ST0.075
GN676.1-31-M10-A31M10A18.5271717ST0.075
GN676.1-31-M10-B31M10B18.5271717ST0.075
