GN676.5 Push Pull Knobs Stainless Knurling comfortable thumb grip concave top

All Stainless Steel Products
Standard Parts for Clamping & Operating & Machine Fixtures > Knobs & Handles > Knobs
< Previous Product Next Product >

GN676.5 Push Pull Knob, Concave Top, Stainless Steel, Knurled or Plain






Type A - without knurling

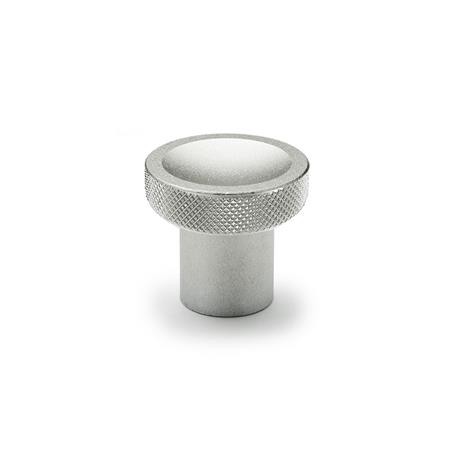

Type B - with knurling

Select Values to Buy:

Tech Spec:



GN676.5 Push Pull Knob, Concave Top, Stainless Steel, Knurled or Plain

These push/pull knobs are used in applications where a push or pull movement is required. Their concave top gives a more comfortable thumb grip and knurling makes this grip more secure. Being made of stainless steel, they are ideal in clean room environments, such as found in the food, medical and pharmaceutical industries, and there associated processing and packaging.

The knurled model (Type B) can be used as an attractively shaped knurled knob with a threaded blind hole.

Specification

Stainless Steel, AISI 303, matt, shot-blasted.

RoHS compliant

Select / Deselect Visible Columns

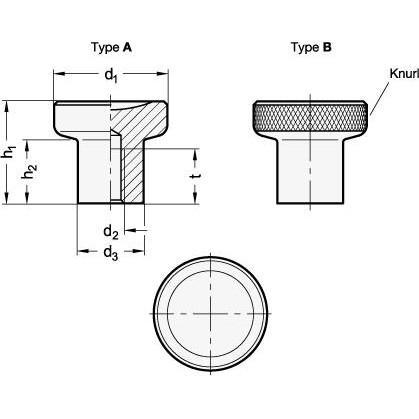

PartCoded1d2Typed3h1h2tMaterialMass

GN676.5-21-M4-A21M4A12.51810.510NI0.026
GN676.5-21-M4-B21M4B12.51810.510NI0.026
GN676.5-21-M5-A21M5A12.51810.510NI0.028
GN676.5-21-M5-B21M5B12.51810.510NI0.02
GN676.5-25-M6-A25M6A14.522.51412NI0.042
GN676.5-25-M6-B25M6B14.522.51412NI0.04
GN676.5-25-M8-A25M8A14.522.51412NI0.042
GN676.5-25-M8-B25M8B14.522.51412NI0.042
GN676.5-31-M8-A31M8A18.5271715NI0.08
GN676.5-31-M8-B31M8B18.5271715NI0.079
GN676.5-31-M10-A31M10A18.5271717NI0.075
GN676.5-31-M10-B31M10B18.5271717NI0.075
