GN798 Revolving Handle, Plastic or Aluminium, Steel Spindle



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

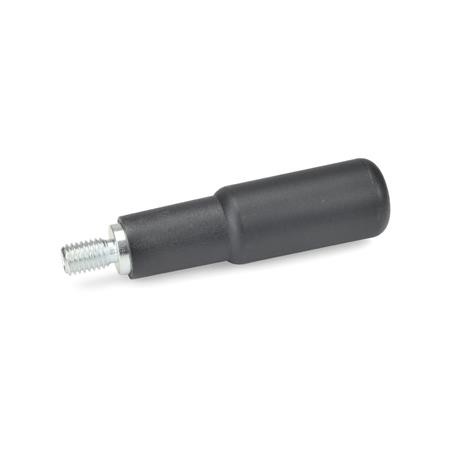

GN798 Revolving Handle, Plastic or Aluminium, Steel Spindle.

These revolving handles have a stepped shape consisting of two cylinders which gives the operator a better grip.

Specification

Plastic, Technopolymer (Polyamide PA) KT, temperature resistant up to 90°C, black, matt finish.

Aluminium AL, polished.

Spindle - Steel, zinc plated, blue passivated.

Plastic variant also available with stainless steel spindle GN798.1.

Select / Deselect Visible Columns
PartCodeMateriald1d2d3d4l1l2l3l4Mass

GN798-AL-16-M6AL16M6101341.5122.5150.04
GN798-KT-16-M6KT16M6101341.5122.5150.02
GN798-AL-18-M6AL18M61014.556132.5190.05
GN798-KT-18-M6KT18M61014.556132.5190.033
GN798-AL-18-M8AL18M81014.556132.5190.04
GN798-KT-18-M8KT18M81014.556132.5190.037
GN798-AL-22-M6AL22M61418.559142.5210.1
GN798-KT-22-M6KT22M61418.559142.5210.08
GN798-AL-22-M8AL22M81418.559142.5210.101
GN798-KT-22-M8KT22M81418.559142.5210.082
GN798-AL-22-M10AL22M101418.559142.5210.103
GN798-KT-22-M10KT22M101418.559142.5210.085
GN798-AL-24-M8AL24M81418.574162.5270.12
GN798-KT-24-M8KT24M81418.574162.5270.094
GN798-AL-24-M10AL24M101418.574162.5270.115
GN798-KT-24-M10KT24M101418.574162.5270.09
GN798-AL-25-M10AL25M10162084162.5300.15
GN798-KT-25-M10KT25M10162084162.5300.13
