GN17
Leveling Feet Stainless Steel AISI 304, FDA compliant
Please select desired options to reveal part number, price and availability
Options
Type C3 - Polished, rubber vulcanized, black
Version S - Without nut, external hex at the bottom

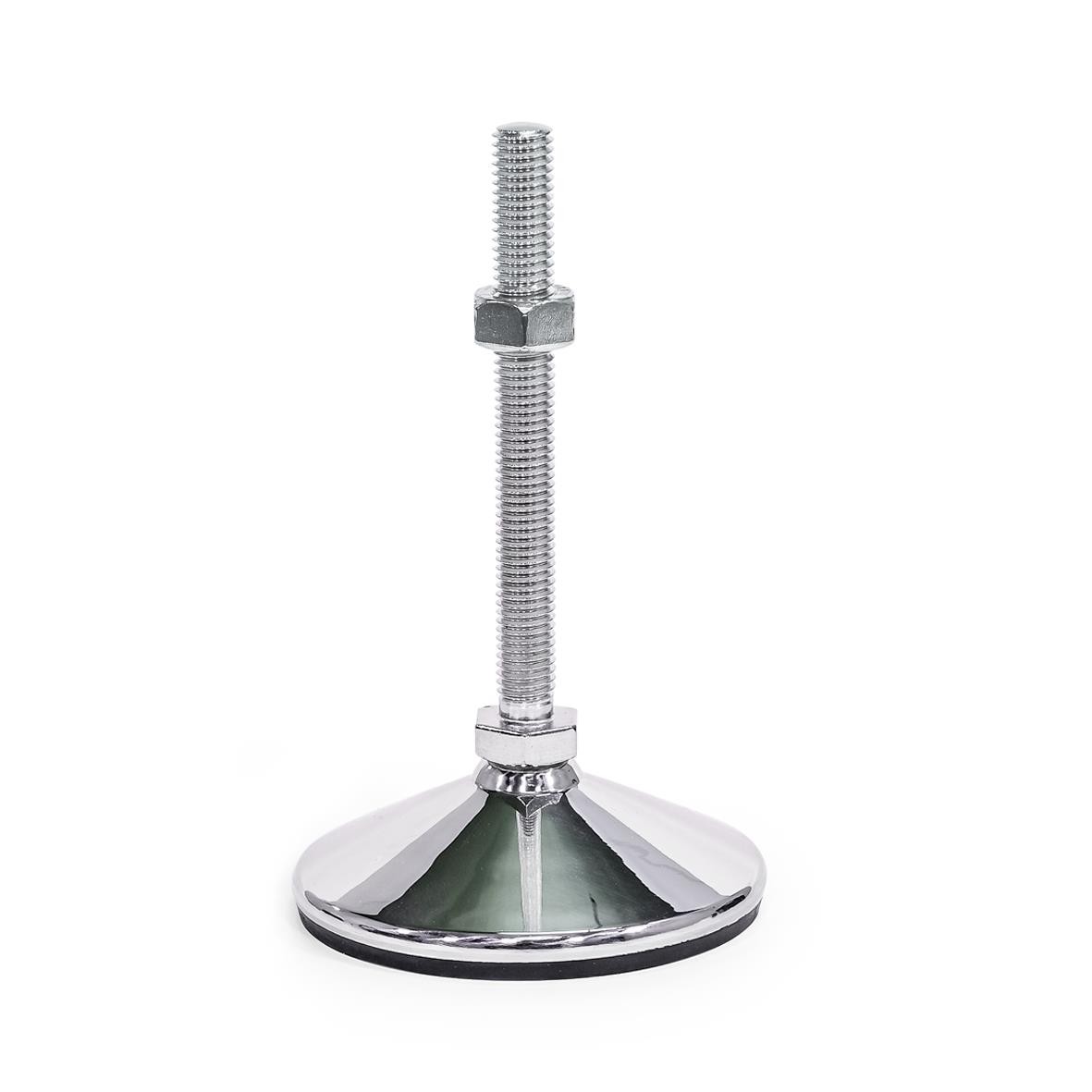

Version SK - With nut, extreanl hex at the bottom

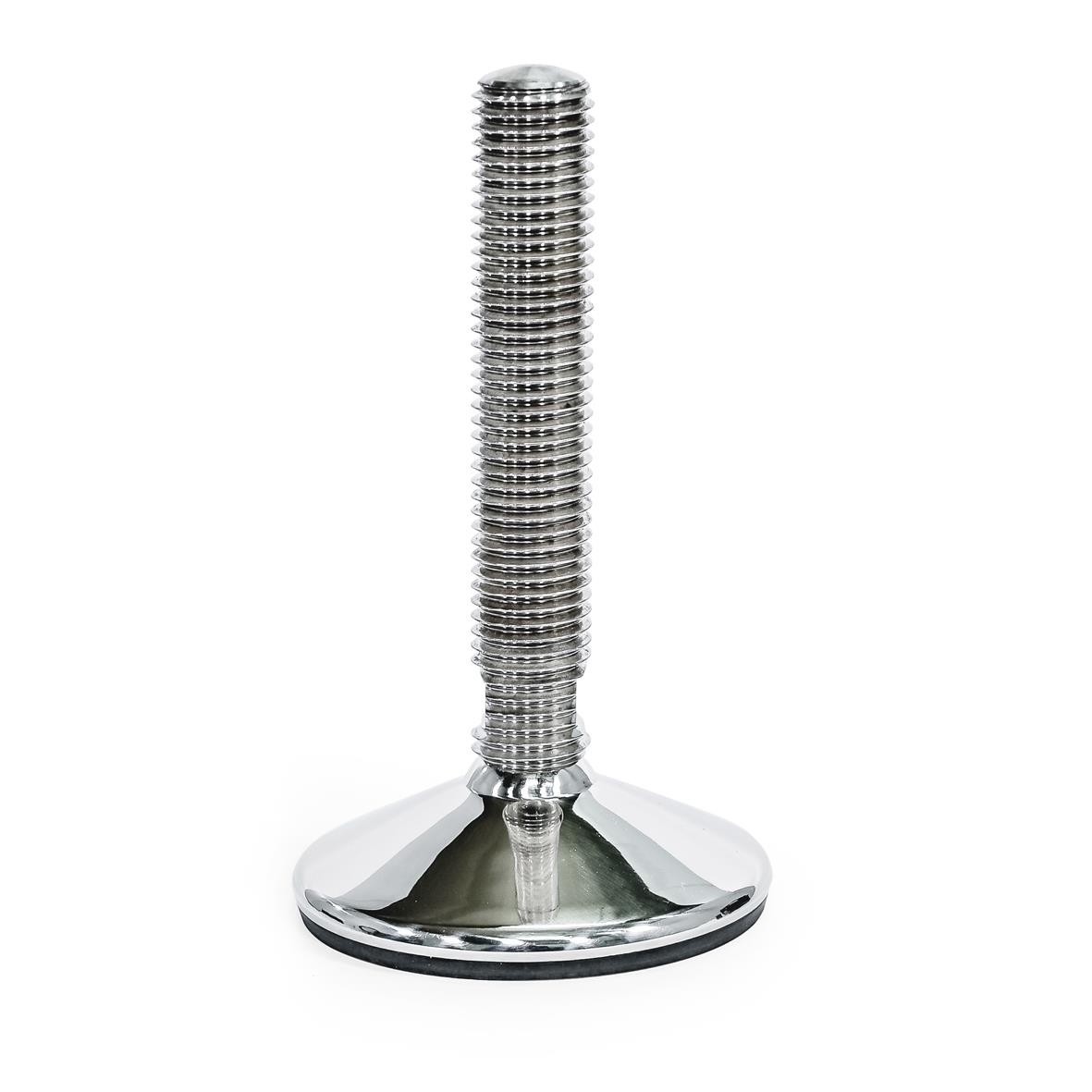

Version T - Without nut, wrench flat at the bottom

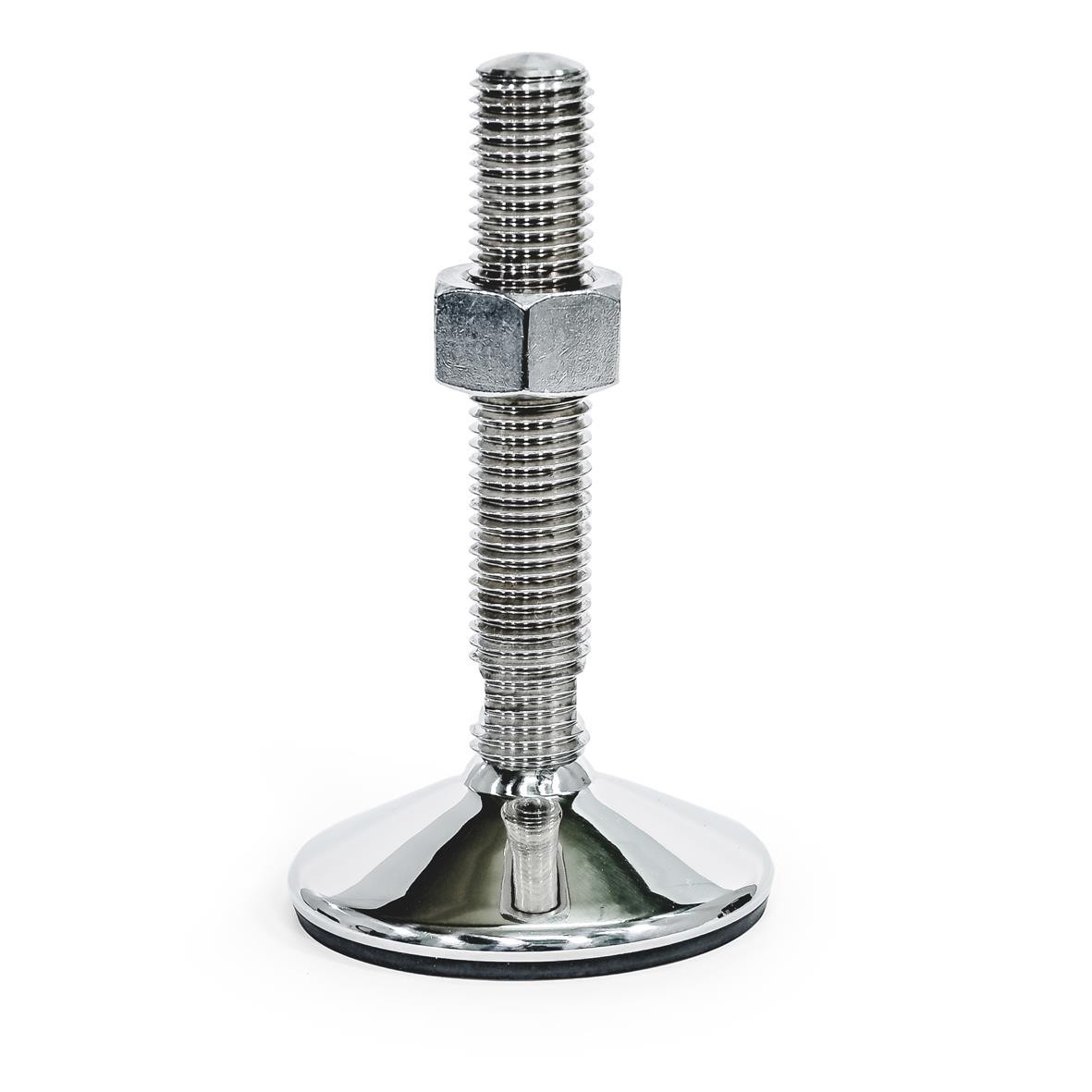

Version TK - With nut, wrench flat at the bottom
Product Description
GN18 Levelling Feet, Stainless Steel AISI 316L, FDA Compliant
Levelling feet GN 18 are particularly suitable for use in aggressive environments.
The inclined surfaces for liquid runoff and the high surface quality of the base plate make cleaning easy and prevent the accumulation of dust or dirt. The FDA compliant, vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used on machinery in food processing areas or the pharmaceutical industry, for example.
The levelling feet are supplied assembled and cannot be disassembled.
Specification
Base plate - Stainless steel, AISI 316L
Threaded stud - Stainless steel, AISI 316L
Hex nut ISO 4032 - Stainless steel, AISI 316
Rubber pad - Acrylonitrile butadiene rubber (NBR), black, FDA compliant, hardness 85±5 Shore A, vulcanized
On Request
Rubber pad available in various colours
