GN33 Levelling Foot, Stainless Steel with Mounting Lug

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type B1 - matt shot-blasted, rubber inlay, black



Version - without locknut, external hexagon below

Version SK - with locknut, external hexagon below

Version - without locknut, flat width below

Version TK - with locknut, flat width below

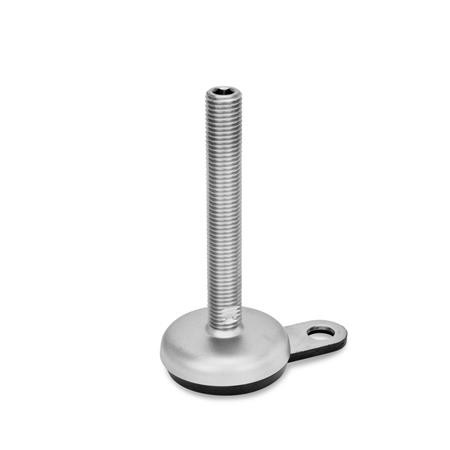

Version - without locknut, flat width below, internal hexagon above

Version UK - with locknut, flat width below, internal hexagon above

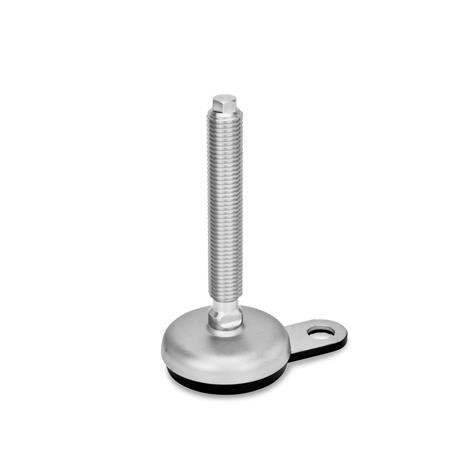

Version V - without locknut, flat width below, external hexagon above

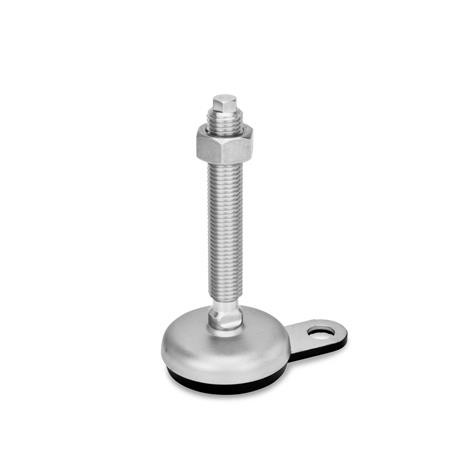

Version VK - without lock, flat width below, external hexagon above

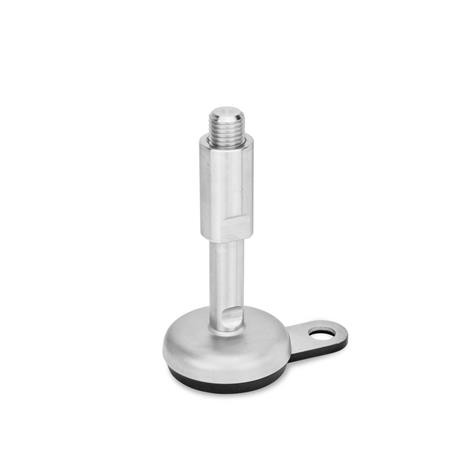

Version W - with adjustable sleeve

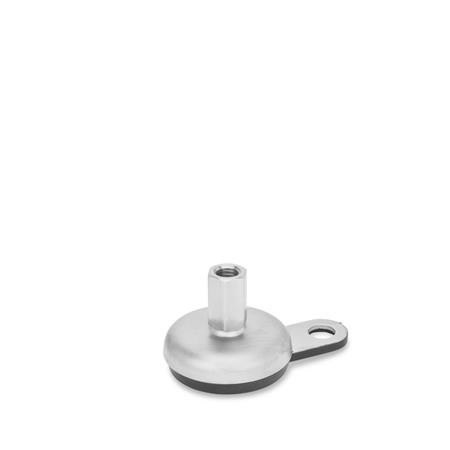

Version - with female thread

CAD Viewer Technical Data

Product description

GN33 Levelling Foot, Stainless Steel with Mounting Lug

Will be delivered mounted and are not removable.

Specification

Base Plate/lug - sheet metal, Stainless Steel AISI 304

Threaded Stem - Stainless Steel AISI 303

Hexagon nut ISO 4032 - Stainless Steel AISI 304

Rubber inlay, inlaid - black, Perbunan® (NBR), 80±5 Shore A

Standard part number GN340.6 has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN33.
