GN36.1 Foot Plates, without Central Fastening Hole

CloseNextPrevious



CloseNextPrevious

GN36.1: Foot Plate
Type: A - without rubber underlay



CloseNextPrevious

GN36.1: Foot Plate

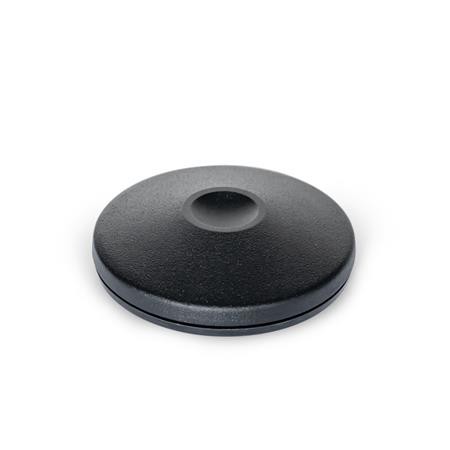

Type: B - with rubber underlay



CloseNextPrevious

GN36.1: Foot Plate

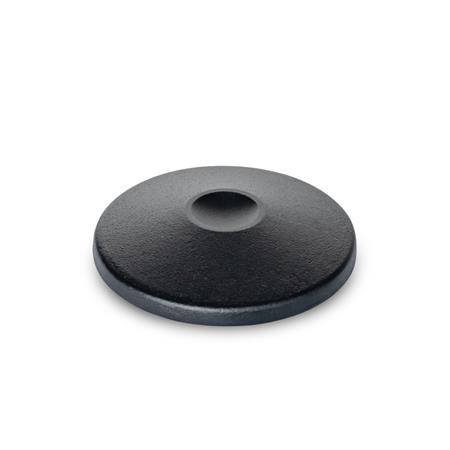

Type: C - with O-ring



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - without rubber underlay
Type B -  with rubber underlay
Type C - with O-ring

CAD Viewer Technical Data

Product Description

GN36.1 Foot Plates, without Central Fastening Hole

Foot plates GN 36.1 are characterized by their solid construction and large variety. They are used especially on large and heavy systems and machines.

The foot plates are ideal for use with customized adjustment or compensation stems that have the spherically shaped absorption radius “r” at the contact point. DIN screws or threaded studs with chamfer or pointed nose used as an alternative reduce the load capacity due to the lack of full-surface contact.

Type B with rubber underlay prevents slipping to the side, protects delicate surfaces and dampens vibrations and tremors. Type C with O-ring provides a seal over the ground to prevent the build-up of dirt under the foot.

Specification

Steel - plastic coated, black, RAL 9005, textured finish

Rubber underlay, inlaid - black, Perbunan® (NBR)85±5 Shore A

O-ring, inlaid - black, Perbunan® (NBR), ≈ 70 Shore A
