GN51.2 Retaining Magnet, Threaded Bush, Rubber Jacket

CloseNextPrevious



CloseNextPrevious

GN51.2: Retaining Magnet
Colour: SW - Black



CloseNextPrevious

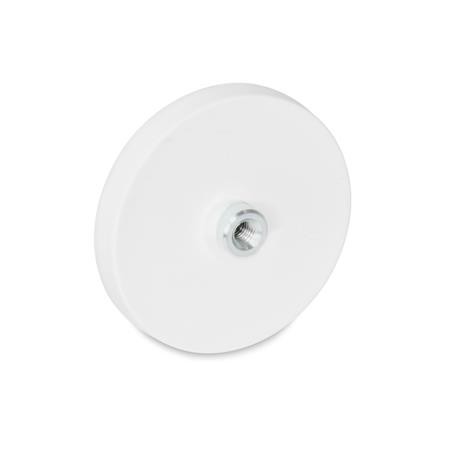

GN51.2: Retaining Magnet
Colour: WS - White



CloseNextPrevious

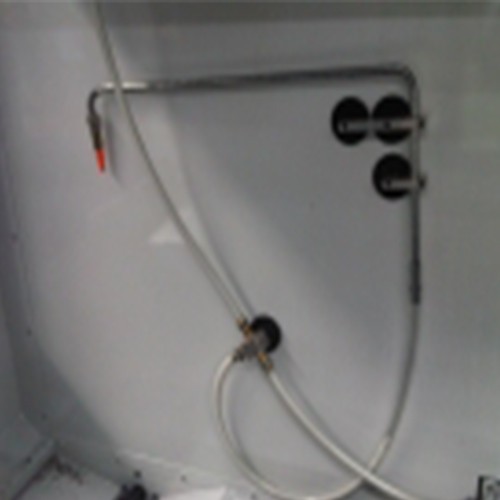

GN51.2: Retaining Magnet - Application Example - used for cable guidance



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

CAD Viewer Technical Data

Product Description

GN51.2 Retaining Magnet, Threaded Bush, Rubber Jacket

This shielded retaining magnet is a simple, cost effective & long lasting means of securely holding items in place. The rubber jacket protects sensitive surfaces from being damaged by the magnet and also delivers a higher friction coefficient, resulting in high lateral adhesion forces.

These stud magnets have an internal thread (a threaded bush) incorporated for fixing the magnet into position.

To ensure that the magnetic properties (adhesive forces) are not impaired, the fixing screws must be made of non-magnetic material.

Specification

Steel ST, zinc plated.

Magnet material - NdFeB ND Neodymium, Iron, Boron, temperature resistant up to 80°C.

Rubber jacket - Elastomer (TPE), 80 shore A. Black - SW, white - WS .

Application Example

In this example, magnets GN 51.2 are used for cable guidance inside a CNC milling machine.
