GN54.1
Retaining Pot Magnet, Rod, Sandwich, Smooth Finish Brass Housing
Please select desired options to reveal part number, price and availability
Product Description

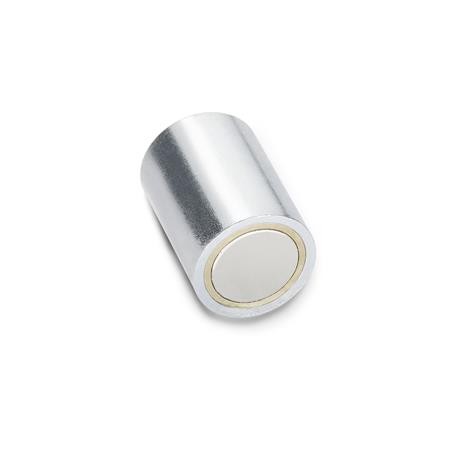

GN52.2 Retaining Magnets, Rod, Internal Thread
This shielded retaining pot magnet is a simple, cost effective & long lasting means of securely holding items in place without causing damage.
A pot magnet consists of a steel shell containing a powerful magnet. This steel pot directs the magnetic field lines downward to the contact surface. This causes the magnetic force to be concentrated at the contact surface and therefore increases the strength of the magnet.
This strong adhesive force occurs only on direct contact with the counterpart. A pot magnet is not suitable for attraction over distance. For the best adhesive force the contact surface should ideally be a thick, smooth and unpainted surface.
There is an internal thread for fixing in place and GN 52.2 can also be mounted by pressing in, shrinking in, or gluing in.
Specification
Housing - Steel ST, zinc plated.
Magnet material:
AlNiCo AN Aluminium, nickel, cobalt, temperature resistant up to 450°C.
NdFeB ND Neodymium, iron, boron, temperature resistant up to 80°C.
