GN7080 Holding Disc for Retaining Magnets, Threaded Stud, Hygienic Design, Stainless Steel
CloseNextPreviousGN7080 Holding Disks, Stainless Steel, Hygienic Design
Sealing Ring Material E EPDM
CloseNextPreviousGN7080 Holding Disks, Stainless Steel, Hygienic Design

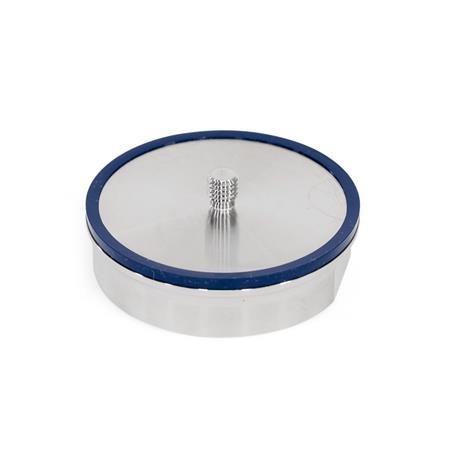

Sealing Ring Material H H-NBR
CloseNextPreviousGN7080 Holding Disks, Stainless Steel, Hygienic Design

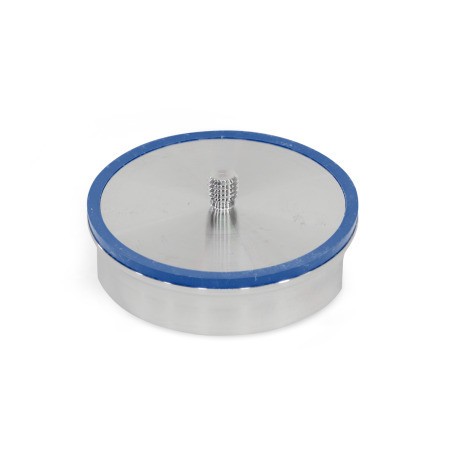

Sealing Ring Material F FKM
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type A - Flat locating service
Product Description
GN7080 Holding Disc for Retaining Magnets, Threaded Stud, Hygienic Design, Stainless Steel
Holding disks GN 7080 are used as counterparts for retaining magnets when these are used in combination with non-magnetic materials or when the holding force needs to be increased due to thin material.
They are intended for use in hygiene areas. The sealed screw-on surface enables mounting without dead spaces; the impervious geometry in combination with the high quality finish prevents dirt from accumulating and facilitates cleaning.
The holding disks can also be used in particularly aggressive environments thanks to the material used.
Specification
- Stainless steel AISI 318LN - matte finish, (Ra < 0.8µm MT)
- Sealing ring - blue, hardness 85 ± 5 Shore A, FDA compliant
- H-NBR Temperature resistant -25º C to +150º C H
- EPDM Temperature resistant -40º C to + 120º C E
- FKM sealing ring (fluoro-elastomer) Temperature resistant -5º C to +200º C F
Accessory
Sealing rings GN7600
Screws GN1580
CAD Viewer
Technical Data
