M Mechanical Cam Unit, Power up to 5000 daN, Standard Stroke
Choose your Part
Please select desired options to reveal part number, price and availability
Model
170 210 320
Options Available
Blank Headed Punch with ejector 8-64,5 £TBCHeaded Punch with ejector Oblong 8-64,5 £TBCHeaded Punch with ejector Rectangular 8-64,5 £TBCHeaded Punch with ejector Circular 8-64,5 £TBCHeaded Punch with ejector Dee 8-64,5 £TBCHeaded Punch with ejector Flatted Circular 8-64,5 £TBCHeaded Punch with ejector Long Life 8-64,5 £TBCLever-Angle 0 £136.50Lever-Angle min -20,01 max -40 £136.50Lever-Angle min -0,01 max -20 £136.50Lever-Angle min +0,01 max +20 £136.50Lever-Angle min +20,01 max +40 £136.50
Stock Availability
No Stock for immediate dispatch
Product Description

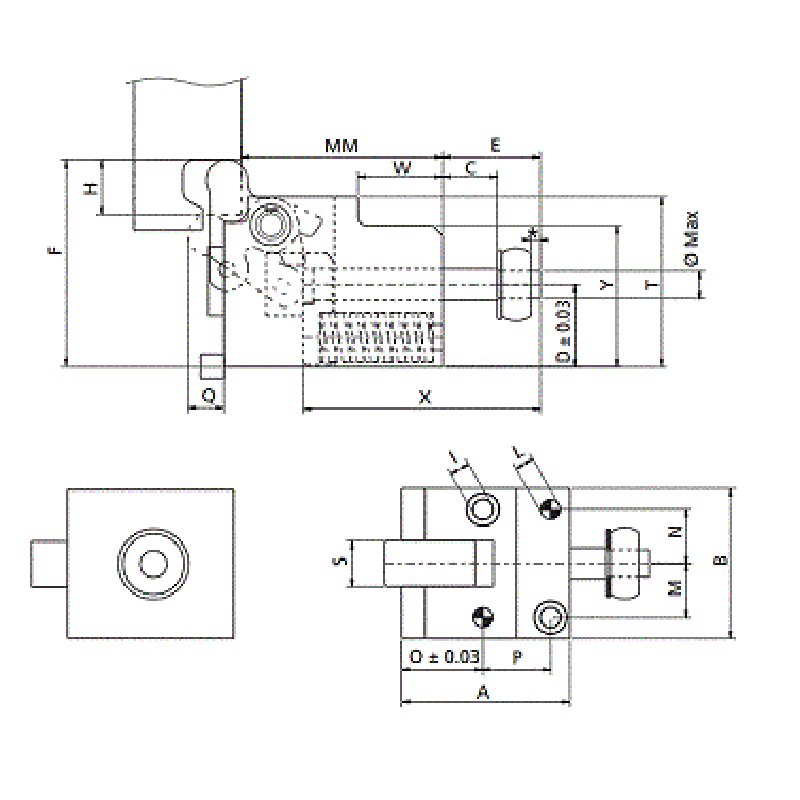

M Mechanical Cam Unit, Power up to 5000 daN, Standard Stroke
Mechanical Cams M type contain a standard ISO8020 punch and supply power up to 500 daN. They have a steel coil spring return. A urethane spring is used to strip the material off the punch. Easily unassembled for maintenance. They can be fitted horizontally or at an angle (for inclined use or special applications please consult our technical department).
M type is a standard stroke. An ML type is also available for longer strokes.
Applications: Cutting & drilling
- Maximum Speed 50 Strokes per Minute
- Competitive Price
- Highly Accurate
- Compact Unit
- Sloped Applications
- Special Applications
CAD Viewer
Technical Data
