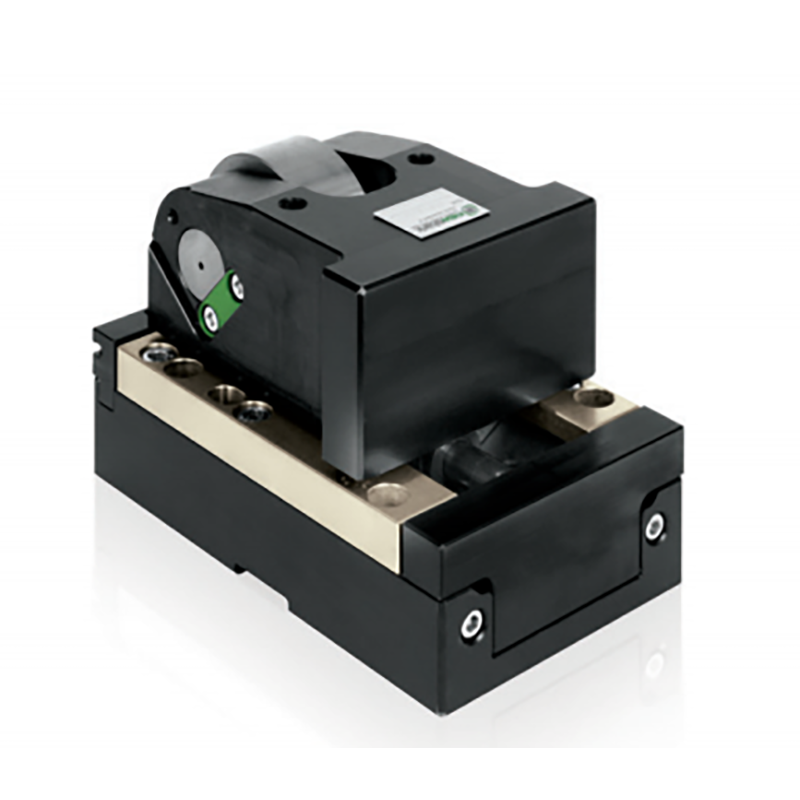

ROLLER Mechanical Cam Unit, Power up to 25,800 daN

CloseNextPrevious

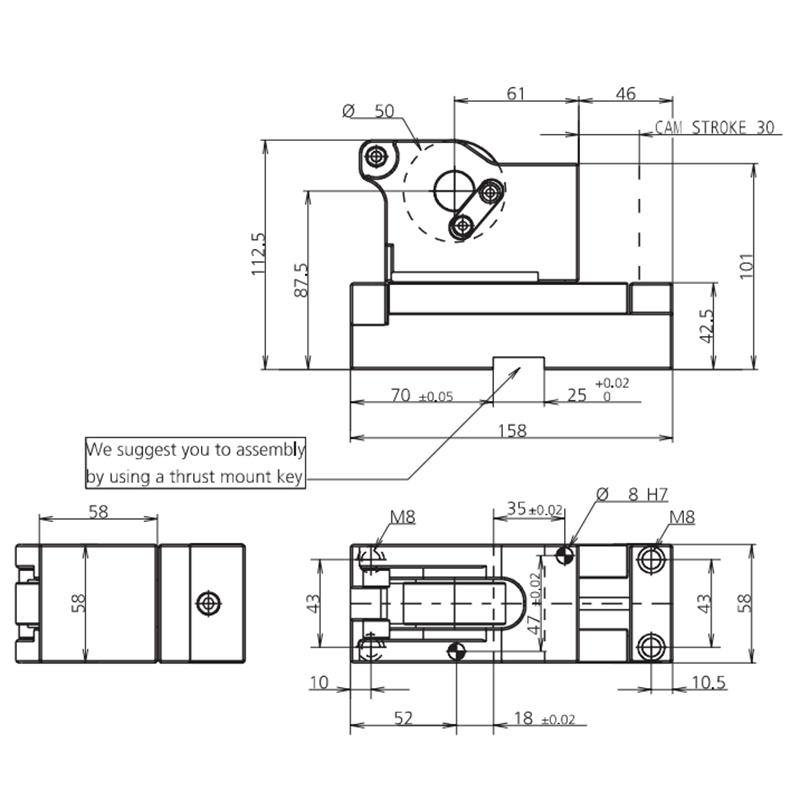

ROLLER: Cam Unit P030



CloseNextPrevious

ROLLER: Mechanical Cam Unit



CloseNextPrevious

ROLLER: Mechanical Cam Unit



CloseNextPrevious

ROLLER: Mechanical Cam Unit



CloseNextPrevious

ROLLER: Cam Unit

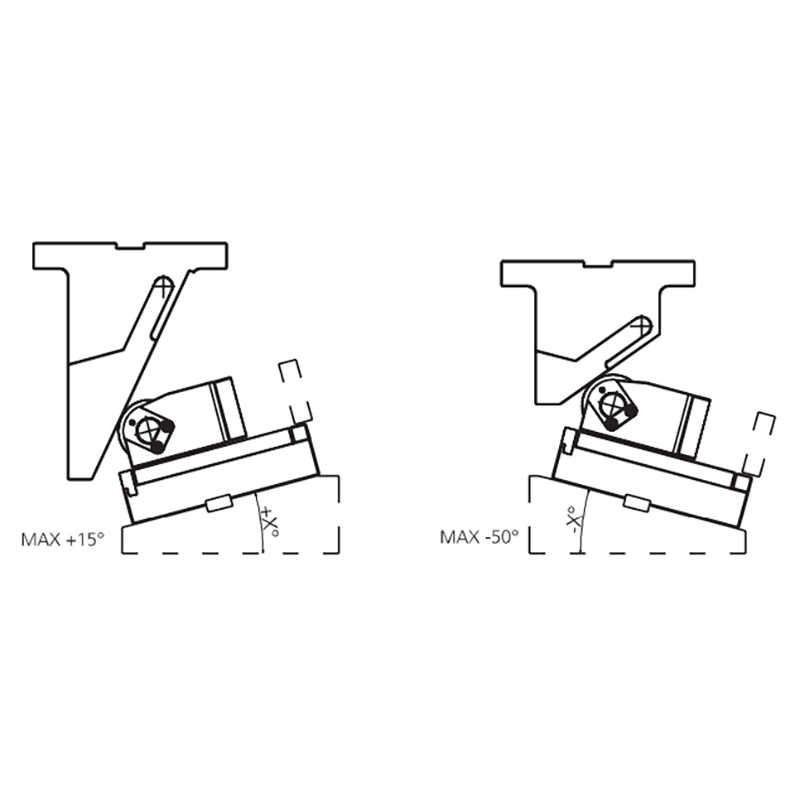

Possible Inclination



CloseNextPrevious

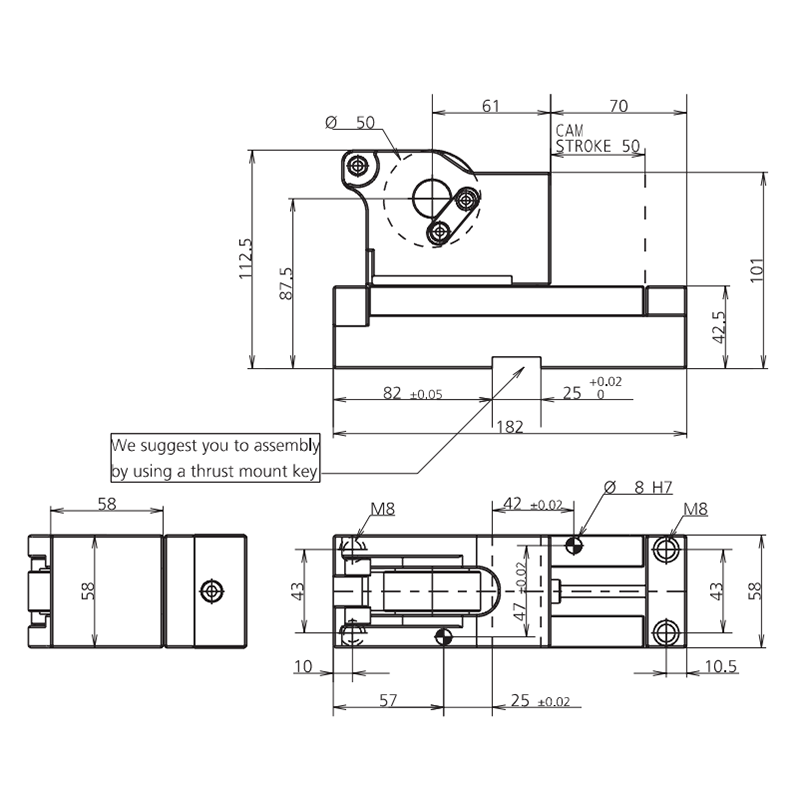

ROLLER: Cam Unit P050



CloseNextPrevious

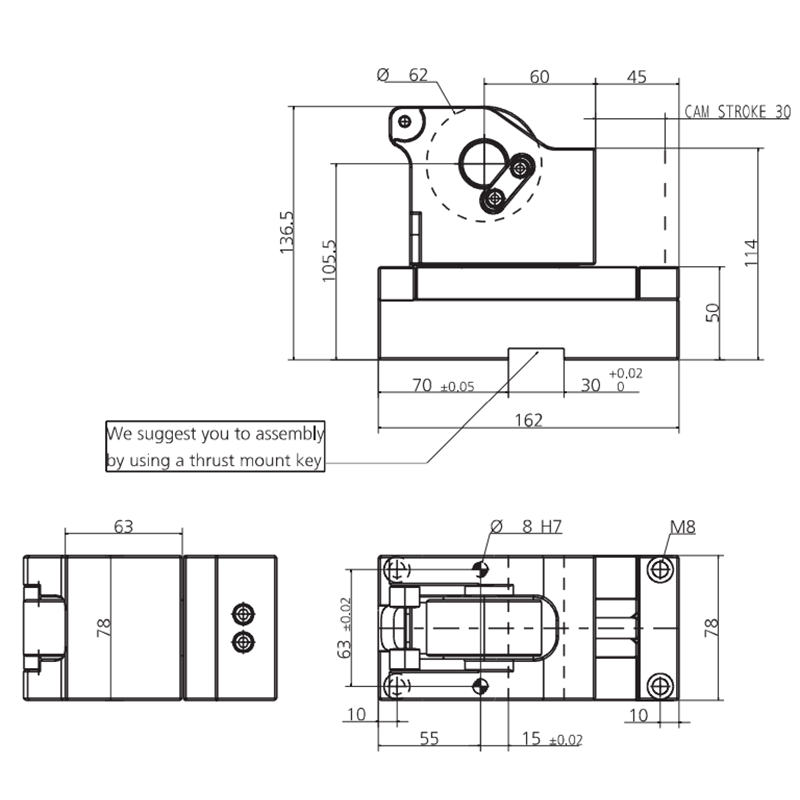

ROLLER: Cam Unit P130



CloseNextPrevious

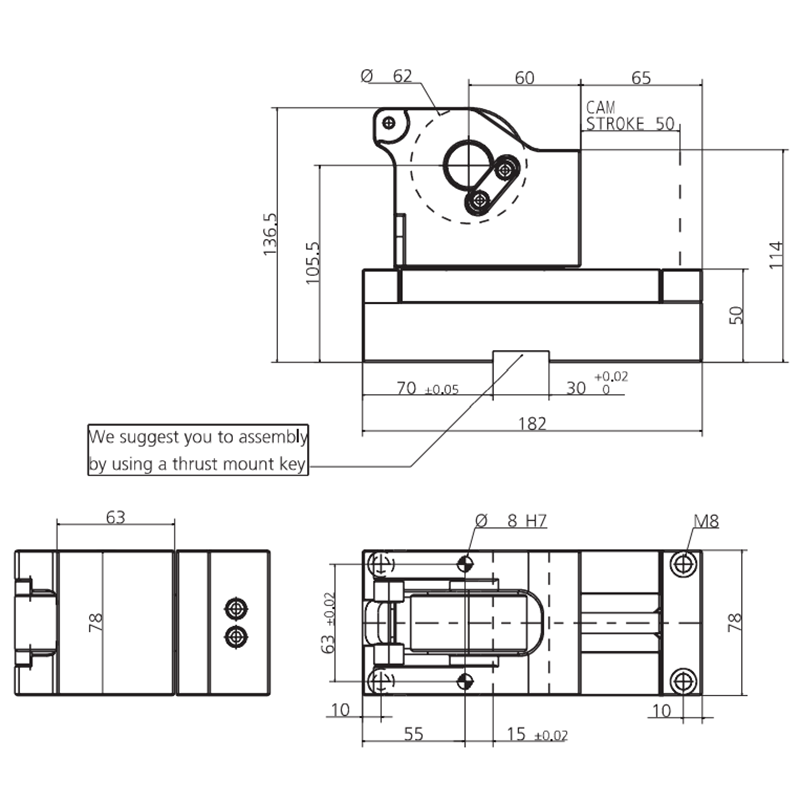

ROLLER: Cam Unit P150



CloseNextPrevious

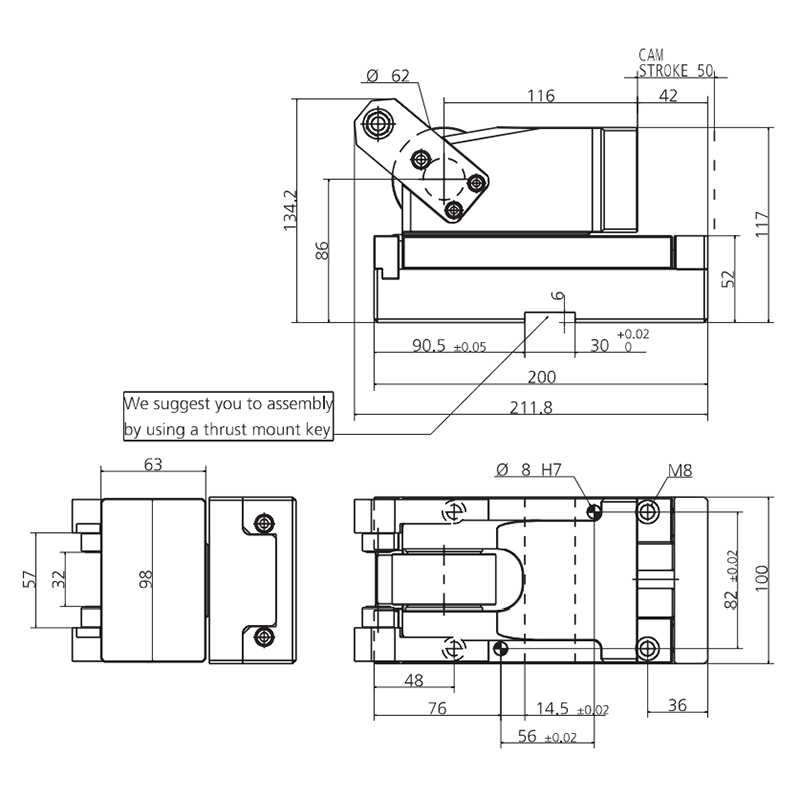

ROLLER: Cam Unit P250



CloseNextPrevious

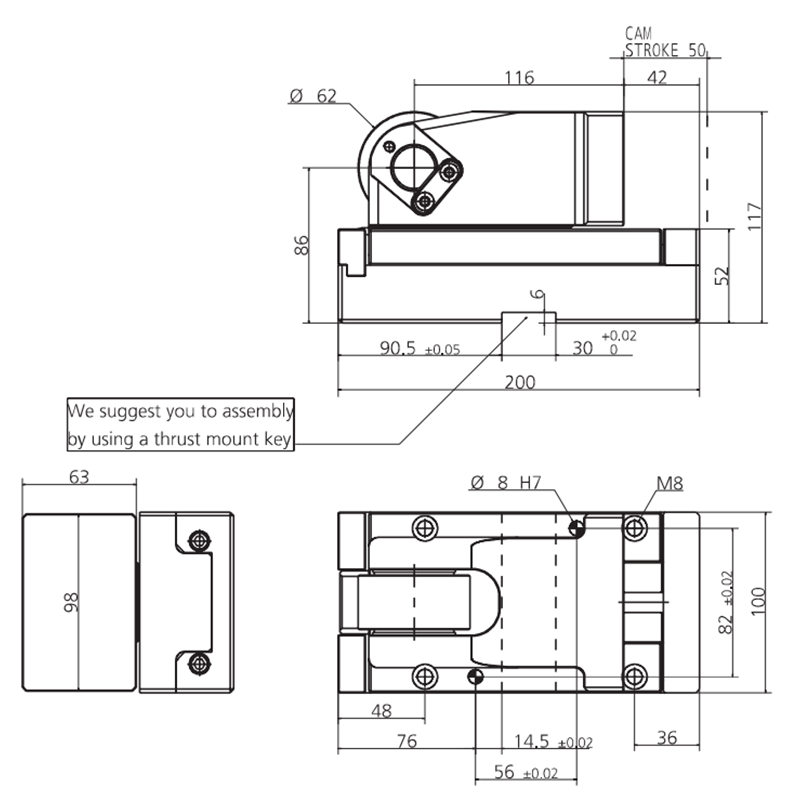

ROLLER: Cam Unit K250



CloseNextPrevious

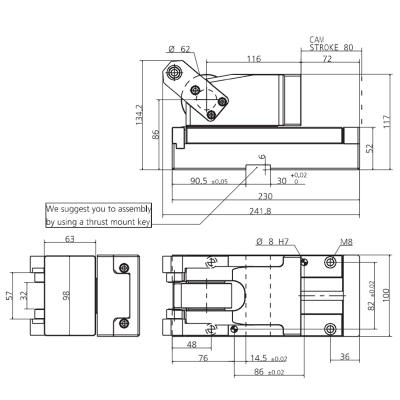

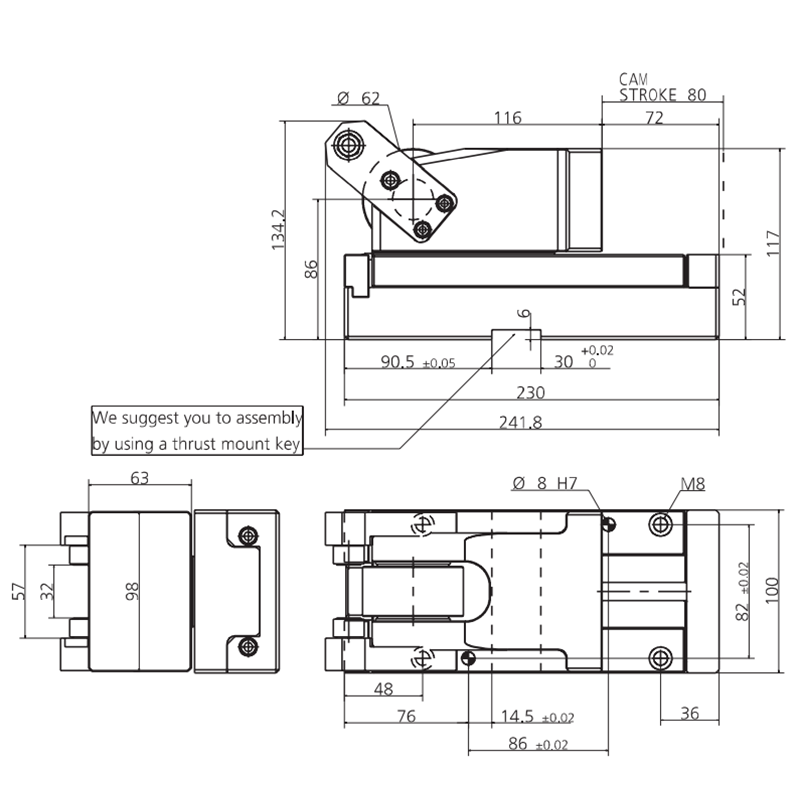

ROLLER: Cam Unit P280



CloseNextPrevious

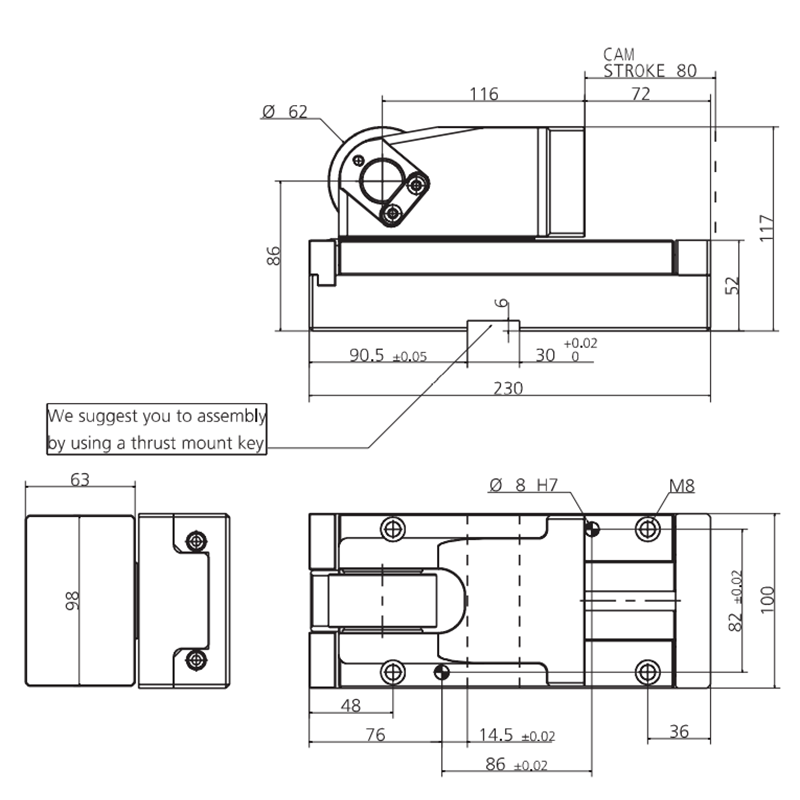

ROLLER: Cam Unit K280



CloseNextPrevious

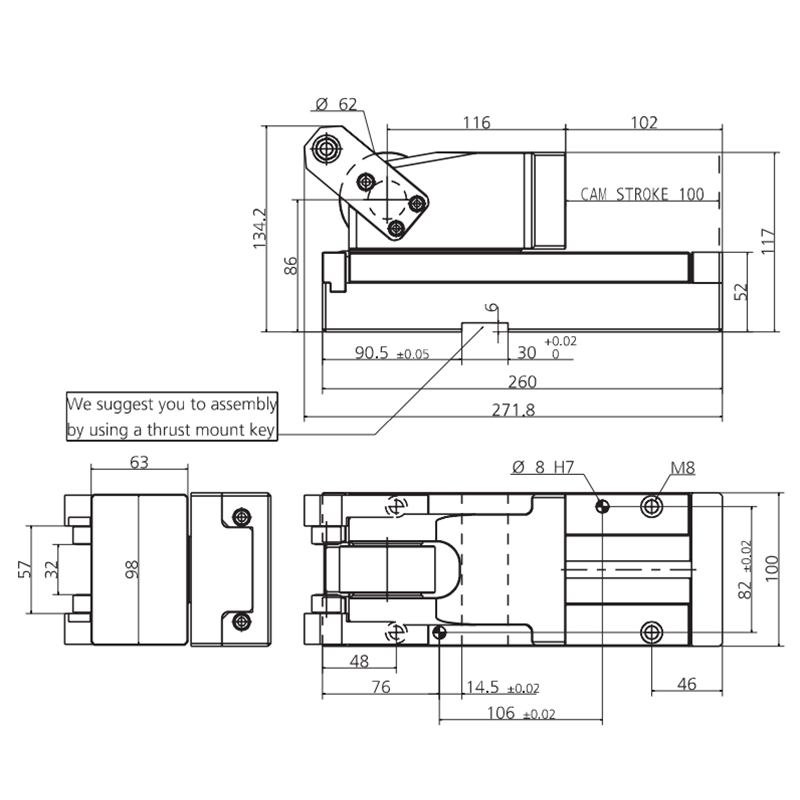

ROLLER: Cam Unit P2A0



CloseNextPrevious

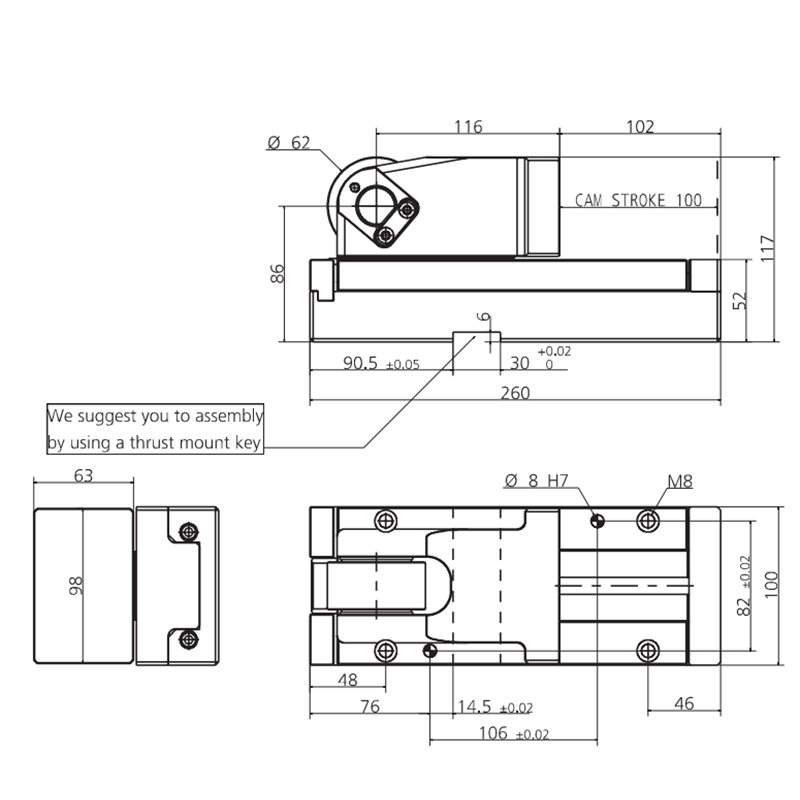

ROLLER: Cam Unit K2A0



CloseNextPrevious

ROLLER: Cam Unit P350



CloseNextPrevious

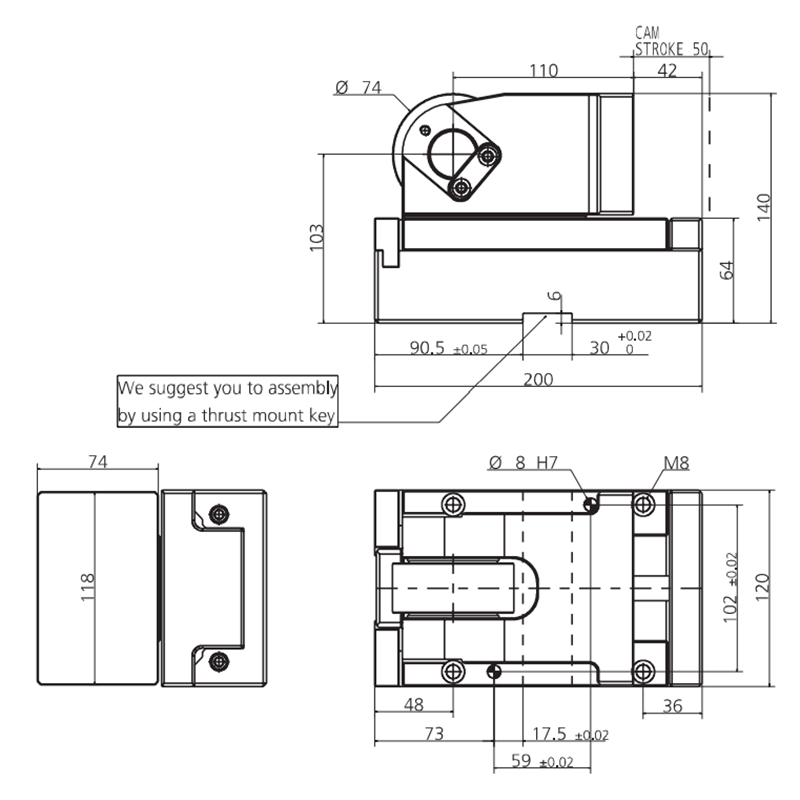

ROLLER: Cam Unit K350



CloseNextPrevious

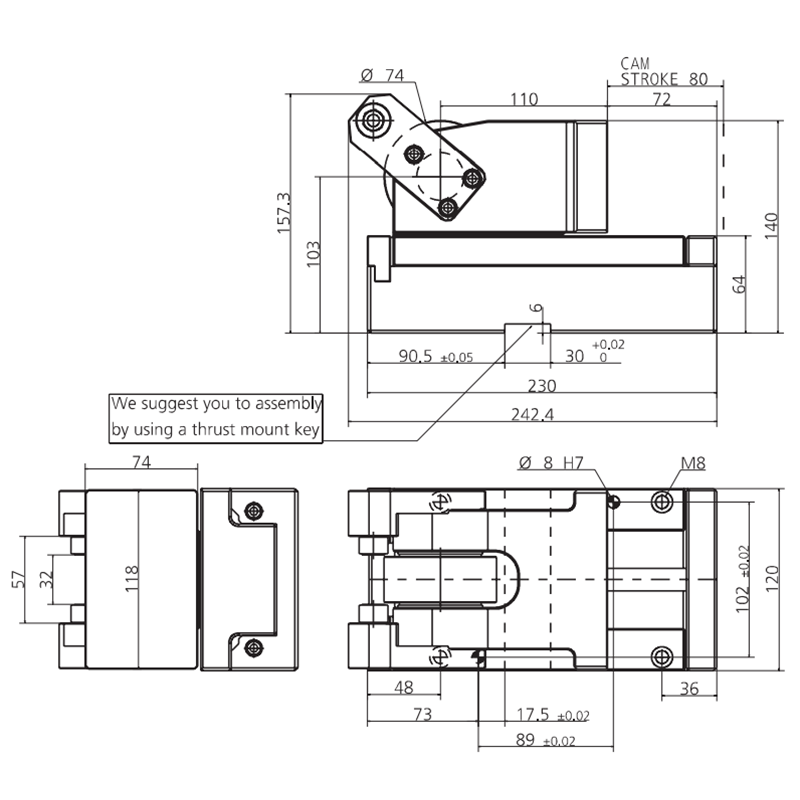

ROLLER: Cam Unit P380



CloseNextPrevious

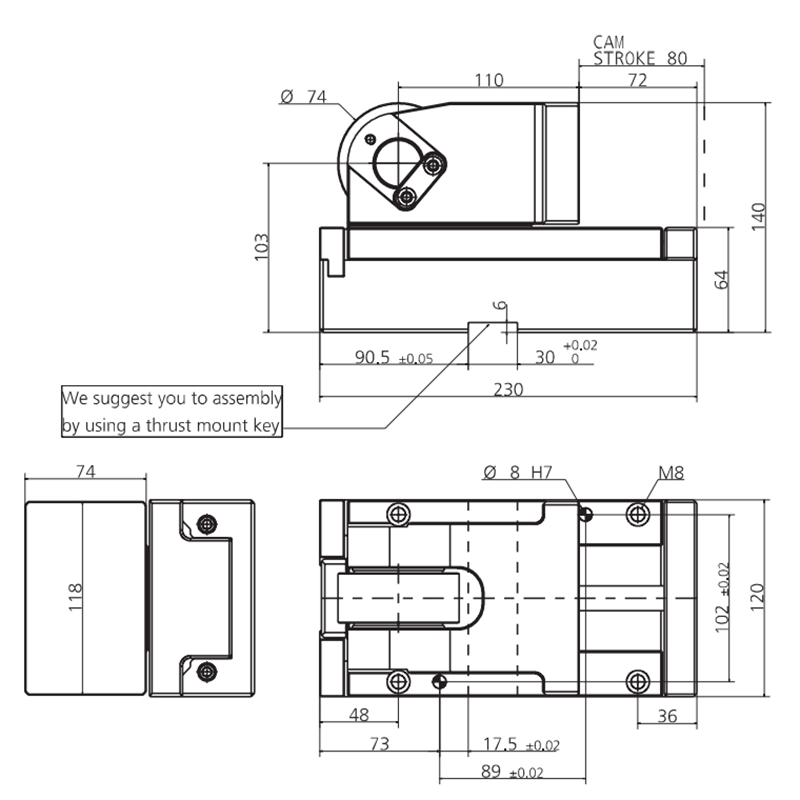

ROLLER: Cam Unit K380



CloseNextPrevious

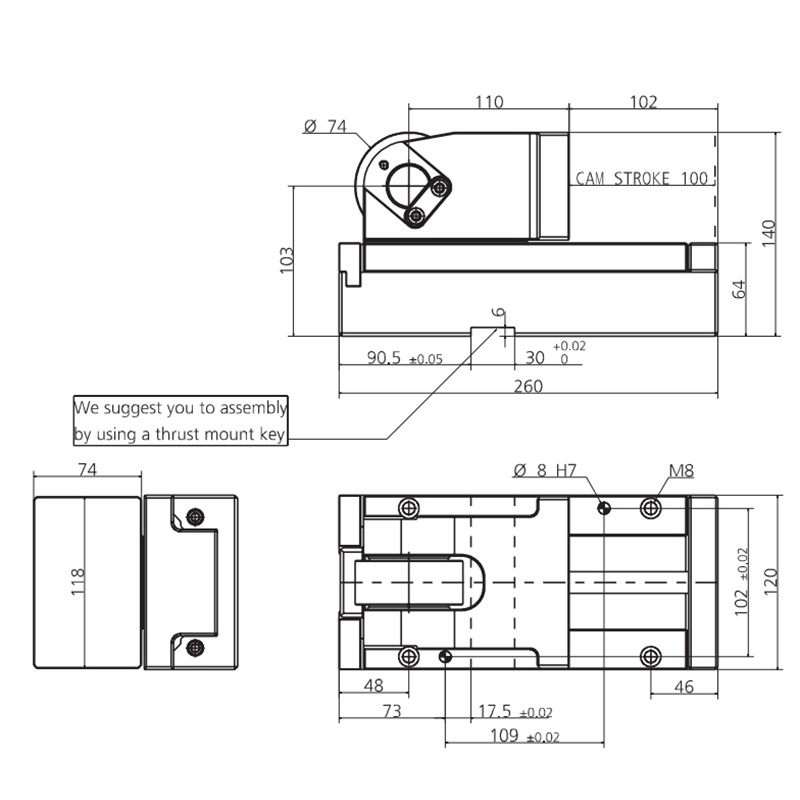

ROLLER: Cam Unit K3A0



CloseNextPrevious

ROLLER: Cam Unit K3A0



CloseNextPrevious

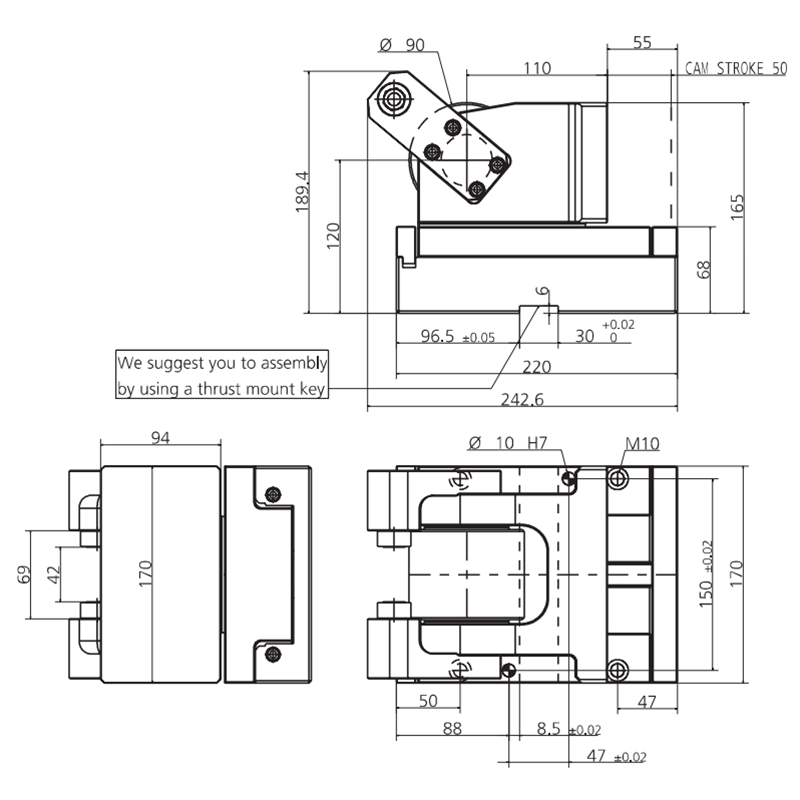

ROLLER: Cam Unit P450



CloseNextPrevious

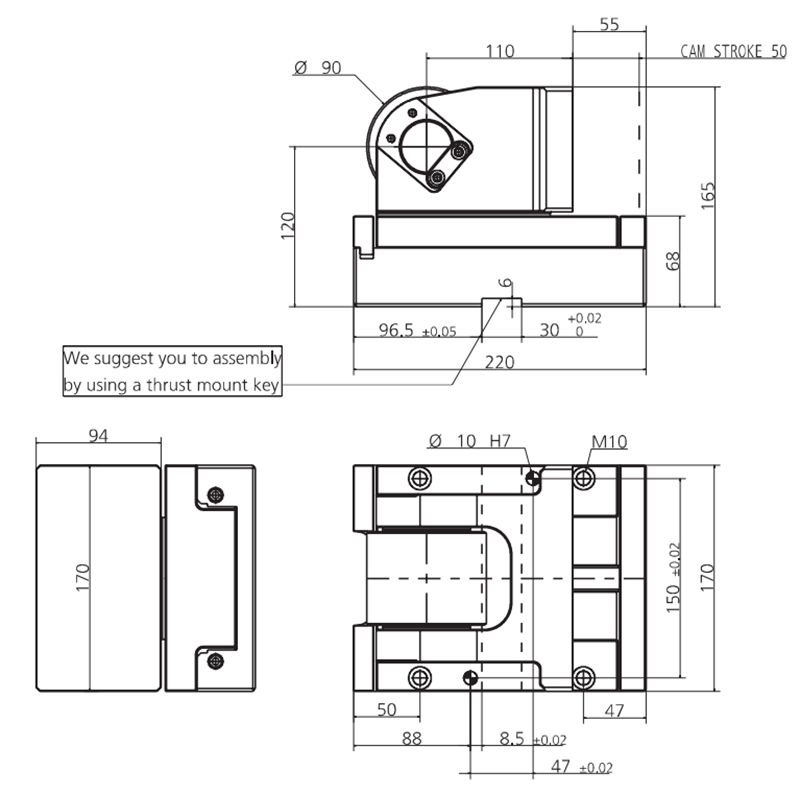

ROLLER: Cam Unit K450



CloseNextPrevious

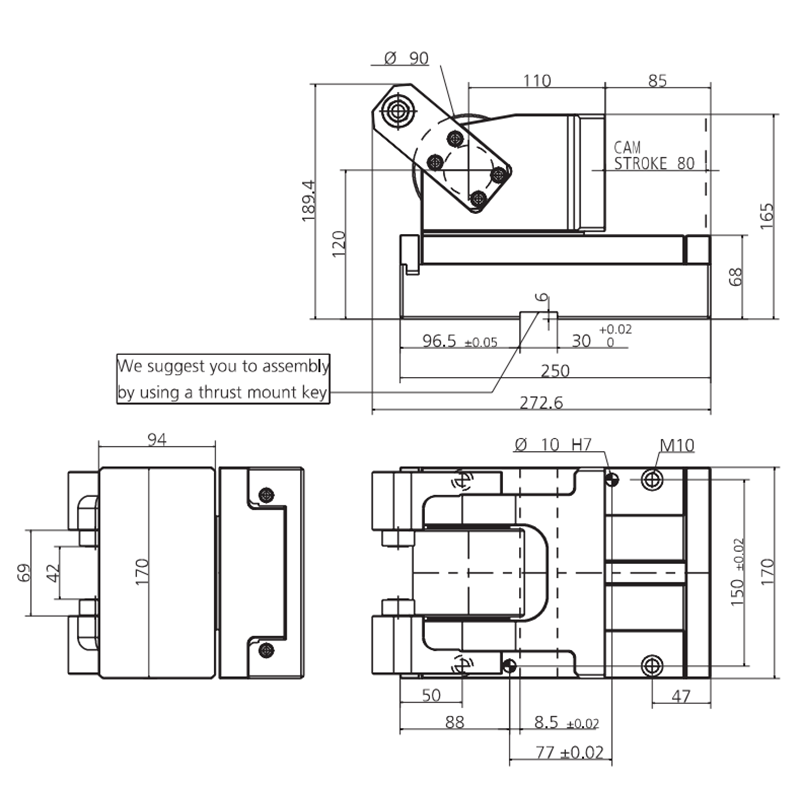

ROLLER: Cam Unit P480



CloseNextPrevious

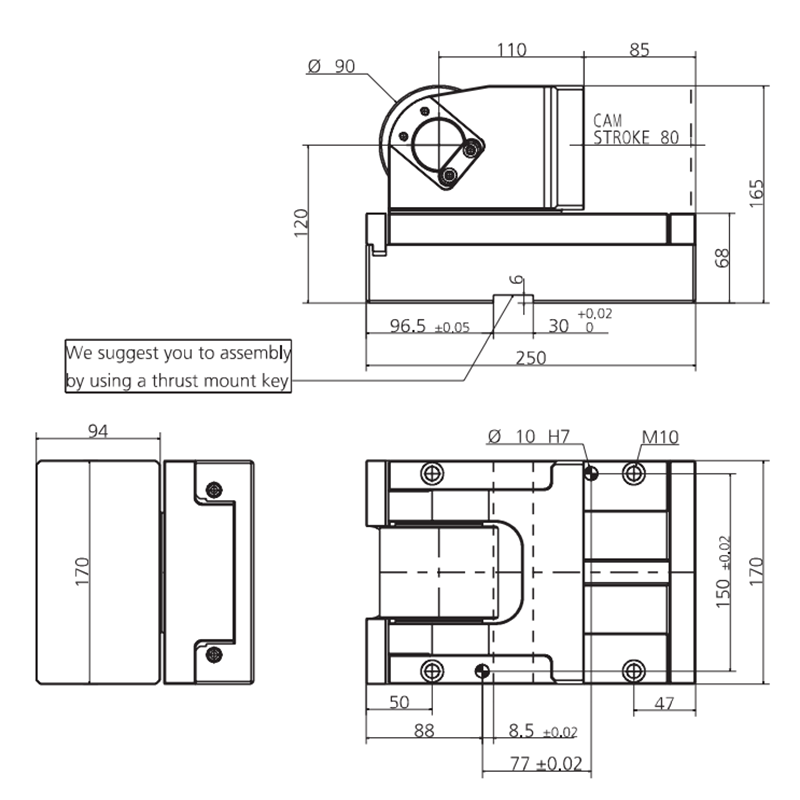

ROLLER: Cam Unit K480



CloseNextPrevious

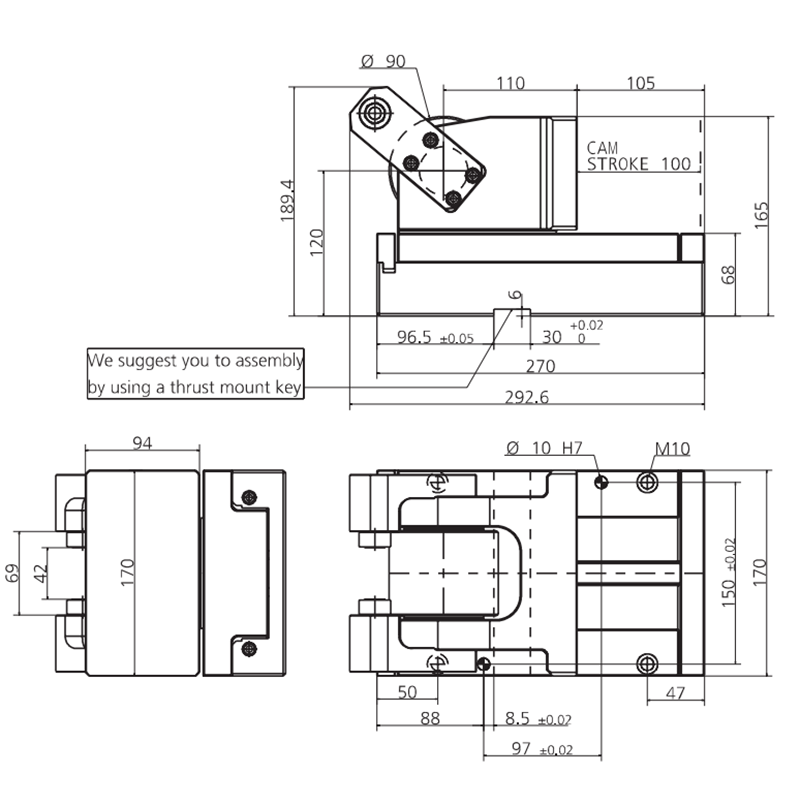

ROLLER: Cam Unit P4A0



CloseNextPrevious

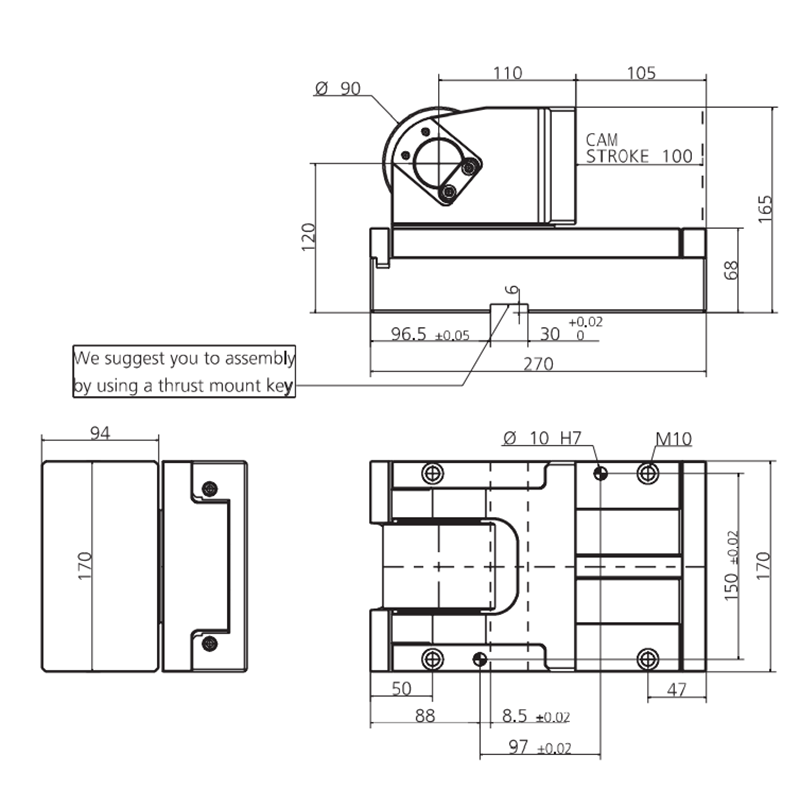

ROLLER: Cam Unit K4A0



CloseNextPrevious

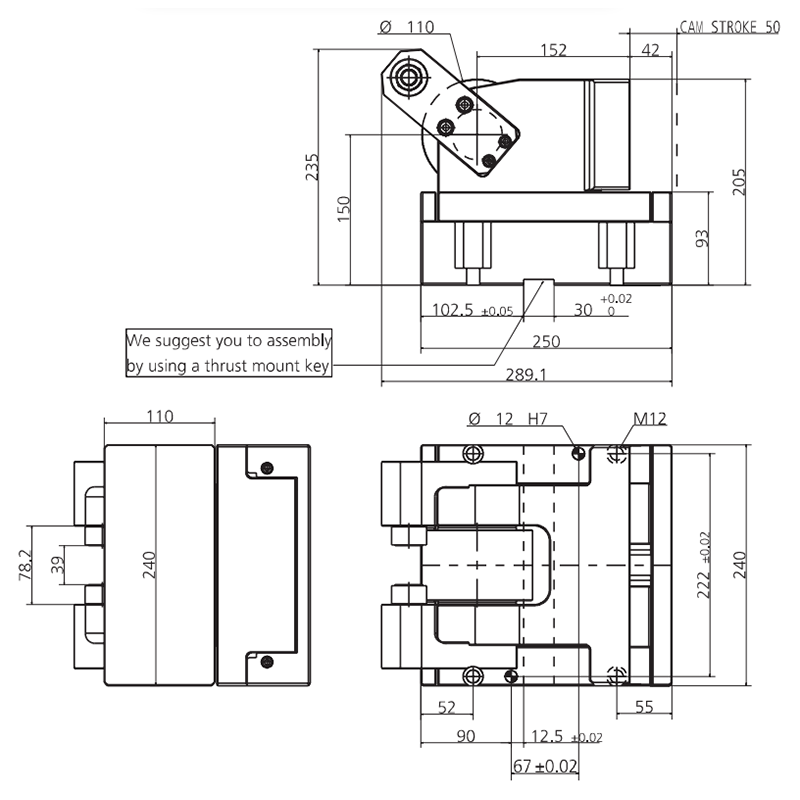

ROLLER: Cam Unit P550



CloseNextPrevious

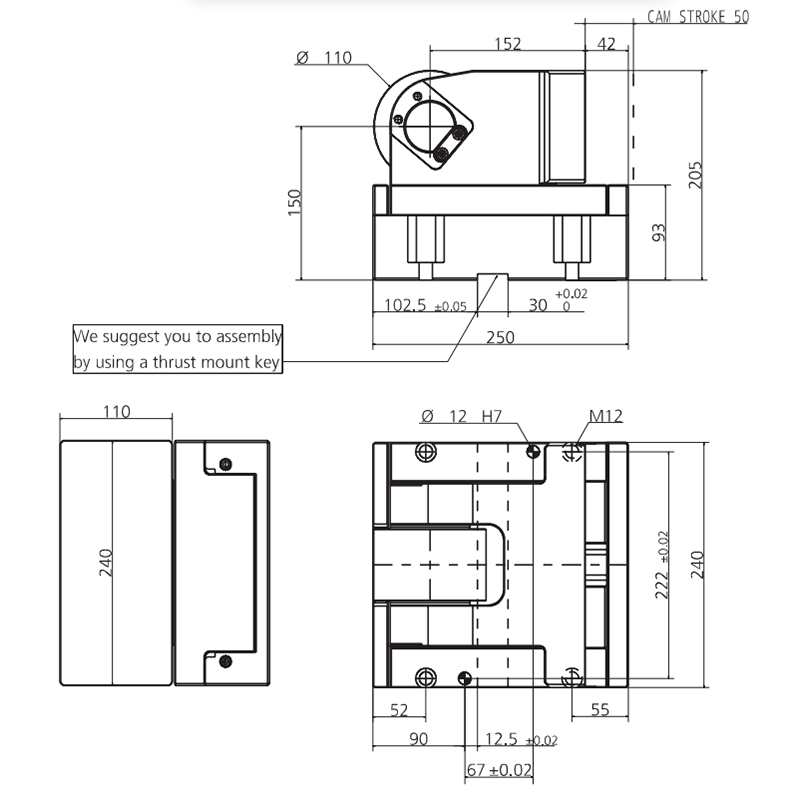

ROLLER: Cam Unit K550



CloseNextPrevious

ROLLER: Cam Unit P580



CloseNextPrevious

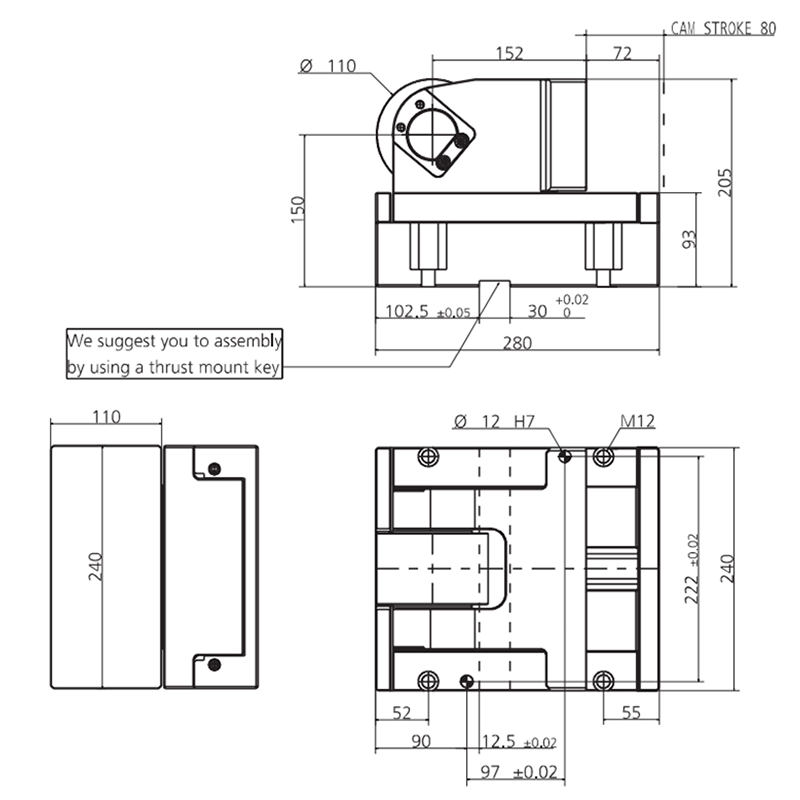

ROLLER: Cam Unit K580



CloseNextPrevious

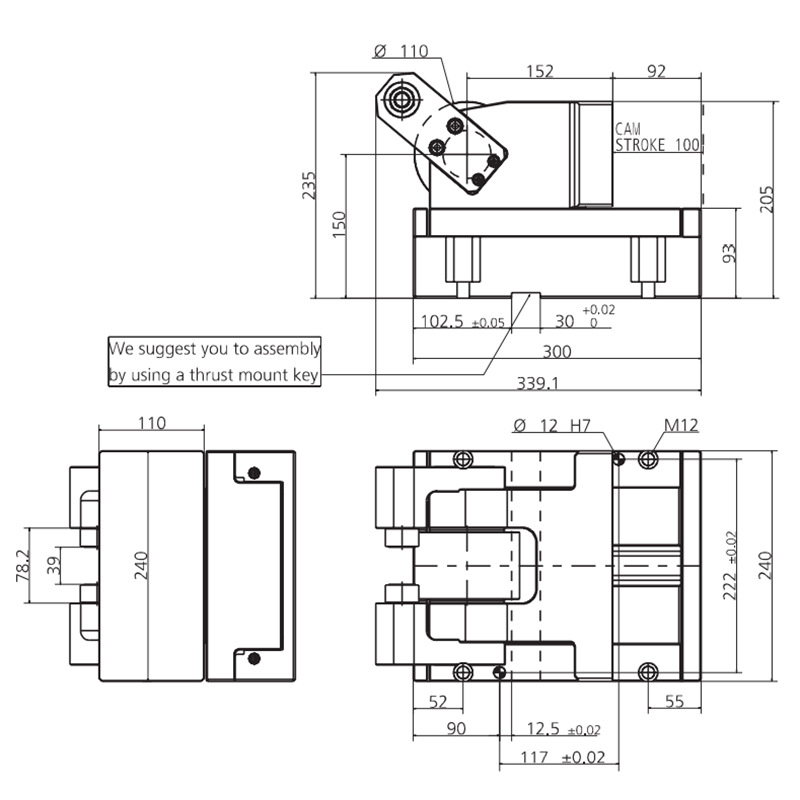

ROLLER: Cam Unit P5A0



CloseNextPrevious

ROLLER: Cam Unit K5A0



CAD Viewer Technical Data

Series Selector

Options

Wedge Inclination MUST be selected after you have selected CAM Model

Security Sensor is optional

CAD Viewer Technical Data

Product Description

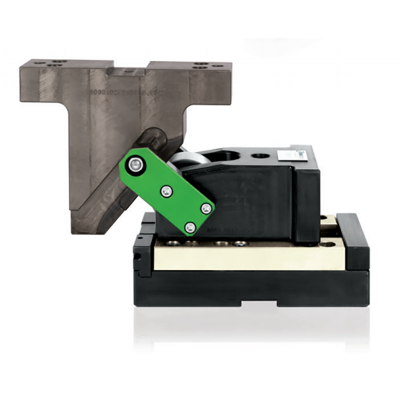

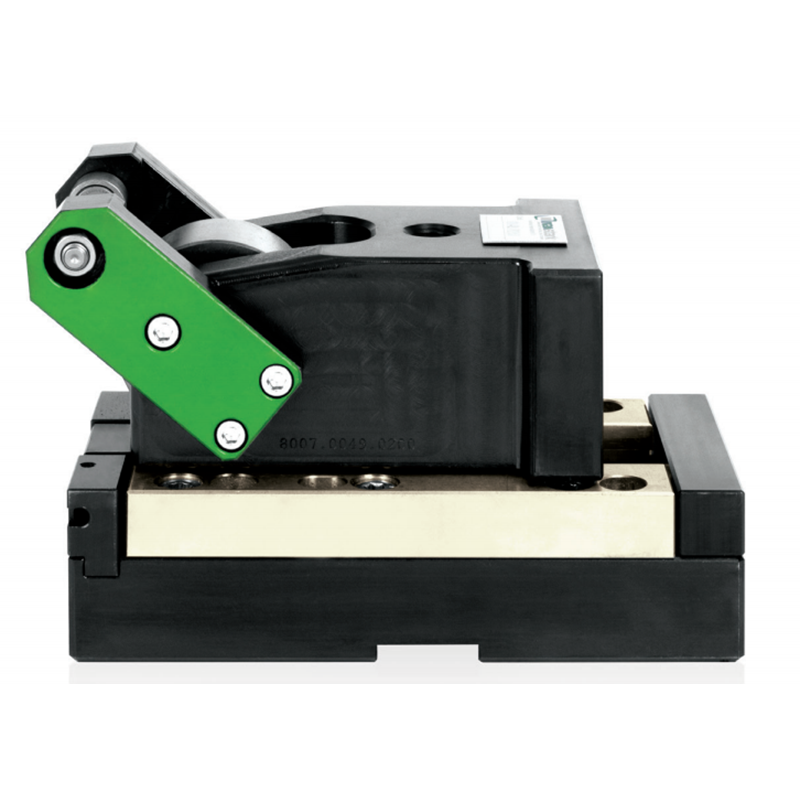

ROLLER Mechanical Cam Unit, Power up to 25,800 daN

Mechanical cam ROLLER with power supply up to 25,800 daN with return by a nitrogen cylinder, on which are applied accessories or steel, to perform required work.

Special applications are possible, for example the fitting of multiple punches in the same unit. This cam has a long stroke allowing it be fitted horizontally or at an angle. For special applications or inclined fitting, please consult our technical department.

Applications: Shearing, drilling and bending work

Features:
