Product Description

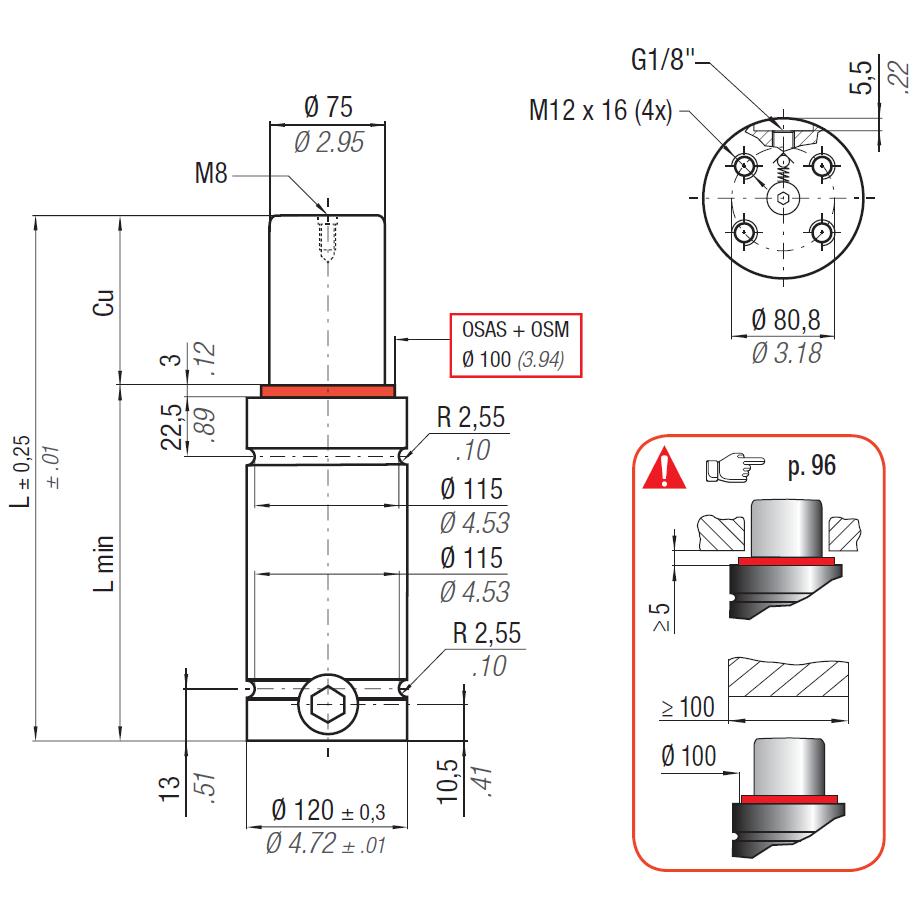

RT6600 Series - Minimum height, Maximum Force Hose Cylinder
Featuring the NEW OPAS & OSAS Pressure and Stroke protection the RT Series is a popular choice with designers.
Equivalent series to RV but with 10 mm increased height and G 1/8" connecting port.
Fixing holes pattern to Toyota standard.
F1i = Isothermal end force at 100% Cu
F1p = Polytrophic end force at 100% Cu (See Techincal Data - Catalogue Specification for more information)
International/Automotive Standards
SMS DNH 3203n Rev.3 (Toyota)
CAD Viewer
Technical Data
