GN848 Float Switch, for Level Monitoring

CloseNextPrevious



CloseNextPrevious

GN848: Float Switch
Type: A



CloseNextPrevious

GN848: Float Switch
Type: B



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - with Thread

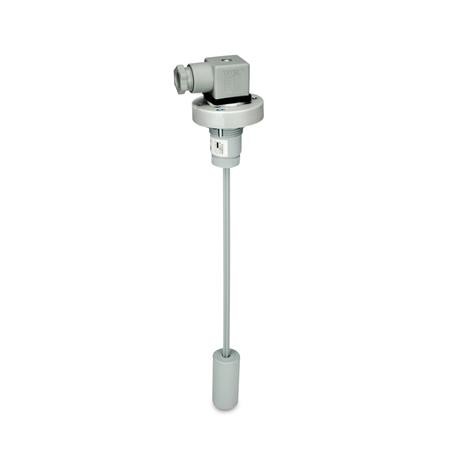

Type B - with Mounting Flange

CAD Viewer Technical Data

Product Description

GN848 Float Switch, for Level Monitoring

Float switches GN 848 can be used to monitor fluid levels by activating an electrical switching contact as soon as a defined filling level is exceeded or falls below a defined mark.

The desired level at which the switching point is to be reached is determined by the length of the float rod. With the float removed, this rod can be shortened; a scale for oil or water facilitates determining the exact length.

The top end of the float rod features a magnet which activates a reed contact when the appropriate position is reached, irrespective of the medium to be monitored.

Depending on the installation position of the magnet in the float rod, either normally open (NO) or normally closed (NC) may be operated. When delivered, the magnet is set for operating normally open (NO).

Specification

Housing, Float, Float rod - Plastic (Polyamide PA), Temperature resistant up to 80 °C, Gray

Sealing - Type A: O-ring NBR (Perbunan®), Type B: Flat sealing TPE

Socket cap screws DIN 912 - Steel, zinc plated

On Request

Float switch with longer float rod
