Product Description

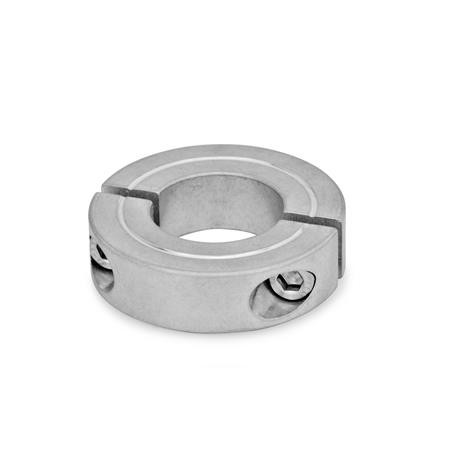

GN707.2 Split Set Collar, Steel, Aluminium, Two Piece

These set collars GN 707.2 are formed of two peices and are ideal when the collar cannot be slipped over a shaft, for example if other components are already in place. They correspond in measurement to the semi-split set collars GN706.2.

They can be easily and safely assembled, and have a high clamping force without damaging the surface of the shaft. They can be fully adjusted and repostioned on the shaft. They not only serve as an end stop, and hold bearings and sprockets on shafts, they can also be used for fixing or triggering other components such as end limit switches. A versatile component, they can also be used for location purposes.

For size d1 = 20 to 36 d3 is a through hole; starting from d1 = 42 d3 is a threaded blind bore.

Specification

Steel ST - Sintered Steel (Distaloy AB), black oxidised with vapor.

Socket head cap screw DIN912 - Steel, blank.

Aluminium AL - ground.

Socket head cap screw DIN912 - Stainless Steel AISI 304

SELECT HasTableOnOff FROM Series WHERE SeriesID=793
