GN851.1 Latch Clamps Stainless Steel Pulling Action clamps adjusted range operating handle

All Stainless Steel Products
Standard Machine Elements > Toggle Clamps, Power & Hook Clamps > Toggle Clamps
< Previous Product Next Product >

GN851.1 Latch Clamps Stainless Steel Pulling Action

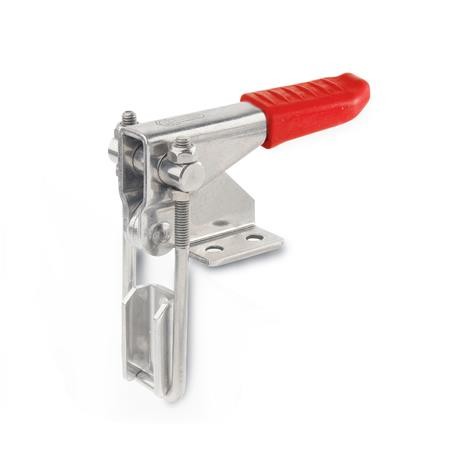

Type T3 with pulling latch, with latch bracket.

Type T without pulling latch, with latch bracket.

Pulling latch parallel to the clamping arm/plane of the operating handle

Select Values to Buy:

Tech Spec:



GN851.1 Latch Clamp, Sheet Stainless Steel, Pulling Action Latch

The stroke of the pulling latch of these latch clamps can be adjusted within its range.

In the clamped position the pulling latch with clamping arm is perpendicular to the clamping arm and the plane of the operating handle.

Besides the standard dimensions of the pulling latch above, more versions are available under GN951.1.

Specification

Stainless Steel NI

Sheet metal parts/Pulling latch - AISI 304

Pin - AISI 303

All moving parts lubricated with special grease

Handle with plastic sleeve, red, oil resistant

RoHS compliant

Select / Deselect Visible Columns
PartCodeSizeTypeMaterialFH in N
Holding
Capacity
ab1b2b3b4b5d1d2h1h2l1l2m1m2m3m4m5rsw1w2Mass

GN851.1-160-T3-NI160T3NI1600526352125.514M44.33710684.5226.5136.514.350234.5110.103
GN851.1-160-T-NI160TNI1600526352125.514M44.33710684.5226.5136.514.350234.5110.08
GN851.1-320-T3-NI320T3NI320083644323722M66.55415106625.58.51910.520.578353210.326
GN851.1-320-T-NI320TNI320083644323722M66.55415106625.58.51910.520.578353210.277
GN851.1-700-T3-NI700T3NI75001352543848.526M88.56723147836.5103213.527983.568300.71
GN851.1-700-T-NI700TNI75001352543848.526M88.56723147836.5103213.527983.568300.592
