GN286 Swivel Clamp Connector Joint, Aluminium

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type S - Stepless Adjustment

Type T - 15 Degree Seration Adjustment

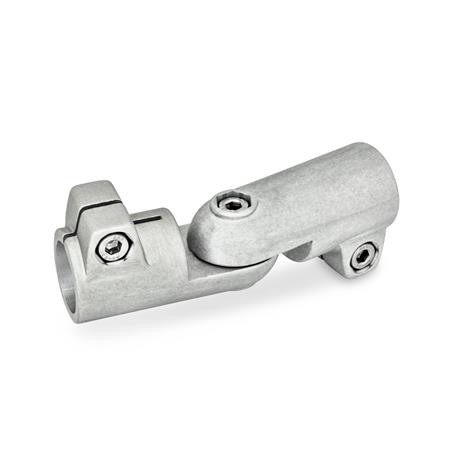

Identification No. 2 with 3 clamping screws DIN 912, stainless steel

CAD Viewer Technical Data

Product description

GN286 Swivel Clamp Connector Joint, Aluminium

The swivel clamp connector joint GN286 are an assembly of two swivel clamp connectors GN276.

For the type with a stepless adjustment (Type S) swivel clamp connectors with a centring step are used. Since the latter have an identical swivel width b, all bores d1/d2 can be combined as required.

The clamping bore is machined and designed for construction tubings GN990 or DIN2391, DIN2395 and DIN2462 respectively.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN912. They can be replaced by adjustable clamping levers GN911 (see table of dimensions).

Specification

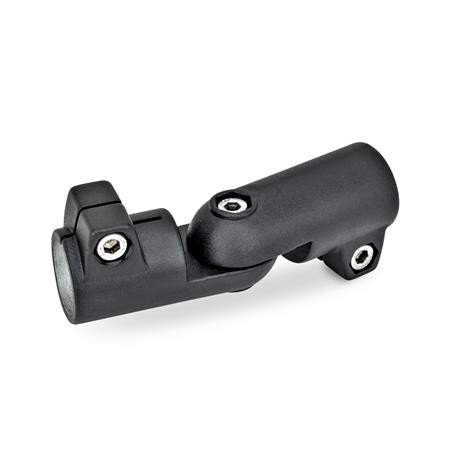

Aluminium - Plastic coated, black RAL 9005 textured finish SW or Blank, matt shot blasted BL

Clamping bores mechanically machined

Socket cap screws DIN912, are either steel, zinc plated or stainless steel AISI 304

Hexagon nuts DIN985 are either steel, zinc plated or in stainless steel AISI 304 to suit the screws.

Adjustable clamping levers GN911, zinc die casting

Inserts / distance bushings, stainless steel AISI 303
