GN30b, Angle Brackets, For Aluminium Profiles, b-Modular System, Aluminium

Choose your Part

Please select desired options to reveal part number, price and availability

Options

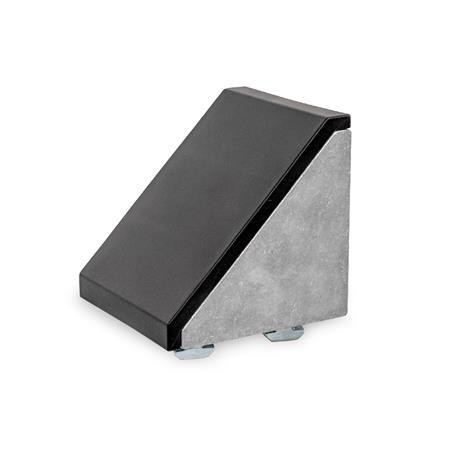

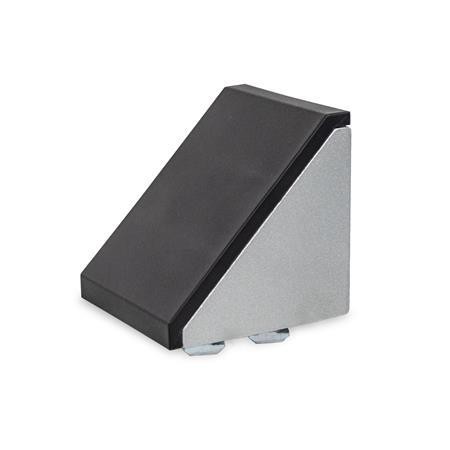

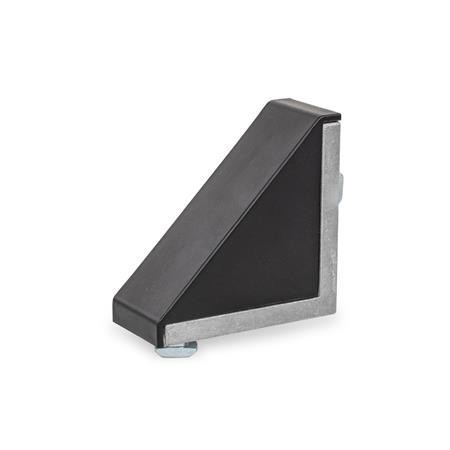

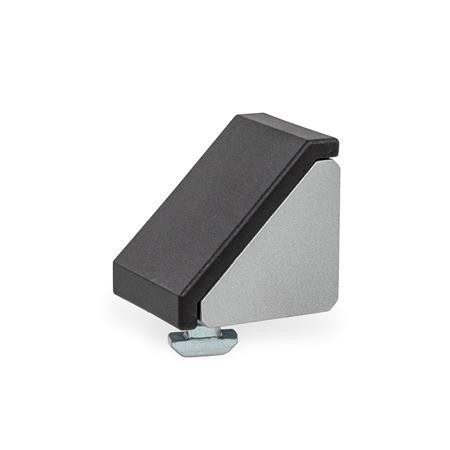

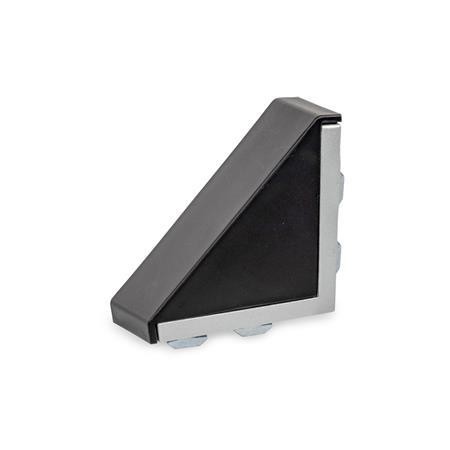

Type C - With fastening set and cover cap

Product Description

GN30b, Angle Brackets, For Aluminium Profiles, b-Modular System, Aluminium

Angle brackets GN 30b fasten aluminium profiles to objects such as tables and panels or at right angles to each other. Machining of the profile is not necessary.

The connection can be freely positioned and slid along the slot. To fasten the angle brackets to a panel or transversely to an aluminium profile, the guide steps must be broken off.

The cover caps look appealing and simplify cleaning.

Specification

• Angle bracket, aluminium
• Painted, white alumium AW
• Plain finish AB
• Fastening set - steel, zonc plated, blue / yellow passivated SZ
• T-slot nut and socket cap screw (for n=8)
• T-slot bolt and collar nut (for n=10)
• Cover cap - Plastic (Polyamide PA), Black S

* Slotted holes only on 60608
** Additional guide steps for further slot widths
