GN30i, Angle Brackets, For Aluminium Profiles, i-Modular System, With Accessory, Zinc Die Casting
CloseNextPreviousGN30i Angle Brackets for Aluminium Profiles, I-Modular System
Type C With Accessory, Size 30x30, 40x40

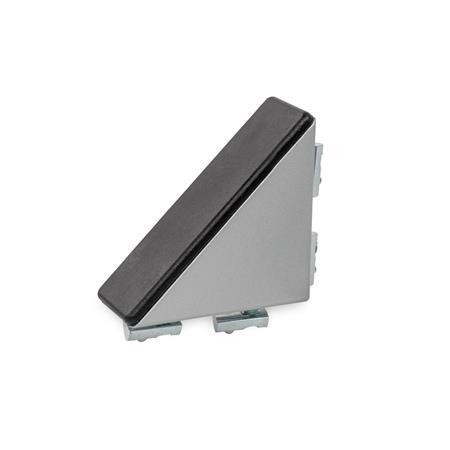

CloseNextPreviousGN30i Angle Brackets for Aluminium Profiles, I-Modular System
Type C With Accessory, Size 30x60, 40x80

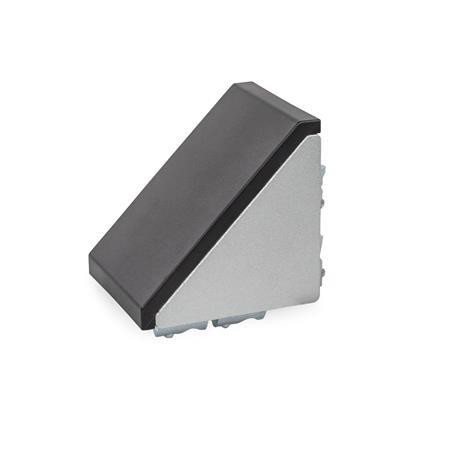

CloseNextPreviousGN30i Angle Brackets for Aluminium Profiles, I-Modular System
Type C With Accessory Size 80x80
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Type C - With fastening set and cover cap
Product Description
GN30i, Angle Brackets, For Aluminium Profiles, i-Modular System, With Accessory, Zinc Die Cast
Angle brackets GN30i fasten aluminium profiles to objects such as tables and panels or at right angles to each other. Machining of the profile is not necessary.
The connection can be freely positioned and slid along the slot. To fasten the angle brackets to a panel or transversely to an aluminium profile, the guide steps must be broken off.
The cover caps ensure a visually appealing appearance and simplify cleaning.
Specification
- Angle bracket - zinc die casting. Painted, white alumium ZW
- Screws and T-nuts - Steel, zinc plated, blue passivated SZ
- Cover caps - Plastic (Polyamide PA), black S
CAD Viewer
Technical Data
