GN33b Cube Connectors, For Aluminium Profiles, b-Modular System, Aluminium
CloseNextPreviousGN33b Cube Connectors For Aluminium Profiles, b-Modular System
ID 2 Connecting 2 Profiles, Type C With Fastening Set

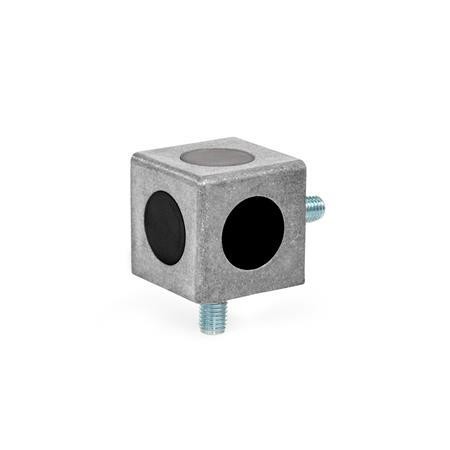

CloseNextPreviousGN33b Cube Connectors For Aluminium Profiles, b-Modular System
ID 3 Connecting 3 Profiles, Type C With Fastening Set
Choose your Part
Please select desired options to reveal part number, price and availability
Options
Identification Number 2 - Connecting 2 profiles
Identification number 3 - Connecting 3 profiles
Type C - With fastening set
Product Description
GN33b Cube Connectors, For Aluminium Profiles, b-Modular System, Aluminium
Cube connectors GN33b fasten two or three aluminum profiles together on their end faces, at right angles and with anti-twist protection. Machining of the profile is not necessary.
The self-forming thread of the screws should be lubricated to facilitate assembly. The end faces of the aluminum profiles are covered by the cube connectors, which ensures a visually appealing appearance.
If panels are used in the slot, they must be given a suitable corner chamfer.
Specification
- Housing - Aluminium, plain finish AB
- Screws - Steel, zinc plated, blue passivated SZ
- Cover caps - Plastic (Polyamide PA), black S
T = Torx
CAD Viewer
Technical Data
