GN751 Fork joints Aluminium coating bolt bearing non-wearing pin joint clevis GN 751

Standard Machine Elements > Universal, Ball Joints & Fork Joints > Fork Joints / Fork Heads
< Previous Product Next Product >

GN751 Fork Joints, Aluminium

 images/300/GN751-Fork-joints-Aluminium-drawing_H.png

Type KL - fork pin with KL - shaft safety

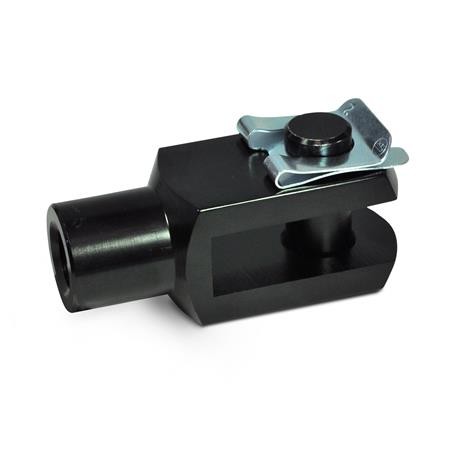

Type SL - fork pin with SL - shaft safety (only for d1 = 4 - 16)

Select Values to Buy:

Tech Spec:



GN 751 Fork Joint, Aluminium

These fork joints in aluminium consist of a fork head DIN71752 and a fork pin with shaft safety (KL or SL). Also known as a clevis joint.

Owing to the anodized coating of the fork head and of the bolt, the bearing is virtually non-wearing.

Specification

Aluminium AL anodized, black

KL or SL - shaft safety, spring steel, hardened and tempered, zinc plated, blue passivated

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1d2TypeMaterialabd3l2 l3l4Mass

GN751-4-8-M4-KL-AL48M4KLAL8481624210.006
GN751-4-8-M4-SL-AL48M4SLAL8481624210.006
GN751-5-10-M5-KL-AL510M5KLAL10592030260.01
GN751-5-10-M5-SL-AL510M5SLAL10592030260.008
GN751-6-12-M6-KL-AL612M6KLAL126102436310.007
GN751-6-12-M6-SL-AL612M6SLAL126102436310.015
GN751-8-16-M8-KL-AL816M8KLAL168143248420.01
GN751-8-16-M8-SL-AL816M8SLAL168143248420.017
GN751-10-20-M10-KL-AL1020M10KLAL2010184060520.03
GN751-10-20-M10-SL-AL1020M10SLAL2010184060520.09
GN751-12-24-M12-KL-AL1224M12KLAL2412204872620.144
GN751-12-24-M12-SL-AL1224M12SLAL2412204872620.144
GN751-14-28-M14-KL-AL1428M14KLAL2814245685720.22
GN751-14-28-M14-SL-AL1428M14SLAL2814245685720.219
GN751-16-32-M16-KL-AL1632M16KLAL3216266496830.335
GN751-16-32-M16-SL-AL1632M16SLAL3216266496830.335
