GN751 Fork Joint, Steel





Type B - Fork pin with snap-on spring

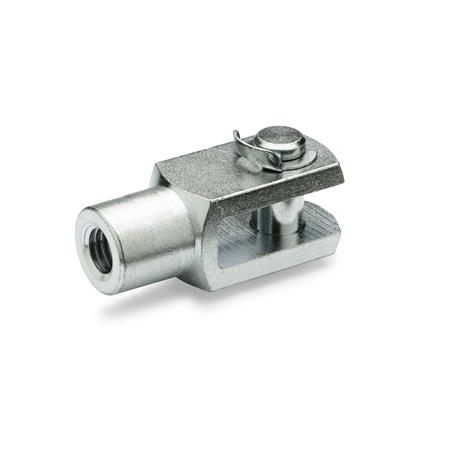

Type KL - Fork pin with KL shaft safety

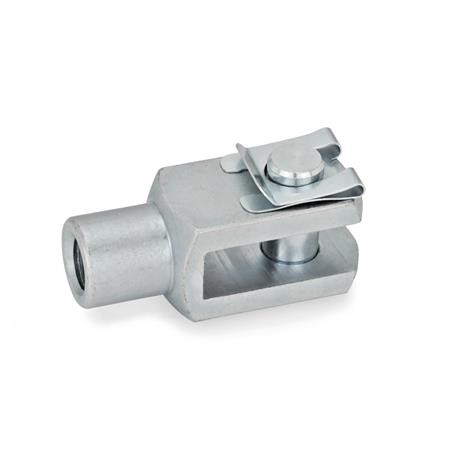

Type SL - Fork pin with SL shaft safety (only for d1 = 4 - 16)

Select Values to Buy:

Tech Spec:



GN751 Fork Joints, Steel

These fork joints consist of a fork head DIN 71752 and a fork pin with shaft safetys (type KL and SL) or a fork pin with snap-on spring (Type B). Both versions can be dismantled without tools.

Size d1 = 12 is supplied with a fine thread M12x1,5 according to DIN. In practice, however, M12x1,25 is preferred. Size d1= 20 is available in addition to the DIN standard

Specification

Steel, zinc plated, blue passivated, tensile strength 500 N/mm2.

Shaft safetys - spring sheet metal, hardened and tempered, zinc plated, blue passivated.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1l1d2abd3l2l3l4MaterialTypeMass

GN751-4-8-M4-B48M484816216BST0.007
GN751-4-8-M4-KL48M484816216KLST0.006
GN751-4-8-M4-SL48M484816296SLST0.006
GN751-4-16-M4-KL416M484824296KLST0.011
GN751-4-16-M4-SL416M484824296SLST0.011
GN751-5-10-M5L-B510M5L105920267.5BST0.014
GN751-5-10-M5L-KL510M5L105920267.5KLST0.014
GN751-5-10-M5L-SL510M5L105920267.5SLST0.014
GN751-5-10-M5-B510M5105920267.5BST0.013
GN751-5-10-M5-KL510M5105920267.5KLST0.01
GN751-5-10-M5-SL510M5105920267.5SLST0.01
GN751-5-20-M5L-B520M5L105930367.5BST0.018
GN751-5-20-M5L-KL520M5L105930367.5KLST0.018
GN751-5-20-M5L-SL520M5L105930367.5SLST0.018
GN751-5-20-M5-B520M5105930367.5BST0.015
GN751-5-20-M5-KL520M5105930367.5KLST0.018
GN751-5-20-M5-SL520M5105930367.5SLST0.018
GN751-6-12-M6L-B612M6L1261024319BST0.02
GN751-6-12-M6L-KL612M6L1261024319KLST0.021
GN751-6-12-M6L-SL612M6L1261024319SLST0.021
GN751-6-12-M6-B612M61261024319BST0.019
GN751-6-12-M6-KL612M61261024319KLST0.02
GN751-6-12-M6-SL612M61261024319SLST0.02
GN751-6-24-M6L-B624M6L1261036319BST0.03
GN751-6-24-M6L-KL624M6L1261036319KLST0.027
GN751-6-24-M6L-SL624M6L1261036319SLST0.027
GN751-6-24-M6-B624M61261036319BST0.027
GN751-6-24-M6-KL624M61261036319KLST0.025
GN751-6-24-M6-SL624M61261036319SLST0.028
GN751-8-16-M8L-B816M8L16814324212BST0.05
GN751-8-16-M8L-KL816M8L16814324212KLST0.045
GN751-8-16-M8L-SL816M8L16814324212SLST0.045
GN751-8-16-M8F-B816M8F16814324212BST0.049
GN751-8-16-M8F-KL816M8F16814324212KLST0.048
GN751-8-16-M8F-SL816M8F16814324212SLST0.048
GN751-8-16-M8-B816M816814324212BST0.047
GN751-8-16-M8-KL816M816814324212KLST0.047
GN751-8-16-M8-SL816M816814324212SLST0.045
GN751-8-32-M8L-B832M8L16814485812BST0.065
GN751-8-32-M8L-KL832M8L16814485812KLST0.076
GN751-8-32-M8L-SL832M8L16814485812SLST0.064
GN751-8-32-M8F-B832M8F16814485812BST0.066
GN751-8-32-M8F-KL832M8F16814485812KLST0.064
GN751-8-32-M8F-SL832M8F16814485812SLST0.064
GN751-8-32-M8-B832M816814485812BST0.064
GN751-8-32-M8-KL832M816814485812KLST0.062
GN751-8-32-M8-SL832M816814485812SLST0.062
GN751-10-20-M10L-B1020M10L201018405215BST0.09
GN751-10-20-M10L-KL1020M10L201018405215KLST0.093
GN751-10-20-M10L-SL1020M10L201018405215SLST0.095
GN751-10-20-M10F-B1020M10F201018405215BST0.09
GN751-10-20-M10F-KL1020M10F201018405215KLST0.093
GN751-10-20-M10F-SL1020M10F201018405215SLST0.093
GN751-10-20-M10-B1020M10201018405215BST0.09
GN751-10-20-M10-KL1020M10201018405215KLST0.092
GN751-10-20-M10-SL1020M10201018405215SLST0.089
GN751-10-40-M10L-B1040M10L201018607215BST0.12
GN751-10-40-M10L-KL1040M10L201018607215KLST0.122
GN751-10-40-M10L-SL1040M10L201018607215SLST0.122
GN751-10-40-M10F-B1040M10F201018607215BST0.124
GN751-10-40-M10F-KL1040M10F201018607215KLST0.12
GN751-10-40-M10F-SL1040M10F201018607215SLST0.12
GN751-10-40-M10-B1040M10201018607215BST0.125
GN751-10-40-M10-KL1040M10201018607215KLST0.123
GN751-10-40-M10-SL1040M10201018607215SLST0.123
GN751-12-24-M12L-B1224M12L241220486218BST0.148
GN751-12-24-M12L-KL1224M12L241220486218KLST0.146
GN751-12-24-M12L-SL1224M12L241220486218SLST0.146
GN751-12-24-M12F-B1224M12F241220486218BST0.12
GN751-12-24-M12F-KL1224M12F241220486218KLST0.147
GN751-12-24-M12F-SL1224M12F241220486218SLST0.147
GN751-12-24-M12-B1224M12241220486218BST0.14
GN751-12-24-M12-KL1224M12241220486218KLST0.144
GN751-12-24-M12-SL1224M12241220486218SLST0.144
GN751-12-48-M12L-B1248M12L241220728618BST0.206
GN751-12-48-M12L-KL1248M12L241220728618KLST0.2
GN751-12-48-M12L-SL1248M12L241220728618SLST0.22
GN751-12-48-M12F-B1248M12F241220728618BST0.204
GN751-12-48-M12F-KL1248M12F241220728618KLST0.199
GN751-12-48-M12F-SL1248M12F241220728618SLST0.199
GN751-12-48-M12-B1248M12241220728618BST0.2
GN751-12-48-M12-KL1248M12241220728618KLST0.197
GN751-12-48-M12-SL1248M12241220728618SLST0.18
GN751-14-28-M14L-B1428M14L281424567222.5BST0.221
GN751-14-28-M14L-KL1428M14L281424567222.5KLST0.219
GN751-14-28-M14L-SL1428M14L281424567222.5SLST0.219
GN751-14-28-M14F-B1428M14F281424567222.5BST0.218
GN751-14-28-M14F-KL1428M14F281424567222.5KLST0.219
GN751-14-28-M14F-SL1428M14F281424567222.5SLST0.219
GN751-14-28-M14-B1428M14281424567222.5BST0.219
GN751-14-28-M14-KL1428M14281424567222.5KLST0.22
GN751-14-28-M14-SL1428M14281424567222.5SLST0.21
GN751-14-56-M14L-B1456M14L2814248510122.5BST0.302
GN751-14-56-M14L-KL1456M14L2814248510122.5KLST0.295
GN751-14-56-M14L-SL1456M14L2814248510122.5SLST0.295
GN751-14-56-M14F-B1456M14F2814248510122.5BST0.298
GN751-14-56-M14F-KL1456M14F2814248510122.5KLST0.291
GN751-14-56-M14F-SL1456M14F2814248510122.5SLST0.291
GN751-14-56-M14-B1456M142814248510122.5BST0.3
GN751-14-56-M14-KL1456M142814248510122.5KLST0.298
GN751-14-56-M14-SL1456M142814248510122.5SLST0.298
GN751-16-32-M16L-B1632M16L321626648324BST0.33
GN751-16-32-M16L-KL1632M16L321626648324KLST0.335
GN751-16-32-M16L-SL1632M16L321626648324SLST0.335
GN751-16-32-M16F-B1632M16F321626648324BST0.34
GN751-16-32-M16F-KL1632M16F321626648324KLST0.335
GN751-16-32-M16F-SL1632M16F321626648324SLST0.335
GN751-16-32-M16-B1632M16321626648324BST0.34
GN751-16-32-M16-KL1632M16321626648324KLST0.33
GN751-16-32-M16-SL1632M16321626648324SLST0.337
GN751-16-64-M16L-B1664M16L3216269611524BST0.467
GN751-16-64-M16L-KL1664M16L3216269611524KLST0.463
GN751-16-64-M16L-SL1664M16L3216269611524SLST0.463
GN751-16-64-M16F-B1664M16F3216269611524BST0.471
GN751-16-64-M16F-KL1664M16F3216269611524KLST0.463
GN751-16-64-M16F-SL1664M16F3216269611524SLST0.463
GN751-16-64-M16-B1664M163216269611524BST0.467
GN751-16-64-M16-KL1664M163216269611524KLST0.464
GN751-16-64-M16-SL1664M163216269611524SLST0.46
GN751-20-40-M20L-KL2040M20L4020348010530KLST0.66
GN751-20-40-M20-KL2040M204020348010530KLST0.66
