GN7802 Spur Gears, Plastic, Pressure Angle 20 Degrees, Module 2
CloseNextPreviousGN7802 Spur Gears, Module 0.5

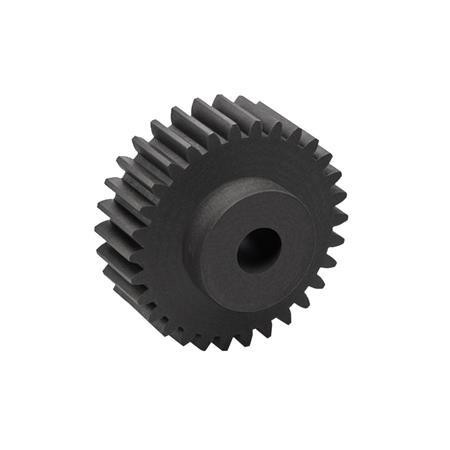

Tooth Count ≤ 30, Colour VDB Visually Detectable
CloseNextPreviousGN7802 Spur Gears, Module 2

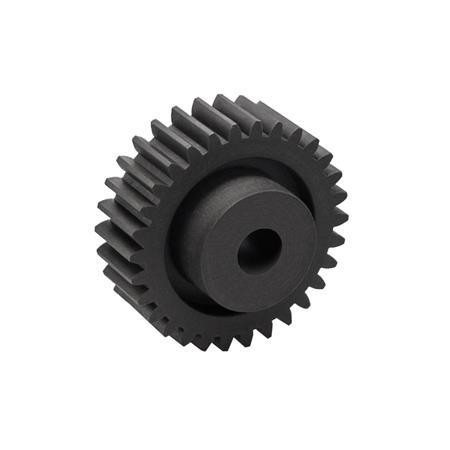

Tooth Count ≥ 31 Colour VDB Visually Detectable
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description
GN7802 Spur Gears, Plastic, Pressure Angle 20 Degrees, Module 2
Spur gears GN 7802, in plastic, reduce both weight and noise while offering high corrosion resistance.
Spur gears of polyamide allow the transmission of significantly higher torques compared with gears made of other plastics. This makes them especially suited for applications with high torques at low speeds.
The spur gears have involute toothing with a pressure angle of 20°. More details about the design as well as shaping the hub or machining a keyway can be found in the technical information.
Specification
- Plastic Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 120ºC, grey GR

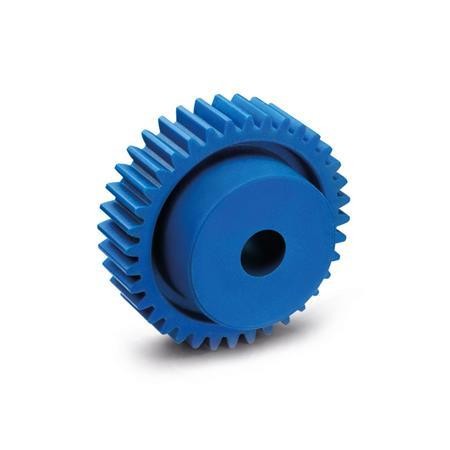

- Plastic Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 120ºC, FDA compliant plastic granulate, Blue, RAL 5005, matte finish, visually detectable VDB
On Request
With keyway
With bore H9
CAD Viewer
Technical Data
