Mould Components > Urelast & Rubber Products
Next Product >

ES Elastomer Springs, Chloroprene Rubber, Urelast, 70, 80 & 92 Shore, DINISO10069-1

images/300/ES-elastomer-springs_W.png

Select Values to Buy:

Tech Spec:


ES Urelast Springs, DIN ISO 10069-1

These long lasting springs are made from top quality urelast, are extremely hardwearing and as such are very cost effective. They are a safe alternative to compression die springs, and have anti-vibration properties. The material used has exceptionally good mechanical characteristics, with very good resistance to atmospheric and environmental influences.

Specification

Urelast UN80 - tempered polyurethane rubber 80 Shore A.

Urelast U90 - tempered polyurethane rubber, highly resistant to dynamic load, 92 Shore A, in accordance with the specifications of DIN ISO 10069-1.

Resistant to oils, greases, solvents, and fuel. Not resistant to acids or alkalines.

Urelast is also known by the tradename Bayflex®.



CR Chloroprene Rubber Spring

These long lasting springs are made from top quality chloroprene rubber, are extremely resistant to aging and as such are very cost effective. They are a safe alternative to compression die springs, and have anti-vibration properties. The material used has a very good resistance to atmospheric and environmental influences.

Specification

295 CR Chloroprene rubber CR, 70 Shore A,  in accordance with the specifications of DIN ISO 10069-1.

Resistant to oils & greases, acids, alkalines and some solvents. Not resistant to fuel.

Chloroprene is also known by the trade name Neoprene®.

Select / Deselect Visible Columns
Close
HideØ outside DShow
HideØ inside dShow
HideLength lShow
HideTypeShow
HidereferenceShow

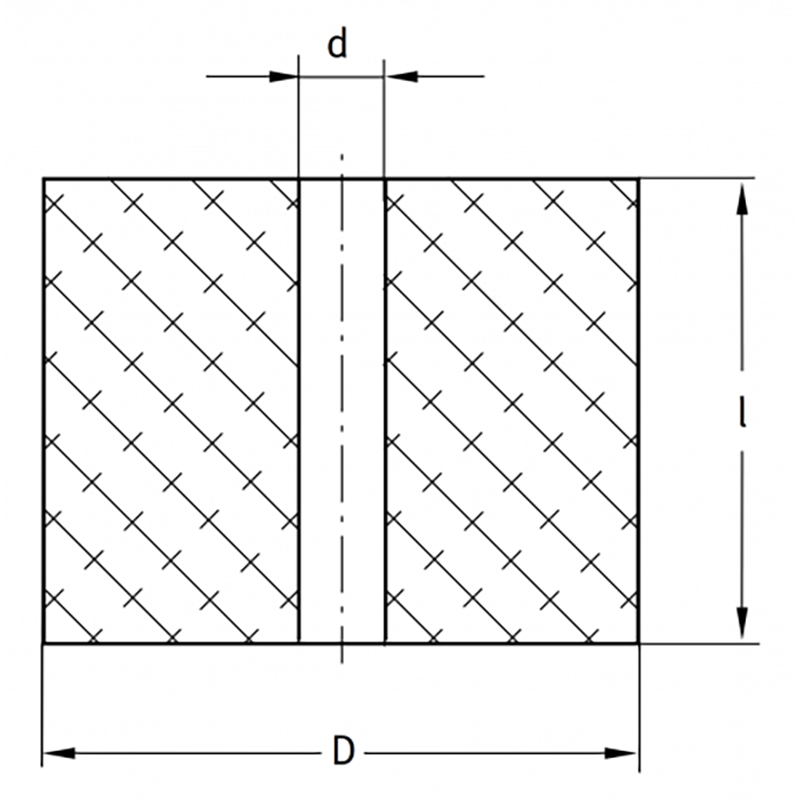

PartCodeØ outside DØ inside dLength lTypereferenceMass

ES-16-12-CR166.512CRFB700161200.003
ES-16-12-UN80166.512UN80FB720161280.003
ES-16-12-U90166.512U90FB720161200.003
ES-16-16-CR166.516CRFB700161600.004
ES-16-16-UN80166.516UN80FB720161680.003
ES-16-16-U90166.516U90FB720161600.003
ES-16-20-CR166.520CRFB700162000.004
ES-16-20-UN80166.520UN80FB720162080.004
ES-16-20-U90166.520U90FB720162000.004
ES-16-25-CR166.525CRFB700162500.006
ES-16-25-UN80166.525UN80FB720162580.005
ES-16-25-U90166.525U90FB720162500.005
ES-20-16-CR208.516CRFB700201600.006
ES-20-16-UN80208.516UN80FB720201680.005
ES-20-16-U90208.516U90FB720201600.005
ES-20-20-CR208.520CRFB700202000.008
ES-20-20-UN80208.520UN80FB720202080.006
ES-20-20-U90208.520U90FB720202000.006
ES-20-25-CR208.525CRFB700202500.008
ES-20-25-UN80208.525UN80FB720202580.008
ES-20-25-U90208.525U90FB720202500.008
ES-20-32-CR208.532CRFB700203200.012
ES-20-32-UN80208.532UN80FB720203280.01
ES-20-32-U90208.532U90FB720203200.01
ES-25-20-CR2510.520CRFB700252000.011
ES-25-20-UN802510.520UN80FB720252080.01
ES-25-20-U902510.520U90FB720252000.01
ES-25-25-CR2510.525CRFB700252500.014
ES-25-25-UN802510.525UN80FB720252580.012
ES-25-25-U902510.525U90FB720252500.012
ES-25-32-CR2510.532CRFB700253200.018
ES-25-32-UN802510.532UN80FB720253280.016
ES-25-32-U902510.532U90FB720253200.016
ES-25-40-CR2510.540CRFB700254000.023
ES-25-40-UN802510.540UN80FB720254080.022
ES-25-40-U902510.540U90FB720254000.022
ES-32-32-CR3213.532CRFB700323200.038
ES-32-32-UN803213.532UN80FB720323280.034
ES-32-32-U903213.532U90FB720323200.034
ES-32-40-CR3213.540CRFB700324000.04
ES-32-40-UN803213.540UN80FB720324080.034
ES-32-40-U903213.540U90FB720324000.034
ES-32-50-CR3213.550CRFB700325000.05
ES-32-50-UN803213.550UN80FB720325080.043
ES-32-50-U903213.550U90FB720325000.043
ES-32-63-CR3213.563CRFB700326300.06
ES-32-63-UN803213.563UN80FB720326380.054
ES-32-63-U903213.563U90FB720326300.054
ES-40-32-CR4013.532CRFB700403200.055
ES-40-32-UN804013.532UN80FB720403280.045
ES-40-32-U904013.532U90FB720403200.045
ES-40-40-CR4013.540CRFB700404000.065
ES-40-40-UN804013.540UN80FB720404080.057
ES-40-40-U904013.540U90FB720404000.057
ES-40-50-CR4013.550CRFB700405000.08
ES-40-50-UN804013.550UN80FB720405080.071
ES-40-50-U904013.550U90FB720405000.071
ES-40-63-CR4013.563CRFB700406300.1
ES-40-63-UN804013.563UN80FB720406380.105
ES-40-63-U904013.563U90FB720406300.105
ES-40-80-CR4013.580CRFB700408000.125
ES-40-80-UN804013.580UN80FB720408080.125
ES-40-80-U904013.580U90FB720408000.125
ES-50-32-CR501732CRFB700503200.08
ES-50-32-UN80501732UN80FB720503280.07
ES-50-32-U90501732U90FB720503200.07
ES-50-40-CR501740CRFB700504000.1
ES-50-40-UN80501740UN80FB720504080.086
ES-50-40-U90501740U90FB720504000.086
ES-50-50-CR501750CRFB700505000.125
ES-50-50-UN80501750UN80FB720505080.11
ES-50-50-U90501750U90FB720505000.11
ES-50-63-CR501763CRFB700506300.153
ES-50-63-UN80501763UN80FB720506380.138
ES-50-63-U90501763U90FB720506300.138
ES-50-80-CR501780CRFB700508000.2
ES-50-80-UN80501780UN80FB720508081.5
ES-50-80-U90501780U90FB720508001.5
ES-50-100-CR5017100CRFB700501000.245
ES-50-100-UN805017100UN80FB720501080.22
ES-50-100-U905017100U90FB720501000.22
ES-63-32-CR631732CRFB700633200.125
ES-63-32-UN80631732UN80FB720633280.11
ES-63-32-U90631732U90FB720633200.11
ES-63-40-CR631740CRFB700634000.16
ES-63-40-UN80631740UN80FB720634080.15
ES-63-40-U90631740U90FB720634000.15
ES-63-50-CR631750CRFB700635000.2
ES-63-50-UN80631750UN80FB720635080.18
ES-63-50-U90631750U90FB720635000.18
ES-63-63-CR631763CRFB700636300.255
ES-63-63-UN80631763UN80FB720636380.23
ES-63-63-U90631763U90FB720636300.23
ES-63-80-CR631780CRFB700638000.32
ES-63-80-UN80631780UN80FB720638080.3
ES-63-80-U90631780U90FB720638000.3
ES-63-100-CR6317100CRFB700631000.396
ES-63-100-UN806317100UN80FB720631080.36
ES-63-100-U906317100U90FB720631000.36
ES-63-125-CR6317125CRFB700631250.495
ES-63-125-UN806317125UN80FB720631280.45
ES-63-125-U906317125U90FB720631250.45
ES-80-32-CR802132CRFB700803200.215
ES-80-32-UN80802132UN80FB720803280.195
ES-80-32-U90802132U90FB720803200.195
ES-80-40-CR802140CRFB700804000.2
ES-80-40-UN80802140UN80FB720804080.24
ES-80-40-U90802140U90FB720804000.24
ES-80-50-CR802150CRFB700805000.315
ES-80-50-UN80802150UN80FB720805080.31
ES-80-50-U90802150U90FB720805000.31
ES-80-63-CR802163CRFB700806300.42
ES-80-63-UN80802163UN80FB720806380.37
ES-80-63-U90802163U90FB720806300.37
ES-80-80-CR802180CRFB700808000.52
ES-80-80-UN80802180UN80FB720808080.485
ES-80-80-U90802180U90FB720808000.485
ES-80-100-CR8021100CRFB700801000.655
ES-80-100-UN808021100UN80FB720801080.59
ES-80-100-U908021100U90FB720801000.59
ES-80-125-CR8021125CRFB700801250.82
ES-80-125-UN808021125UN80FB720801280.73
ES-80-125-U908021125U90FB720801250.73
ES-100-32-CR1002132CRFB701003200.334
ES-100-32-UN801002132UN80FB721003280.3
ES-100-32-U901002132U90FB721003200.3
ES-100-40-CR1002140CRFB701004000.42
ES-100-40-UN801002140UN80FB721004080.38
ES-100-40-U901002140U90FB721004000.38
ES-100-50-CR1002150CRFB701005000.52
ES-100-50-UN801002150UN80FB721005080.48
ES-100-50-U901002150U90FB721005000.48
ES-100-63-CR1002163CRFB701006300.6
ES-100-63-UN801002163UN80FB721006380.6
ES-100-63-U901002163U90FB721006300.6
ES-100-80-CR1002180CRFB701008000.86
ES-100-80-UN801002180UN80FB721008080.75
ES-100-80-U901002180U90FB721008000.75
ES-100-100-CR10021100CRFB701001001.06
ES-100-100-UN8010021100UN80FB721001080.928
ES-100-100-U9010021100U90FB721001000.928
ES-100-125-CR10021125CRFB701001251.33
ES-100-125-UN8010021125UN80FB721001281.17
ES-100-125-U9010021125U90FB721001251.17
ES-125-32-CR1252732CRFB701253200.52
ES-125-32-UN801252732UN80FB721253280.55
ES-125-32-U901252732U90FB721253200.55
ES-125-40-CR1252740CRFB701254000.67
ES-125-40-UN801252740UN80FB721254080.6
ES-125-40-U901252740U90FB721254000.6
ES-125-50-CR1252750CRFB701255000.83
ES-125-50-UN801252750UN80FB721255080.73
ES-125-50-U901252750U90FB721255000.73
ES-125-63-CR1252763CRFB701256301.04
ES-125-63-UN801252763UN80FB721256381.16
ES-125-63-U901252763U90FB721256301.16
ES-125-80-CR1252780CRFB701258001.31
ES-125-80-UN801252780UN80FB721258081.16
ES-125-80-U901252780U90FB721258001.16
ES-125-100-CR12527100CRFB701251001.4
ES-125-100-UN8012527100UN80FB721251081.5
ES-125-100-U9012527100U90FB721251001.5
ES-125-125-CR12527125CRFB701251252.04
ES-125-125-UN8012527125UN80FB721251281.84
ES-125-125-U9012527125U90FB721251251.84
ES-125-160-CR12527160CRFB701251602.61
ES-125-160-UN8012527160UN80FB721251682.4
ES-125-160-U9012527160U90FB721251602.4
ES-50-30-U900.066
