5432 Guide Pillar Demountable Bottom Retained ISO9182 Standard

images/300/5432_H.png

Select Values to Buy:

Tech Spec:

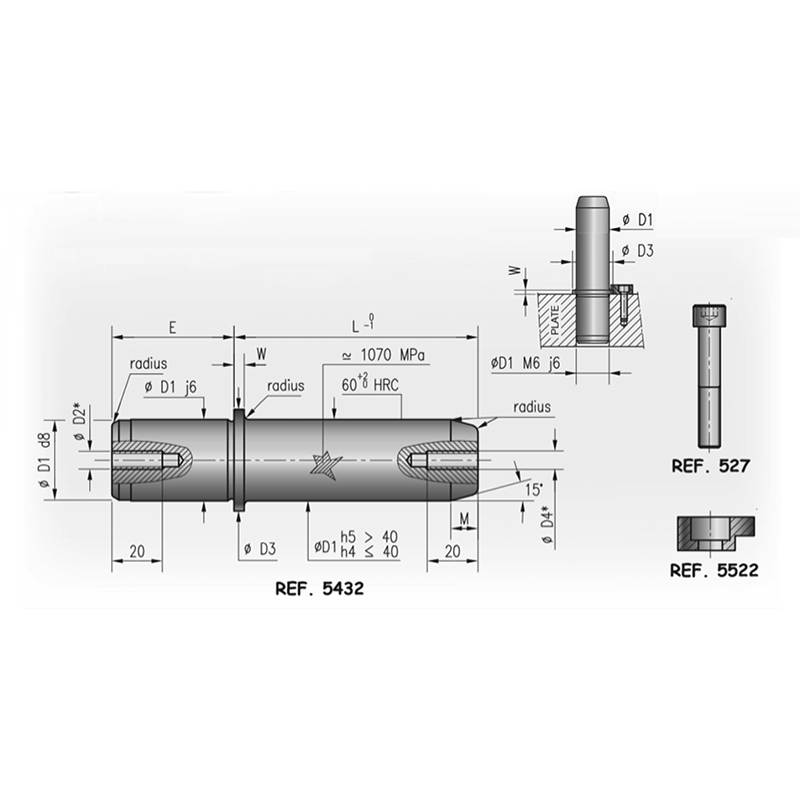

5432 Guide Pillar, Demountable Bottom Retained ISO 9182 Standard

These guide pillars or pins are used in press machinery, for accurate, precise manufacturing. Made to ISO 9182 standards. Demountable for fast efficient changes of use. They are manufactured from top quality steel, for hardwearing qualities and an extended service life. Bottom retained.

5432's guide pillars are sold as assemblies (including clamps 5522 and cap screws)

Specification

Steel

How to order: Ref: 5432 D1 = 32 L = 200 => 5432-032-200

Select / Deselect Visible Columns
PartCodeD1LRef 527D2D3D4EWMType 5522No. 5522Mass

5432-019-0801980M5x12M826M52046230
5432-019-10019100M5x12M826M52046230
5432-019-11219112M5x12M826M52046230
5432-019-12519125M5x12M826M52046230
5432-019-14019140M5x12M826M52046230
5432-019-16019160M5x12M826M52046230
5432-020-0802080M5x12M826M52046230.285
5432-020-10020100M5x12M826M52046230.335
5432-020-11220112M5x12M826M52046230.346
5432-020-12520125M5x12M826M52046230.395
5432-020-14020140M5x12M826M52046230.435
5432-020-16020160M5x12M826M52046230.48
5432-024-0802480M5x12M832M62548230
5432-024-10024100M5x12M832M62548230
5432-024-11224112M5x12M832M62548230
5432-024-12524125M5x12M832M62548230
5432-024-14024140M5x12M832M62548230
5432-024-16024160M5x12M832M62548230
5432-024-18024180M5x12M832M62548230
5432-025-0802580M5x12M832M62548230.44
5432-025-10025100M5x12M832M62548230.515
5432-025-11225112M5x12M832M62548230.565
5432-025-12525125M5x12M832M62548230.615
5432-025-14025140M5x12M832M62548230.675
5432-025-16025160M5x12M832M62548230.75
5432-025-18025180M5x12M832M62548230.825
5432-030-10030100M6x16M840M832510330
5432-030-11230112M6x16M840M832510330
5432-030-12530125M6x16M840M832510330
5432-030-14030140M6x16M840M832510330
5432-030-16030160M6x16M840M832510330
5432-030-18030180M6x16M840M832510330
5432-030-20030200M6x16M840M832510330
5432-030-22430224M6x16M840M832510330
5432-030-25030250M6x16M840M832510330
5432-030-28030280M6x16M840M832510330
5432-032-10032100M6x16M840M832510330.887
5432-032-11232112M6x16M840M832510330.98
5432-032-12532125M6x16M840M832510331.059
5432-032-14032140M6x16M840M832510331.154
5432-032-16032160M6x16M840M832510331.27
5432-032-18032180M6x16M840M832510331.33
5432-032-20032200M6x16M840M832510331.5
5432-032-22432224M6x16M840M832510331.669
5432-032-25032250M6x16M840M832510331.849
5432-032-28032280M6x16M840M832510332.039
5432-038-11238112M6x16M850M1040512340
5432-038-12538125M6x16M850M1040512340
5432-038-14038140M6x16M850M1040512340
5432-038-16038160M6x16M850M1040512340
5432-038-18038180M6x16M850M1040512340
5432-038-20038200M6x16M850M1040512340
5432-038-22438224M6x16M850M1040512340
5432-038-25038250M6x16M850M1040512340
5432-038-28038280M6x16M850M1040512340
5432-038-31538315M6x16M850M1040512340
5432-040-11240112M6x16M850M1040512341.587
5432-040-12540125M6x16M850M1040512341.717
5432-040-14040140M6x16M850M1040512341.862
5432-040-16040160M6x16M850M1040512342.057
5432-040-18040180M6x16M850M1040512342.257
5432-040-20040200M6x16M850M1040512342.452
5432-040-22440224M6x16M850M1040512342.692
5432-040-25040250M6x16M850M1040512342.947
5432-040-28040280M6x16M850M1040512343.242
5432-040-31540315M6x16M850M1040512343.242
5432-048-12548125M8x20M1063M1250616440
5432-048-14048140M8x20M1063M1250616440
5432-048-16048160M8x20M1063M1250616440
5432-048-18048180M8x20M1063M1250616440
5432-048-20048200M8x20M1063M1250616440
5432-048-22448224M8x20M1063M1250616440
5432-048-25048250M8x20M1063M1250616440
5432-048-28048280M8x20M1063M1250616440
5432-048-31548315M8x20M1063M1250616440
5432-048-35548355M8x20M1063M1250616440
5432-050-12550125M8x20M1063M1250616442.844
5432-050-14050140M8x20M1063M1250616443.074
5432-050-16050160M8x20M1063M1250616443.384
5432-050-18050180M8x20M1063M1250616443.689
5432-050-20050200M8x20M1063M1250616443.998
5432-050-22450224M8x20M1063M1250616444.368
5432-050-25050250M8x20M1063M1250616444.773
5432-050-28050280M8x20M1063M1250616445.228
5432-050-31550315M8x20M1063M1250616445.773
5432-050-35550355M8x20M1063M1250616446.388
5432-063-14063140M10x20M1276M16631016545.274
5432-063-16063160M10x20M1276M16631016545.794
5432-063-18063180M10x20M1276M16631016546.254
5432-063-20063200M10x20M1276M16631016546.749
5432-063-22463224M10x20M1276M16631016547.339
5432-063-25063250M10x20M1276M16631016547.969
5432-063-28063280M10x20M1276M16631016548.704
5432-063-31563315M10x20M1276M16631016549.559
5432-063-35563355M10x20M1276M166310165410.554
5432-063-40063400M10x20M1276M166310165411.654
5432-080-31580315M10x20M2090M20601016540
5432-080-35580355M10x20M2090M20601016540
5432-080-40080400M10x20M2090M20601016540
