5736 Guide Bushes Tapered ISO9182 standard 5731 guide pillars ISO 9182

Press Tool Standard Parts > Guide Pillars (Pins), Bushes & Cages, ISO, IEM, JIS standards > Premium Guide Pillars, Ball Cages, Bushes & Accessories
< Previous Product Next Product >

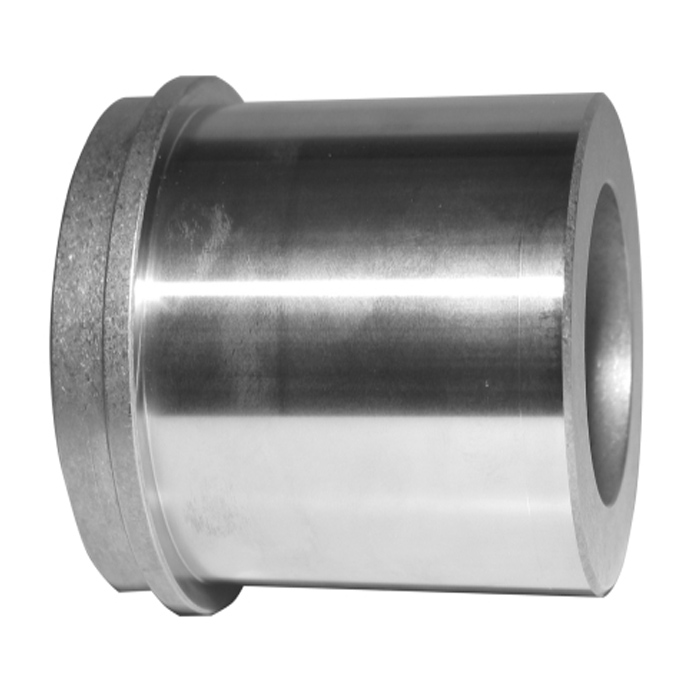

5736 Guide Bush, Tapered, ISO9182 Standard, For Tapered Guide Pillar 5726





Select Values to Buy:

Tech Spec:



5736 Guide Bush, Tapered, ISO 9182 Standard, For Tapered Guide Pillar 5726

These top quality tapered guide bushes are designed for use with tapered guide pillars 5726

5736 guide bushes are sold as assemblies (including clamps 5522 and cap screws).

Specification

Steel

How to Order

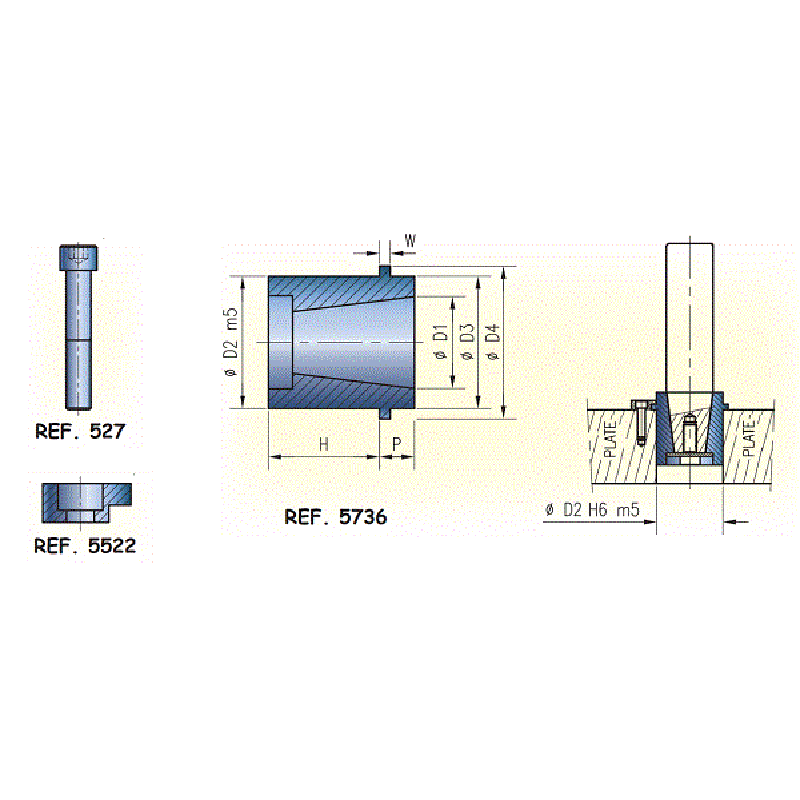

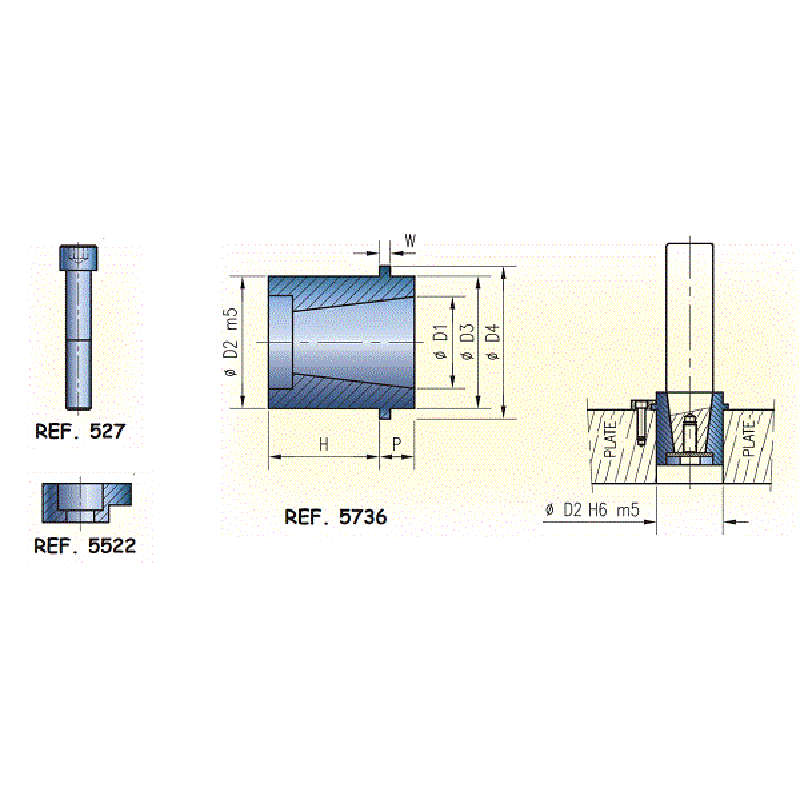

Ref:  5736   D1 = 25   H = 38   = >   5736-025-038

Select / Deselect Visible Columns
PartCodeD1HD2D3D4WPMass

5736-012-02312232222253100.14
5736-016-03016302829323100.15
5736-020-03820383232364120.238
5736-025-03825384041454120.363
5736-025-04825484041454120.438
5736-032-04832485051565150.732
5736-032-06132615051565150.884
5736-040-04840416365705151.109
5736-040-06140616365705151.344
5736-040-07840786365705151.664
5736-050-06150618084906182.269
5736-050-07850788084906182.784
5736-063-07863789010011010203.474
5736-063-09863989010011010204.159
5736-080-098809811012513510205.589
#32014.65~32016.76#
