ARTST Headed Punch Retainer for Shaped Punch, with Centre Location Locking Devices (CNC)

Close Next Previous

Close Next Previous

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

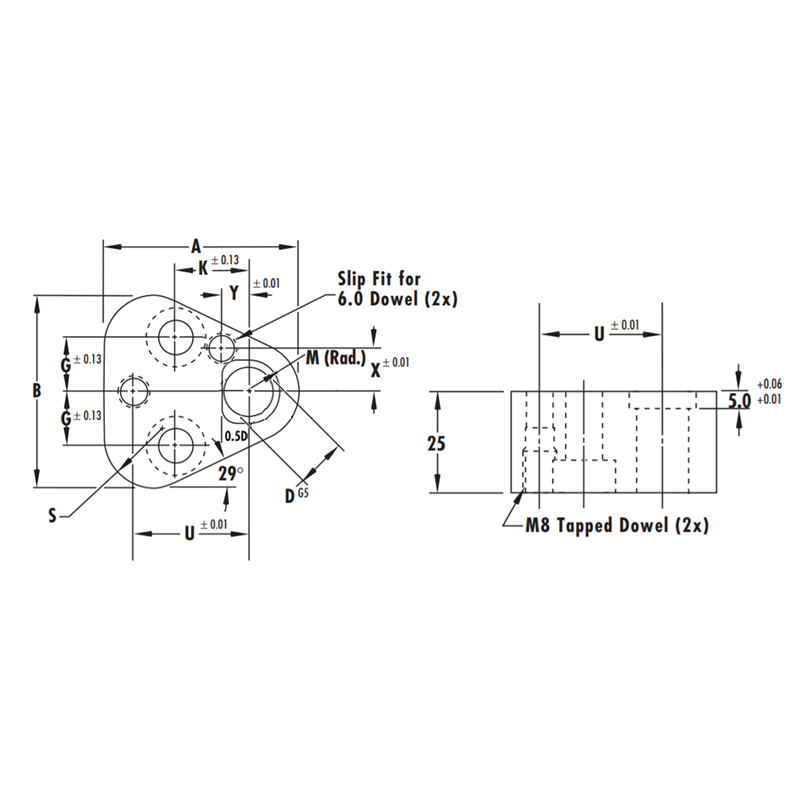

ARTST Headed Punch Retainer

These headed punch retainers, ARTST, are used for shaped punches with centre locking location devices. They give higher quality parts, longer punch life & drastically reduced downtime.

For the best accuracy use our Standard Centre Dowel Punches & Pilots.

Specification

Steel - 4140, SCM440 equiv. - 35-45HRC

Retainer includes: 2 Threaded dowels, 2 screws

On Request

Shim plates
