Product Description

GN425.1 Cabinet U Shape Handle, Offset

These cabinet U handles, GN 425.1, have an offset shape, which is useful when access is restricted.

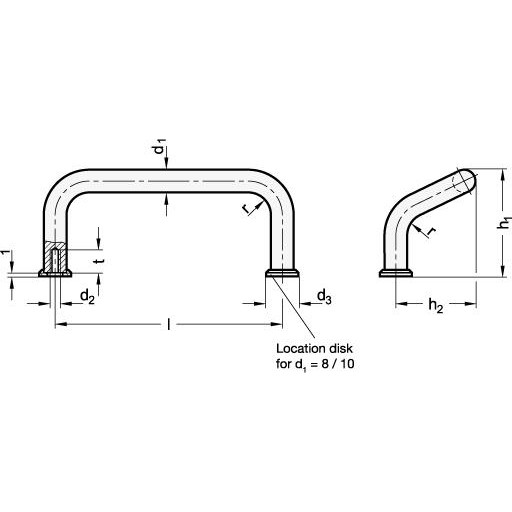

The 8mm and 10mm diameters are supplied complete with two stainless steel location discs, which guarantees a perfect location even with large holes in the cabinet.

GN425.1 in a d1 of 8mm and a length of 55mm is suitable for a 19“ rack and enclosure layout.

The Stainless Steel version is preferred over the chrome-plated version in steel for outdoor applications.

These handles are also available in steel GN425.1 and aluminium GN425.1


Stainless Steel NI

AISI 303 (A1) for d1 = 8, 10

AISI 304 (A2) for d1 = 12, 16

Matt shot-blasted GS

Electro polished EP

Stainless Steel A4 - AISI 316. Matt shot-blasted GS.

Location discs - Stainless Steel AISI 303 (for NI). Stainless Steel AISI 316 L (for A4)
