GN425.1 Cabinet U Handles Offset Steel Stainless Steel zinc plated location discs

Standard Parts for Clamping & Operating & Machine Fixtures > Cabinet, U & Tubular Handles, Gripping Trays > Cabinet U Handles
< Previous Product Next Product >

GN425.1 Cabinet U Shape Handle, Offset

Select Values to Buy:

Tech Spec:



GN425.1 Cabinet U Shape Handle, Offset

These cabinet U handles have an offset shape, which is useful when access is restricted.

They are supplied complete with two location discs, which guarantees a perfect location even with large holes in the cabinet. Handle diameters 8mm to 10mm are supplied with stainless steel location discs, and the handle diameter of 12mm is supplied with zinc die cast, nickel plated location discs.

The chrome plated design is only conditionally suitable for outdoor use. For continual use, the stainless steel design version GN425.1 should be given preference.

GN425.1 in a d1 of 8mm and a length of 55mm is suitable for a 19“ rack and enclosure layout.

Specification

Steel - black, RAL 9005, textured finish SW. Chrome plated CR. Blackened BT

Location discs - d1 = 8 - 10, stainless steel

Location discs - d1 = 12, zinc die casting, nickel plated.

These handles are also available in stainless steel GN425.1 and aluminium GN425.1

RoHS compliant



Select / Deselect Visible Columns

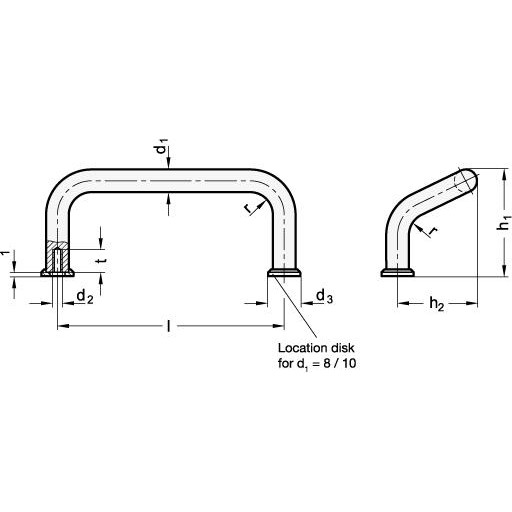

PartCoded1 length (l)Materiald2d3h1h2rtFinishMass

GN425.1-8-55-BT8ST55M412403098BT0.057
GN425.1-8-55-CR8ST55M412403098CR0.057
GN425.1-8-55-SW8ST55M412403098SW0.058
GN425.1-8-64-BT8ST64M412403098BT0.063
GN425.1-8-64-CR8ST64M412403098CR0.062
GN425.1-8-64-SW8ST64M412403098SW0.063
GN425.1-8-88-BT8ST88M412403098BT0.07
GN425.1-8-88-CR8ST88M412403098CR0.07
GN425.1-8-88-SW8ST88M412403098SW0.07
GN425.1-8-96-BT8ST96M412403098BT0.074
GN425.1-8-96-CR8ST96M412403098CR0.074
GN425.1-8-96-SW8ST96M412403098SW0.075
GN425.1-8-100-BT8ST100M412403098BT0.074
GN425.1-8-100-CR8ST100M412403098CR0.076
GN425.1-8-100-SW8ST100M412403098SW0.076
GN425.1-10-88-BT10ST88M51547351112BT0.113
GN425.1-10-88-SW10ST88M51547351112SW0.113
GN425.1-10-100-BT10ST100M51547351112BT0.12
GN425.1-10-100-SW10ST100M51547351112SW0.124
GN425.1-10-120-BT10ST120M51547351112BT0.132
GN425.1-10-120-SW10ST120M51547351112SW0.132
GN425.1-10-180-BT10ST180M51547351112BT0.12
GN425.1-10-180-CR10ST180M51547351112CR0.175
GN425.1-10-180-SW10ST180M51547351112SW0.04
GN425.1-10-200-BT10ST200M51547351112BT0.004
GN425.1-10-200-CR10ST200M51547351112CR0.188
GN425.1-10-200-SW10ST200M51547351112SW0.004
GN425.1-12-125-BT12ST125M6~60441212BT0.222
GN425.1-12-125-CR12ST125M5~60441212CR0.22
GN425.1-12-125-SW12ST125M5~60441212SW0.221
GN425.1-12-160-BT12ST160M5~60441212BT0.251
GN425.1-12-160-CR12ST160M5~60441212CR0.38
GN425.1-12-160-SW12ST160M5~60441212SW0.251
GN425.1-12-200-BT12ST200M5~60441212BT0.295
GN425.1-12-200-CR12ST200M5~60441212CR0.38
GN425.1-12-200-SW12ST200M5~60441212SW0.286
GN425.1-12-250-BT12ST250M5~60441212BT0.339
GN425.1-12-250-CR12ST250M5~60441212CR0.38
GN425.1-12-250-SW12ST250M5~60441212SW0.332
