GN628 (EPB) Cabinet U Shape Handle, Plastic, Reinforced

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Type A - Mounting from the back (threaded blind bore).

Type B - Mounting from the operator's side.

CAD Viewer Technical Data

Prodcut Description

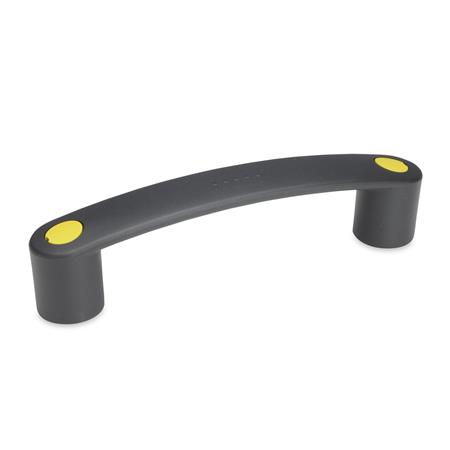

GN628 (EPB) Cabinet U Shape Handle, Plastic.

These glass fibre reinforced handles are strong and robust, and comfortable in use. They are temperature resistant.

The caps for Type A are supplied ready assembled, for Type B they are enclosed loose.

Specification

Plastic, Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 130°C, black-grey, matt, similar RAL 7021

Bush (Type A) - brass

Cap colour (matt): black-grey, RAL 7021 DSG, orange, RAL 2004 DOR,grey, RAL 7035 DGR, yellow, RAL 1021 DGB, blue, RAL 5024 DBL, red, RAL 3000 DRT.

Application Example

In this example, handle GN628 has been used on this tray sealing machine.
