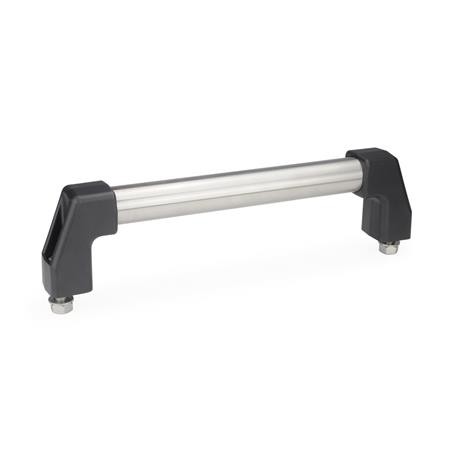

GN667 Tubular Handle, Aluminium or Stainless Steel



Select Values to Buy:

Tech Spec:



GN667 Tubular Handle, Aluminium or Stainless Steel.

These tubular handles are mainly used for handles of oversize lengths, as they can be easily adjusted without further machining. They are made from standard tubing 20 x 1.5 or 30 x 1.5. This makes them extremely versatile.

When longer or special versions are required, an additional shank may be needed; the shanks from GN666.1 may be used for this purpose, for 30 diameter shanks. For handles with longer spans or greater loads, supports are available on request.

Specification

Tube diameter 20 x 1,5 / 30 x 1,5

Aluminium, plastic coated, black, RAL 9005, textured finish SW. Anodized, natural colour EL.

Stainless Steel, AISI 304, ground, matt shiny finish NG.

End pieces - plastic, Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 100°C, black, matt.

Socket head screws DIN 912

Hexagon nuts ISO 4032

Washers DIN 125

Stainless Steel AISI 304

RoHS compliant



Select / Deselect Visible Columns
PartCodeMateriald1l1abd2h1h2l2l3l4l5l6FinishMass

GN667-20-180-SWAL201804828M845582001422515.59.5SW0.16
GN667-20-180-ELAL201804828M845582001422515.59.5EL0.157
GN667-20-180-NGAL201804828M845582001422515.59.5NG0.22
GN667-20-200-SWAL202004828M845582201622515.59.5SW0.165
GN667-20-200-ELAL202004828M845582201622515.59.5EL0.161
GN667-20-200-NGAL202004828M845582201622515.59.5NG0.23
GN667-20-250-SWAL202504828M845582702122515.59.5SW0.182
GN667-20-250-ELAL202504828M845582702122515.59.5EL0.18
GN667-20-250-NGAL202504828M845582702122515.59.5NG0.267
GN667-20-300-SWAL203004828M845583202622515.59.5SW0.194
GN667-20-300-ELAL203004828M845583202622515.59.5EL0.22
GN667-20-300-NGAL203004828M845583202622515.59.5NG0.299
GN667-20-350-SWAL203504828M845583703122515.59.5SW0.25
GN667-20-350-ELAL203504828M845583703122515.59.5EL0.205
GN667-20-350-NGAL203504828M845583703122515.59.5NG0.5
GN667-20-400-SWAL204004828M845584203622515.59.5SW0.196
GN667-20-400-ELAL204004828M845584203622515.59.5EL0.22
GN667-20-400-NGAL204004828M845584203622515.59.5NG0.367
GN667-30-300-SWAL303005738M1060783242543520.514.5SW0.35
GN667-30-300-ELAL303005738M1060783242543520.514.5EL0.34
GN667-30-300-NGAL303005738M1060783242543520.514.5NG0.5
GN667-30-350-SWAL303505738M1060783743043520.514.5SW0.351
GN667-30-350-ELAL303505738M1060783743043520.514.5EL0.365
GN667-30-350-NGAL303505738M1060783743043520.514.5NG0.56
GN667-30-400-SWAL304005738M1060784243543520.514.5SW0.4
GN667-30-400-ELAL304005738M1060784243543520.514.5EL0.385
GN667-30-400-NGAL304005738M1060784243543520.514.5NG0.6
GN667-30-500-SWAL305005738M1060785244543520.514.5SW0.44
GN667-30-500-ELAL305005738M1060785244543520.514.5EL0.5
GN667-30-500-NGAL305005738M1060785244543520.514.5NG0.8
GN667-30-600-SWAL306005738M1060786245543520.514.5SW0.49
GN667-30-600-ELAL306005738M1060786245543520.514.5EL0.475
GN667-30-600-NGAL306005738M1060786245543520.514.5NG0.81
GN667-30-700-SWAL307005738M1060787246543520.514.5SW0.54
GN667-30-700-ELAL307005738M1060787246543520.514.5EL0.55
GN667-30-700-NGAL307005738M1060787246543520.514.5NG0.922
GN667-30-1000-SWAL3010005738M10607810249543520.514.5SW0.7
GN667-30-1000-ELAL3010005738M10607810249543520.514.5EL0.6
GN667-30-1000-NGAL3010005738M10607810249543520.514.5NG1.219
