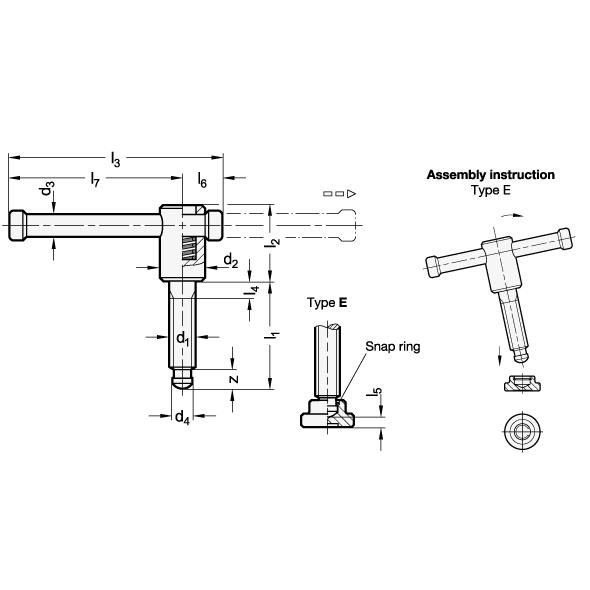

DIN6306 Tommy Screw, Movable Bar





Type D - Without Thrust Pad

Type E - With Thrust Pad DIN6311

Select Values to Buy:

Tech Spec:



DIN 6306 Tommy Screw With Movable Bar.

These tommy screws allow easy adjustment of the screw to the desired torque. The movable bar is held in any position by the pressure spring.

The end caps are pressed on to the bar and thus limit the bar travel, they can also be supplied separately should the bar be plated first. The official DIN standard sheets provides for steel rings at this point.

The thrust point of these screws is designed to be used with or without a thrust pad for clamping. The snap ring is a simple and quick method to connect the thrust pad to the tommy screw.

Instead of thrust pad DIN6311, thrust pad GN6311.1 can be used. If so, the tommy screw and the thrust pad have to be ordered separately.

An optional foot plate is also available, GN6311.3

Specification

Steel - Tensile strength class 5.8 (500 N/mm2), blackened.

Thrust point - hardened.

Bar end caps - Plastic, grey.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1l1d2d3d4l2l3l4l5zTypeMass

DIN6306-M10-40-DSTM104018883280103.68.2D0.086
DIN6306-M10-40-ESTM104018883280103.68.2E0.103
DIN6306-M10-50-DSTM105018883280103.68.2D0.092
DIN6306-M10-50-ESTM105018883280103.68.2E0.109
DIN6306-M12-50-DSTM12502010835100104.58.6D0.144
DIN6306-M12-50-ESTM12502010835100104.58.6E0.177
DIN6306-M12-60-DSTM12602010835100104.58.6D0.151
DIN6306-M12-60-ESTM12602010835100104.58.6E0.184
DIN6306-M16-55-DSTM165524131240120105.310.6D0.287
DIN6306-M16-55-ESTM165524131240120105.310.6E0.346
DIN6306-M16-70-DSTM167024131240120105.310.6D0.308
DIN6306-M16-70-ESTM167024131240120105.310.6E0.367
DIN6306-M16-90-DSTM169024131240120105.310.6D0.32
DIN6306-M16-90-ESTM169024131240120105.310.6E0.359
DIN6306-M20-55-DSTM2055301615.545140105.612.4D0.502
DIN6306-M20-55-ESTM2055301615.545140105.612.4E0.607
DIN6306-M20-70-DSTM2070301615.545140105.612.4D0.532
DIN6306-M20-70-ESTM2070301615.545140105.612.4E0.637
DIN6306-M20-90-DSTM2090301615.545140105.612.4D0.572
DIN6306-M20-90-ESTM2090301615.545140105.612.4E0.677
